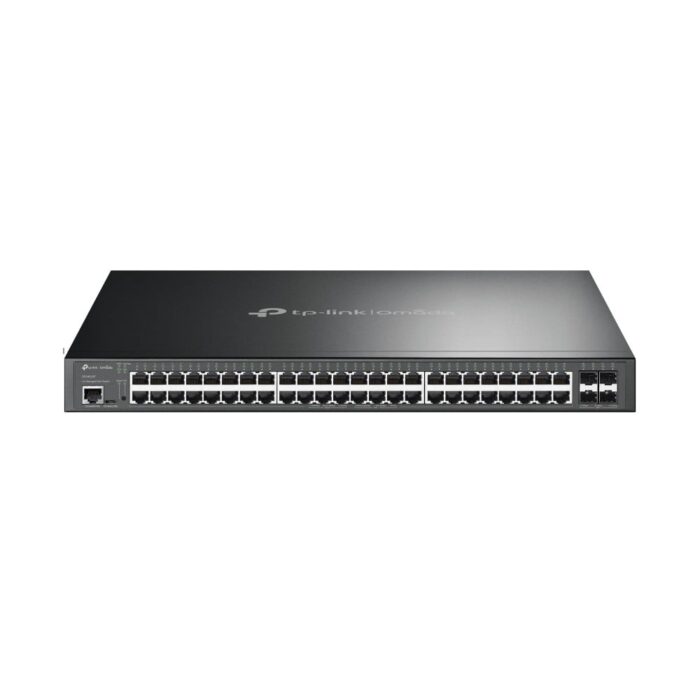

TP-Link SG3452XP JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 48-Port PoE+

The TP-Link JetStream 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch (Model: SG3452XP) is designed to meet the demands of high-performance, high-density networking environments. It features 48 Gigabit Ethernet ports and 4 10GE SFP+ ports, offering substantial bandwidth and flexibility, making it suitable for various network applications. Its robust construction ensures it can easily handle the increasing data traffic of modern networks.

One of the key features of the SG3452XP is its support for Power over Ethernet (PoE+). This allows the switch to directly power devices such as IP cameras, VoIP phones, and wireless access points through network cables. This capability simplifies deployment and significantly reduces installation costs, providing a competitive advantage over traditional networking solutions. The switch complies with a comprehensive set of networking standards, including IEEE 802.1D, IEEE 802.1Q, and IEEE 802.3af, ensuring efficient traffic management and enhanced security.

The TP-Link JetStream switch has an impressive switching capacity of 176 Gbit/s and a MAC address table that can accommodate up to 16,000 entries, excelling in the efficient management of large volumes of data. For ease of management and setup, it includes both RJ-45 and Micro-USB console ports. Its 1U rack-mountable design makes it ideal for fitting into standard server racks, optimizing space in physical network environments while delivering reliable performance.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2+
show more


Quality of Service (QoS) support
Yes
show more


Cloud-managed
Yes
show more


Web-based management
Web-based management
Yes
show more


ARP inspection
Yes
show more


Configuring Location Settings (CLI)
Yes
show more


System event log
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
48
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


SFP+ module slots quantity
4
show more


Console port
RJ-45/Micro-USB
show more


Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


Spanning tree protocol
Yes
show more


Rate limiting
Yes
show more


Head-of-line (HOL) blocking
Yes
show more


Link aggregation
Yes
show more


Broadcast storm control
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
176 Gbit/s
show more


Forwarding rate
130.9 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
12 MB
show more

Security

DHCP features
DHCP client, DHCP relay, DHCP server
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


IP-MAC-Port binding
Yes
show more


BPDU filtering/protection
Yes
show more


Authentication
Auto VLAN, Guest VLAN
show more


Static port security
Yes
show more


MAC address filtering
MAC address filtering
Yes
show more


SSH/SSL support
Yes
show more

Multicast features

Multicast support
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


Reset button
Yes
show more


LED indicators
Yes
show more


Number of fans
Number of fans
3 fan(s)
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (max)
Power consumption (max)
635.7 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
48
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
500 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
2169.2 BTU/h
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
330 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more

Certificates

Certification
CE, FCC, RoHS
show more
