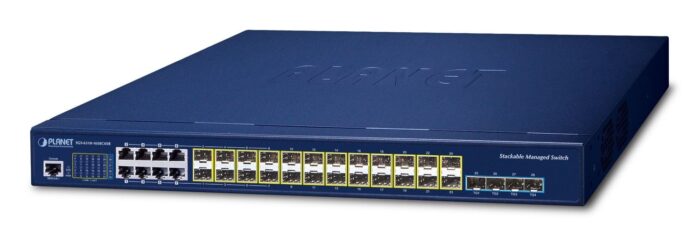

PLANET Layer 3 16-Port 100/1000X SFP Managed L3 10G Ethernet (100/1000/10000) 1U Blue

The PLANET Layer 3 16-Port 100/1000X SFP is a managed network switch that operates at Layer 3. It features 10G Ethernet RJ-45 ports that support speeds of 100/1000/10000 Mbps, with a total of 28 RJ-45 ports available. Additionally, it comes with 8 installed SFP modules and 4 installed SFP+ modules. The switch supports full duplex communication and has a MAC address table capacity of 16,000 entries. Its switching capacity is 128 Gbit/s. The device adheres to various networking standards, including IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, and IEEE 802.1w. It is designed with a 1U form factor for efficient use of space.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
28
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
show more


10G Ethernet (copper) ports quantity
4
show more


Installed SFP modules quantity
Installed SFP modules quantity
8
show more


Installed SFP+ modules quantity
Installed SFP+ modules quantity
4
show more

Network

Networking standards
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


10G support
10G support
Yes
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-learning supported
Yes
show more


MAC address auto-aging supported
Yes
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Spanning tree protocol
Yes
show more


Link aggregation
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
128 Gbit/s
show more


Throughput
128 Gbit/s
show more


Throughput
95.23 Mpps
show more


Forwarding rate
96 Mpps
show more


MAC address table
MAC address table
16000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more

Security

DHCP features
DHCP Option 82, DHCP client, DHCP relay, DHCP server, DHCP snooping
show more


Access Control List (ACL)
Yes
show more


Authentication type
Authentication type
IEEE 802.1x, RADIUS, TACACS+
show more


Authentication
MAC-based authentication, Port-based authentication
show more

Design

Stackable
Stackable
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Blue
show more


LED indicators
Yes
show more


Number of fans
Number of fans
2 fan(s)
show more

Power

Power source
Power source
AC
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
38 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
280 mm
show more


Height
Height
44 mm
show more


Weight
Weight
4 kg
show more

Certificates

Certification
FCC Part 15 Class A, CE
show more
