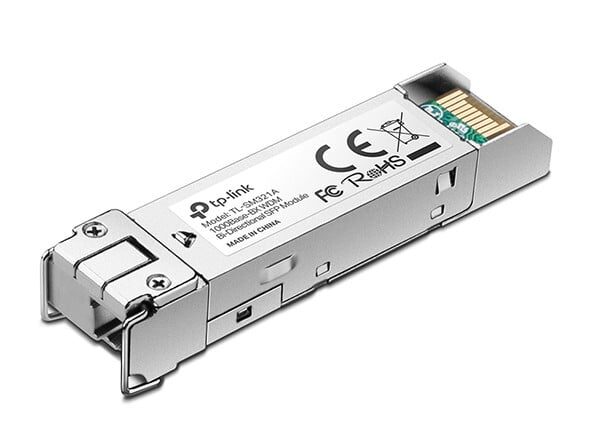

TP-Link SM321A-2 TL-SM321A-2 Network Transceiver Module Fiber Optic 1250 Mbit/s SFP

The TP-Link SM321A-2 is an innovative network relay module designed to deliver exceptional data transfer speeds of up to 1250 Mbit/s. Developed by the esteemed networking equipment manufacturer TP-Link, this model merges sturdy construction with state-of-the-art technology, making it a dependable choice for various networking requirements.

This SFP module uses fiber optic technology, providing significantly broader data transfer capabilities compared to traditional wired options. A standout feature is its Hot Pluggable technology, which allows for installation and replacement without shutting down the entire network system, thereby enhancing operational efficiency.

The TP-Link SM321A-2 emphasizes stability and reliability, delivering excellent performance even in variable temperature conditions ranging from -40 to +85 degrees Celsius. By utilizing the single-mode transmission standard LX/LH, the device's operational range is extended up to 10 km, making it an ideal solution for businesses and institutions with extensive territorial coverage. Offering compatibility with most market devices, the installation process is straightforward and hassle-free.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
1250 Mbit/s
show more


Interface type
SFP
show more


Single-mode fiber (SMF) supported
Yes
show more


Multi-mode fiber (MMF) supported
No
show more


Fiber optic connector
Fiber optic connector
LC (UPC)
show more


Fiber cable diameters supported (core/cladding)
9/125 µm
show more


SFP transceiver standard
BX
show more


Maximum transfer distance
Maximum transfer distance
1000 m
show more


Tx wavelength (max)
1550 nm
show more


Rx wavelength (max)
1310 nm
show more


Networking standards
Networking standards
IEEE 802.3z
show more


Fiber ethernet cabling technology
1000BASE
show more


Wavelength-division multiplexing (WDM)
Yes
show more

Features

Product colour
Product colour
Metallic
show more


Hot-swap
Yes
show more

Power

Input voltage
Input voltage
3.3 V
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CE, FCC
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 80 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Packaging content

Quantity per pack
1 pc(s)
show more

Packaging data

Package width
Package width
81.5 mm
show more


Package depth
Package depth
122.5 mm
show more


Package height
Package height
38.5 mm
show more


Package weight
Package weight
60 g
show more

Logistics data

Harmonized System (HS) code
85369010
