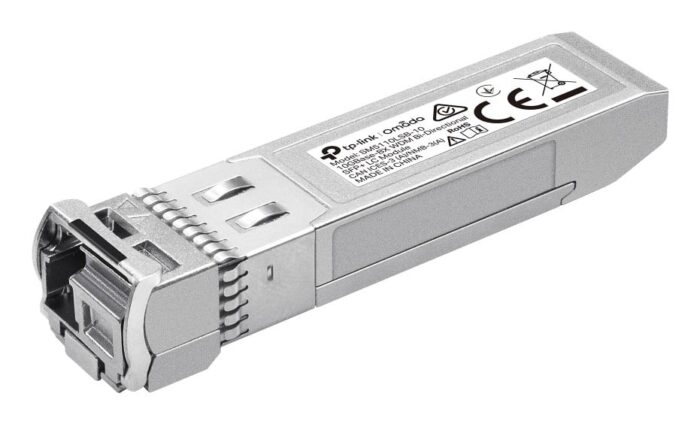

TP-Link SM5110LSB-10 10GBase-BX WDM Bi-Directional SFP+ LC Module

The TP-Link Omada SM5110LSB-10 is a high-performance SFP transceiver with a fiber optic type. It boasts a maximum data transfer rate of 10312 Mbit/s and features an SFP+ interface. The product comes in a sleek silver color and operates at an input voltage of 3.3 V. It meets various compliance standards including CE, the Federal Communications Commission (FCC), and RoHS. Its dimensions are compact with a width of 57 mm, a depth of 14 mm, and a height of 12 mm.

Performance

SFP transceiver type
Fiber optic
show more


Maximum data transfer rate
Maximum data transfer rate
10312 Mbit/s
show more


Interface type
SFP+
show more


Single-mode fiber (SMF) supported
Yes
show more


Fiber optic connector
Fiber optic connector
LC (UPC)
show more


Fiber cable diameters supported (core/cladding)
9/125 µm
show more


Maximum transfer distance
Maximum transfer distance
10000 m
show more


Tx wavelength (max)
1270 nm
show more


Rx wavelength (max)
1330 nm
show more


Networking standards
Networking standards
IEEE 802.3ae
show more


Digital Diagnostics Monitoring (DDM)
Yes
show more

Features

Product colour
Product colour
Silver
show more


Hot-swap
Yes
show more

Power

Input voltage
Input voltage
3.3 V
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
show more

Operational conditions

Minimum operating temperature
0 °C
show more


Maximum operating temperature
70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 85 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
57 mm
show more


Depth
Depth
14 mm
show more


Height
Height
12 mm
show more

Packaging content

Quantity per pack
1 pc(s)
show more


Manual
Yes
