Set Hybrid 10kW with Inverter SMA – STP10.0-3SE-40, Energy Storage BYD HVS 10.2, and 23 Jinko N-type 445Wp

Product Description: Hybrid Set 10.35 kWp featuring JINKO 445Wp N-type modules, an SMA Hybrid Inverter STP10.0-3SE-40, and BYD HVS 10.2 kWh energy storage.

Set Features:

The SMA Hybrid Inverter STP10.0-3SE-40 (three-phase) comes with a backup power function, two MPPT strings, Wi-Fi and Ethernet communication, and a 5-year product warranty.

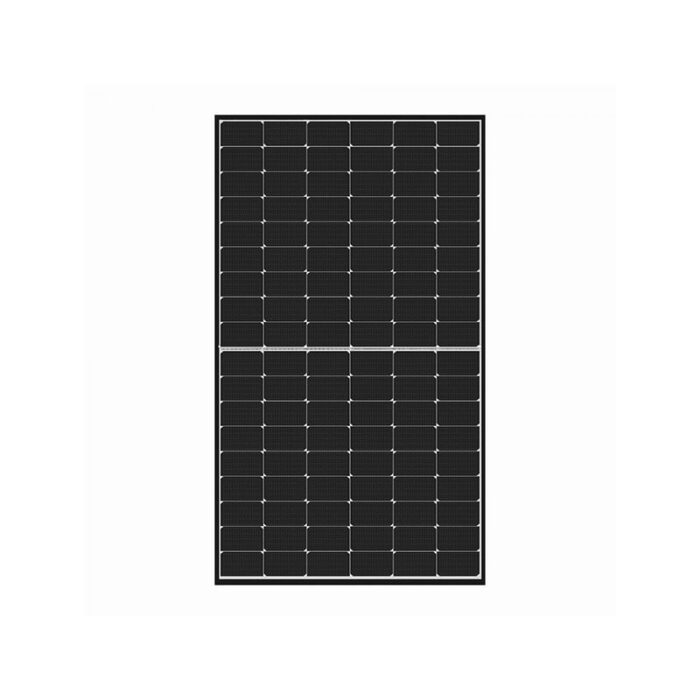

The photovoltaic setup includes 23 JINKO JKM445N-54HL4R-V-F5_JK03M modules, renowned among module manufacturers globally. They utilize the latest N-type silicon technology and offer a module efficiency of 22.27%. They perform well in low light and feature an aesthetic black frame with a white backsheet, with high resistance to salt mist and ammonia. The modules come in compact dimensions of 1762x1134x30 mm and include a 15-year product warranty along with a 30-year performance guarantee.

The BYD HVS 10.2 energy storage system is known for safety and reliability using LFP cells. It is expandable to five batteries in one package, with a maximum capacity of 12.8 kWh. It offers a quick Plug&Play installation compatible with Fronius and SMA hybrid inverters. The storage system includes monitoring of key battery parameters and a 10-year warranty on both product and performance.

The HM-20 energy meter is compatible with SMA inverters, providing a view of energy production and consumption. It is configurable and viewable through an app, with reliable wired RS485 communication with the inverter, and comes with a 2-year warranty.
