Set Hybrid 10kW + Inverter SMA – STP10.0-3SE-40 + Energy Storage BYD HVS 10.2 + 18x Jinko Bifacial 575Wp

Product Description:

Presenting the Hybrid Set 10 kWp featuring JASolar 575Wp modules, an SMA STP10.0-3SE-40 hybrid inverter, and a BYD HVS 10.2 kWh energy storage unit.

Set Specifications:

1. SMA Hybrid Inverter STP10.0-3SE-40 (3-phase):
– Offers a backup power function
– Includes 2 MPPT strings
– Equipped with Wi-Fi and Ethernet communication
– Comes with a 5-year product warranty

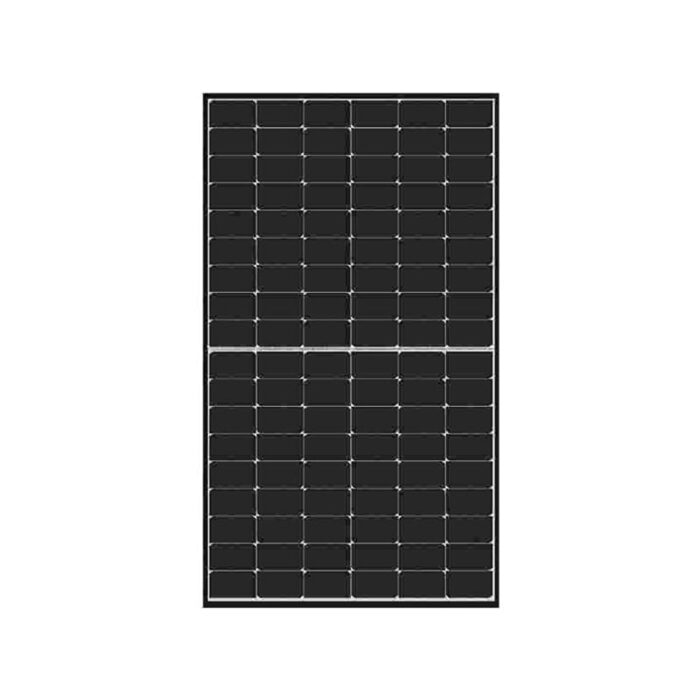

2. 18 JINKO JKM575N-72HL4-BDV Photovoltaic Modules:
– Manufactured by a leading solar cell and module producer
– Features N-Type technology
– Achieves module efficiency of 22.26%
– Delivers higher output power
– Designed with a silver frame
– Incorporates SMBB technology
– Dimensions: 2278x1134x30mm
– Offers a 15-year product warranty and a 25-year performance warranty

3. BYD HVS 10.2 Energy Storage:
– Ensures safety and reliability with LFP cells
– Expandable to a maximum of 12.8 kWh with up to 5 battery units
– Facilitates quick Plug and Play installation with Fronius and SMA hybrid inverters
– Allows monitoring of key battery parameters
– Provides a 10-year warranty on product and performance

4. HM-20 Energy Meter:
– Compatible with SMA inverters
– Allows monitoring of energy production and consumption
– Offers configuration and viewing through an app
– Ensures reliable, wired RS485 communication with the inverter
– Comes with a 2-year warranty
