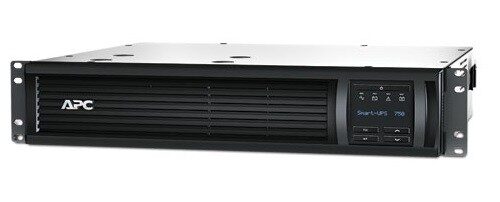

APC SMT750RM2UNC Uninterruptible Power Supply (UPS) Line-Interactive 0.75 kVA 500 W 6 AC Outlets

The APC SMT750RM2UNC is a Line-Interactive uninterruptible power supply (UPS) with an output power capacity of 0.75 kVA and an output power of 500 watts. It features six NEMA 5–15R AC outlets and uses a NEMA L5-15P power plug. The UPS utilizes sealed lead acid (VRLA) battery technology with a capacity of 168 VAh and a maximum battery life of up to 5 years. Designed in a black, 2U rackmount form factor, it fits neatly into standard equipment racks. It meets various compliance standards and certifications, including RoHS, CSA, FCC Part 15 Class A, UL 1778, and REACH.

Features

UPS topology
UPS topology
Line-Interactive
show more


Output power capacity
Output power capacity
0.75 kVA
show more


Output power
Output power
500 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
75 V
show more


Input operation voltage (max)
Input operation voltage (max)
154 V
show more


Input frequency
Input frequency
50/60 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
120 V
show more


Output operation voltage (max)
Output operation voltage (max)
120 V
show more


Automatic Voltage Regulation (AVR)
Yes
show more


Surge energy rating
Surge energy rating
459 J
show more


Emergency Power Off (EPO)
Yes
show more


Noise level
Noise level
42 dB
show more


Surge protection
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
show more


Auto-restart
Yes
show more

Ports & interfaces

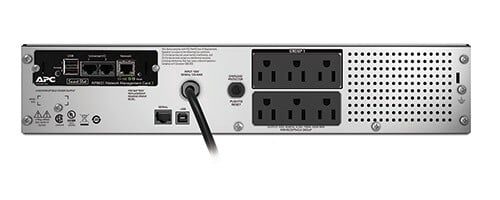

AC outlet types
AC outlet types
NEMA 5–15R
show more


Power plug
Power plug
NEMA L5-15P
show more


AC outlets quantity
AC outlets quantity
6 AC outlet(s)
show more


USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RJ-45
show more


Cabling technology
Cabling technology
10/100Base-T
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery capacity
168 VAh
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
3 h
show more


Hot-swap battery
Yes
show more


Automatic battery test
Yes
show more


Cold start
Yes
show more

Design

Form factor
Form factor
Rackmount
show more


Rack capacity
Rack capacity
2U
show more


Cable length
Cable length
2.44 m
show more


Cooling type
Cooling type
Active
show more


Product colour
Product colour
Black
show more


Display type
Display type
LED
show more


LED indicators
Status
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 45 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 300 m
show more

Packaging content

Cables included
RS-232
show more


Manual
Yes
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CSA, FCC Part 15 Class A, UL 1778, REACH
show more

Weight & dimensions

Width
Width
432 mm
show more


Depth
Depth
406 mm
show more


Height
Height
89 mm
show more


Weight
Weight
71.2 kg
show more

Packaging data

Software CD
Yes
show more


Resource CD
Yes
show more


Package width
Package width
546 mm
show more


Package depth
Package depth
584 mm
show more


Package height
Package height
241 mm
show more


Package weight
Package weight
21.2 kg
show more

Logistics data

Products per pallet
Products per pallet
16 pc(s)
show more
