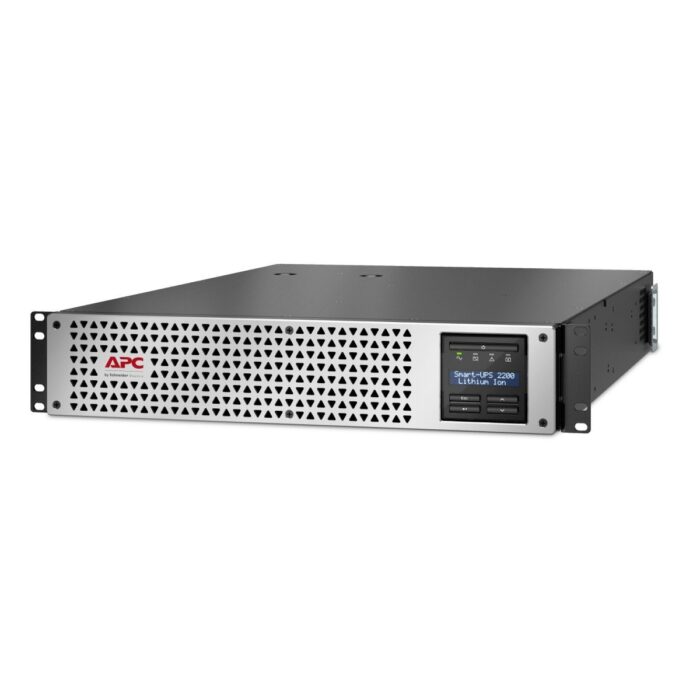

APC Smart-UPS Lithium-Ion 2200VA 230V with SmartConnect Port

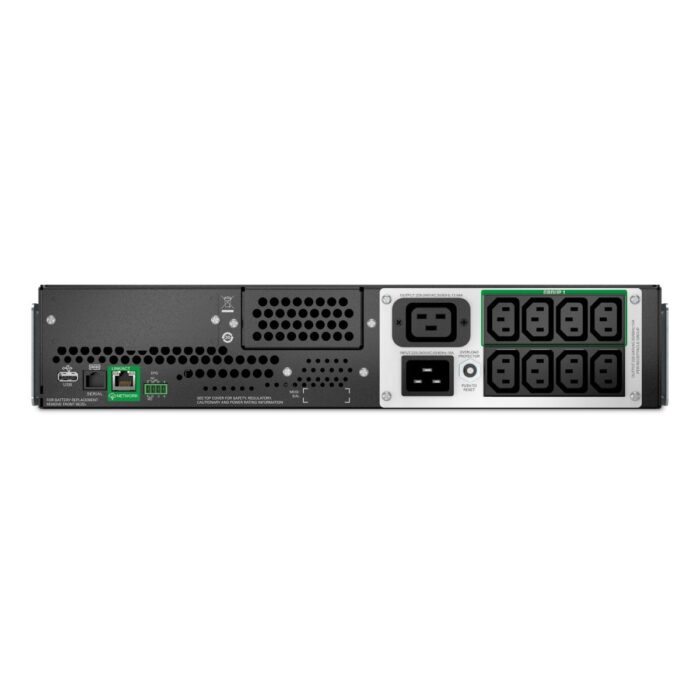

The APC Smart-UPS Li-ion SMTL2200RMI2UC is a 2200VA, 2U rackmount unit designed for efficient power management. It features eight C13 and one C19 output connections. This UPS utilizes a line-interactive topology and offers an output power capacity of 2.2 kVA and an output power of 1980W. It includes ten AC outlets with both C13 and C19 couplers available and a serial interface via RJ-45. The unit employs sealed lead-acid (VRLA) battery technology, providing a maximum battery life of up to five years and a recharge time of approximately three hours. The UPS can be configured as either a rackmount or tower unit and comes in a black and grey color scheme. It occupies 2U rack space. This product holds several compliance certificates, including CE, GS mark, RoHS, and VDE, and additional certifications such as IRAM and RCM.

Features

UPS topology
UPS topology
Line-Interactive
show more


Output power capacity
Output power capacity
2.2 kVA
show more


Output power
Output power
1980 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
151 V
show more


Input operation voltage (max)
Input operation voltage (max)
302 V
show more


Input frequency
Input frequency
50/60 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Output frequency
50/60 Hz
show more


Automatic Voltage Regulation (AVR)
Yes
show more


Surge energy rating
Surge energy rating
375 J
show more


Response time
Response time
6 ms
show more


Heat dissipation
Heat dissipation
215 BTU/h
show more


Number of input phases
1
show more


Number of output phases
1
show more


Output voltage Total Harmonic Distortion (THD)
5%
show more


Noise level
Noise level
55 dB
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Auto-restart
Yes
show more


Power source type
Power source type
AC
show more

Ports & interfaces

AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


AC outlets quantity
AC outlets quantity
10 AC outlet(s)
show more


Number of output IEC jumpers
3
show more


USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RJ-45
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
3 h
show more


Hot-swap battery
Yes
show more


Automatic battery test
Yes
show more


Cold start
Yes
show more

Design

Form factor
Form factor
Rackmount/Tower
show more


Rack capacity
Rack capacity
2U
show more


Cable length
Cable length
2 m
show more


Product colour
Product colour
Black, Grey
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 45 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3048 m
show more


Non-operating altitude
0 – 15240 m
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
CE, GS mark, RoHS, VDE
show more


Certification
IRAM, RCM
show more

Packaging content

Rack mount kit
Yes
show more


Cables included
USB cable
show more

Weight & dimensions

Width
Width
432 mm
show more


Depth
Depth
683 mm
show more


Height
Height
86 mm
show more


Weight
Weight
42.3 kg
show more

Packaging data

Package width
Package width
980 mm
show more


Package depth
Package depth
600 mm
show more


Package height
Package height
254 mm
show more


Package weight
Package weight
49.7 kg
show more

Other features

Input connection type
Input connection type
BS1363A British, IEC 320 C20, Schuko CEE 7 / EU1-16P
show more


Nominal input voltage
Nominal input voltage
230 V
show more


Nominal output voltage
Nominal output voltage
230 V
show more
