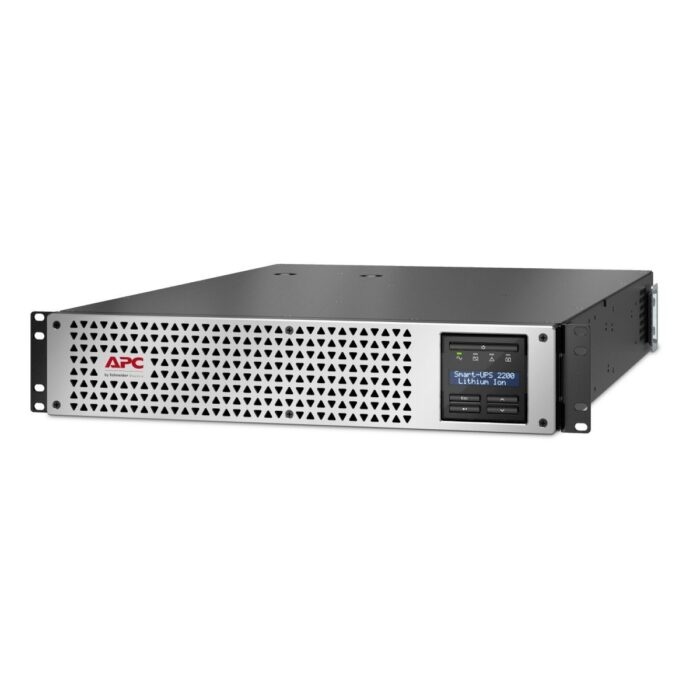

APC Smart-UPS 2200VA Lithium-Ion with SmartConnect Port and NMC

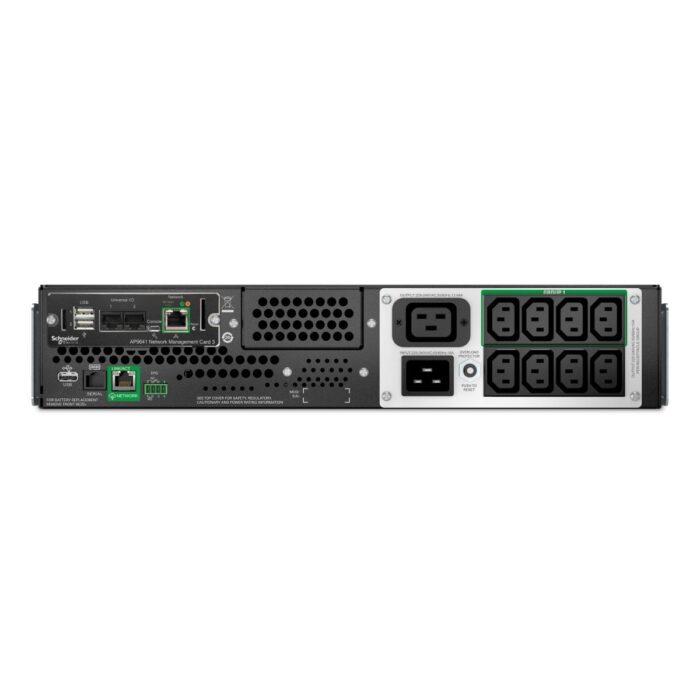

The APC Smart-UPS Li-ion model SMTL2200RMI2UCNC features eight C13 and one C19 outlet and is designed for rackmount installation with a 2U form factor. It includes SmartConnect and Network Management Card (NMC) capabilities. The device offers a line-interactive UPS topology with an output power capacity of 2.2 kVA and a maximum output power of 1980 watts. The unit is equipped with C13 and C19 couplers for AC outlets, and a C20 coupler for the power plug, totaling nine AC outlets. It utilizes lithium-ion (Li-Ion) battery technology with a recharge time of 2 hours. The product can be used in either rackmount or tower configurations and comes in a black and grey color scheme. It supports a 2U rack capacity and complies with RoHS standards.

Features

UPS topology
UPS topology
Line-Interactive
show more


Output power capacity
Output power capacity
2.2 kVA
show more


Output power
Output power
1980 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
160 V
show more


Input operation voltage (max)
Input operation voltage (max)
286 V
show more


Input frequency
Input frequency
50/60 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Output frequency
50/60 Hz
show more


Automatic Voltage Regulation (AVR)
Yes
show more


Surge energy rating
Surge energy rating
739 J
show more


Response time
Response time
6 ms
show more


Crest factor
3:1
show more


Emergency Power Off (EPO)
Yes
show more


Noise level
Noise level
55 dB
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more

Ports & interfaces

AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Power plug
Power plug
C20 coupler
show more


AC outlets quantity
AC outlets quantity
9 AC outlet(s)
show more


USB port
USB port
Yes
show more


Serial interface
Yes
show more


Emergency Power Off (EPO) connector
Yes
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Lithium-Ion (Li-Ion)
show more


Battery recharge time
Battery recharge time
2 h
show more


Hot-swap battery
Yes
show more


Automatic battery test
Yes
show more

Design

Form factor
Form factor
Rackmount/Tower
show more


Rack capacity
Rack capacity
2U
show more


Product colour
Product colour
Black, Grey
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 45 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3048 m
show more


Non-operating altitude
0 – 7620 m
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
RoHS
show more

Packaging content

Rack mount kit
Yes
show more


Cables included
RJ-45, USB cable
show more

Weight & dimensions

Width
Width
432 mm
show more


Depth
Depth
683 mm
show more


Height
Height
86 mm
show more


Weight
Weight
33.3 kg
show more

Packaging data

Package width
Package width
600 mm
show more


Package depth
Package depth
980 mm
show more


Package height
Package height
458 mm
show more


Package weight
Package weight
41.5 kg
show more

Other features

Nominal input voltage
Nominal input voltage
230 V
show more


Nominal output voltage
Nominal output voltage
230 V
show more
