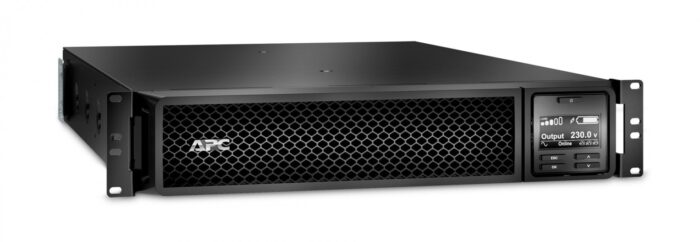

APC SRT2200RMXLI-NC Uninterruptible Power Supply UPS Double-Conversion Online 2.2 kVA 1980 W 12 AC Outlets

Introducing the APC Smart-UPS On-Line SRT2200RMXLI-NC, a robust power backup solution with a capacity of 2200VA, featuring eight C13 and two C19 outlets, designed for rack mounting. This UPS utilizes double-conversion (online) topology and provides an output power capacity of 2.2 kVA and an output power of 1980 watts. It includes a variety of AC outlet types, such as C13 and C19 couplers, with a total of 12 AC outlets. The device is equipped with a serial interface type of RJ-45.

The UPS is powered by sealed lead acid (VRLA) battery technology, boasting a battery capacity of 367 VAh and a maximum battery life of 5 years. It is designed in a rackmount form factor and features a sleek black finish. The unit fits a 2U rack capacity.

For peace of mind, the APC Smart-UPS On-Line SRT2200RMXLI-NC adheres to multiple compliance certificates, including RoHS, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, and VDE, ensuring it meets high standards of safety and performance.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
2.2 kVA
show more


Output power
Output power
1980 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
160 V
show more


Input operation voltage (max)
Input operation voltage (max)
275 V
show more


Input frequency
Input frequency
40 – 70 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Surge energy rating
Surge energy rating
340 J
show more


Crest factor
3:1
show more


Emergency Power Off (EPO)
Yes
show more


Output voltage Total Harmonic Distortion (THD)
2%
show more


Noise level
Noise level
55 dB
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more

Ports & interfaces

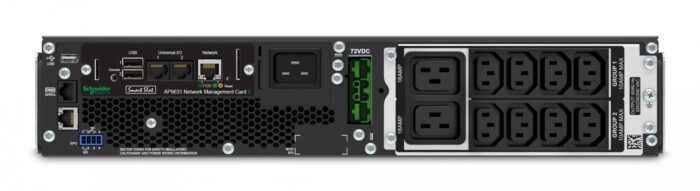

AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


AC outlets quantity
AC outlets quantity
12 AC outlet(s)
show more


Number of output IEC jumpers
2
show more


USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RJ-45
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery capacity
367 VAh
show more


Number of batteries supported
Number of batteries supported
1
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
3 h
show more

Design

Form factor
Form factor
Rackmount
show more


Rack capacity
Rack capacity
2U
show more


Cable length
Cable length
2.44 m
show more


Product colour
Product colour
Black
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 50 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Sustainability

Sustainability certificates
ENERGY STAR, Green Premium
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
show more

Weight & dimensions

Width
Width
432 mm
show more


Depth
Depth
584 mm
show more


Height
Height
85 mm
show more


Weight
Weight
25 kg
show more

Packaging data

Package width
Package width
599 mm
show more


Package depth
Package depth
810 mm
show more


Package height
Package height
246 mm
show more


Package weight
Package weight
34 kg
show more

Logistics data

Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
3656.79
show more


Harmonized System (HS) code
85078000
show more

Other features

Output voltage
230 V
show more
