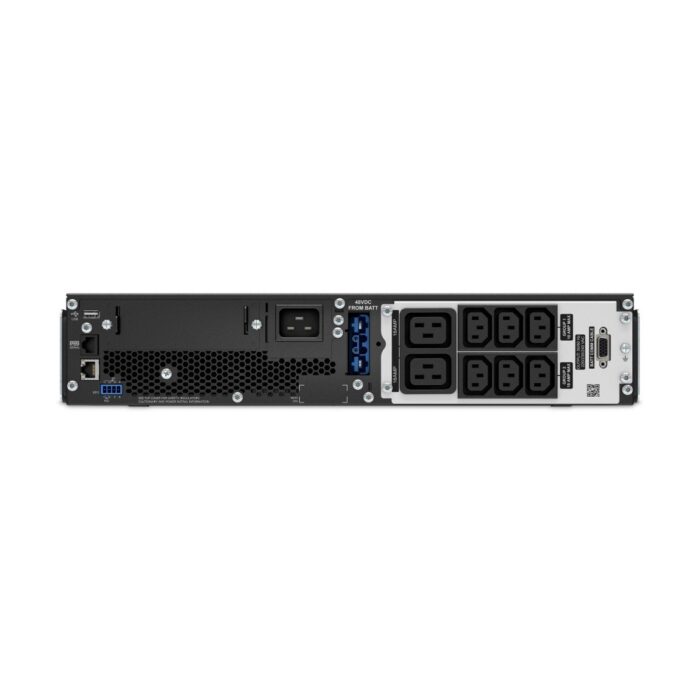

APC Smart-UPS SRT 2200VA 230 V Without Batteries, Used with Lithium I

The APC Smart-UPS On-Line is a high-performance uninterruptible power supply designed for rack-mounted configurations. It offers a powerful output capacity of 2200VA with an actual output power of 1980 watts. The UPS operates using a double-conversion (online) topology, ensuring a continuous and clean power supply. It features a total of eight AC outlets, including six C13 couplers and two C19 couplers, and is equipped with an RJ-45 serial interface. Suitable for IT environments, this unit has a 2U rackmount form factor and comes in a sleek black color. It includes a SmartSlot for enhanced functionality and supports extended runtime setups. However, it does not come with a lithium-ion external battery. The package includes a rail kit for easy installation. The product meets several compliance standards, including CE, EAC, REACH, and RoHS, and comes with a USB cable for connectivity.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
2.2 kVA
show more


Output power
Output power
1980 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
50 V
show more


Input operation voltage (max)
Input operation voltage (max)
230 V
show more


Input frequency
Input frequency
40/70 Hz
show more


Output operation voltage (max)
Output operation voltage (max)
230 V
show more


Output frequency
50/60 Hz
show more


Surge energy rating
Surge energy rating
432 J
show more


Heat dissipation
Heat dissipation
317 BTU/h
show more


Crest factor
3:1
show more


Input current Total Harmonic Distortion (THD)
2%
show more


Noise level
Noise level
50 dB
show more

Ports & interfaces

AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


AC outlets quantity
AC outlets quantity
8 AC outlet(s)
show more


USB port
USB port
Yes
show more


USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more


Serial interface
Yes
show more


Serial interface type
RJ-45
show more


Emergency Power Off (EPO) connector
Yes
show more


SmartSlot
Yes
show more

Design

Form factor
Form factor
Rackmount
show more


Rack capacity
Rack capacity
2U
show more


Cable length
Cable length
1.8 m
show more


Product colour
Product colour
Black
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 50 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3048 m
show more


Non-operating altitude
0 – 15240 m
show more

Packaging content

Cables included
USB cable
show more

Certificates

Compliance certificates
CE, EAC, REACH, RoHS
show more

Weight & dimensions

Width
Width
85 mm
show more


Depth
Depth
508 mm
show more


Height
Height
432 mm
show more


Weight
Weight
22 kg
show more

Packaging data

Package width
Package width
749 mm
show more


Package depth
Package depth
594 mm
show more


Package height
Package height
246 mm
show more


Package weight
Package weight
29.6 kg
show more


Package type
Package type
Box
show more

Logistics data

Warranty period
5 year(s)
show more


Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
3558.01
show more
