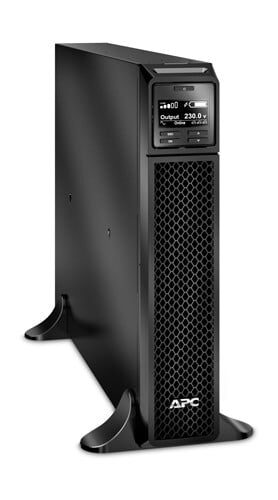

APC SRT3000XLW-IEC Uninterruptible Power Supply (UPS) Double-Conversion Online 3 kVA 2700 W 8 AC Outlets

The APC Smart-UPS On-Line is a 3kVA tower-style uninterruptible power supply that operates at 208V/230V. It is equipped with six C13 and two C19 IEC outlets and features a SmartSlot for extended functionality. The unit is designed for extended runtime and does not include a rail kit. This UPS uses a double-conversion online topology, delivering an output power capacity of 3 kVA and an output power of 2700 watts. It includes C13 and C19 couplers for AC outlets, and a C20 coupler power plug, totaling eight AC outlets. The battery technology utilized is Sealed Lead Acid (VRLA), with a battery capacity of 505 VAh, offering a typical backup time of four minutes at full load. The unit is black, has a form factor of a tower, and includes a 2.44-meter cable. It meets various compliance standards and certifications, including RoHS, CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, and RCM.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
3 kVA
show more


Output power
Output power
2700 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
100 V
show more


Input operation voltage (max)
Input operation voltage (max)
275 V
show more


Input frequency
Input frequency
40/70 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Output frequency regulation
50/60 Hz
show more


Surge energy rating
Surge energy rating
340 J
show more


Efficiency
92.4%
show more


Emergency Power Off (EPO)
Yes
show more


Noise level
Noise level
55 dB
show more


Surge protection
Yes
show more


Web-based management
Web-based management
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Auto-restart
Yes
show more

Ports & interfaces

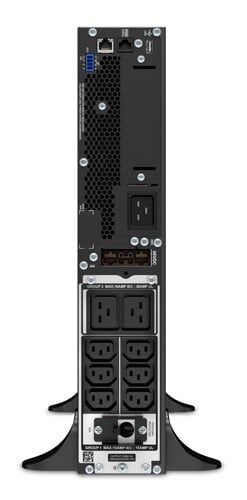

AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Power plug
Power plug
C20 coupler
show more


AC outlets quantity
AC outlets quantity
8 AC outlet(s)
show more


USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RJ-45
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery capacity
505 VAh
show more

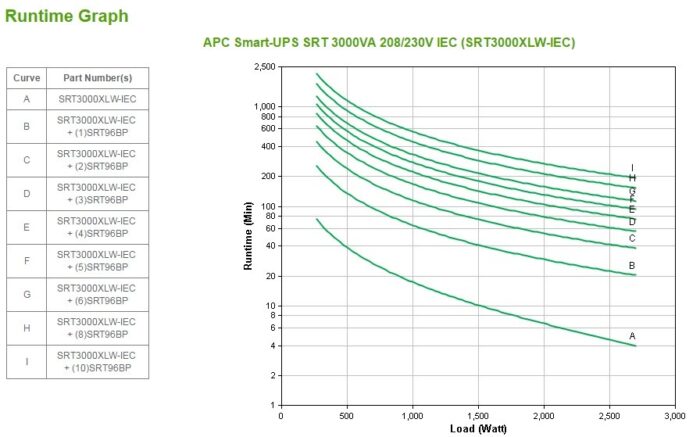

Typical backup time at full load
Typical backup time at full load
4 min
show more


Typical backup time at half load
Typical backup time at half load
11.8 min
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
3 h
show more


Hot-swap battery
Yes
show more


Automatic battery test
Yes
show more


Cold start
Yes
show more

Design

Form factor
Form factor
Tower
show more


Cable length
Cable length
2.44 m
show more


Product colour
Product colour
Black
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 45 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Sustainability

Sustainability certificates
ENERGY STAR
show more

Certificates

Compliance certificates
RoHS
show more


Certification
CE, CE Mark, CSA C22.2 No.107.3-05, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, RCM, UL 1778, VDE, REACH
show more

Packaging content

Cables included
RS-232, USB cable
show more


Quick installation guide
Yes
show more

Weight & dimensions

Width
Width
85 mm
show more


Depth
Depth
635 mm
show more


Height
Height
432 mm
show more


Weight
Weight
31.3 kg
show more

Packaging data

Software CD
Yes
show more


Package width
Package width
599 mm
show more


Package depth
Package depth
871 mm
show more


Package height
Package height
246 mm
show more


Package weight
Package weight
36.7 kg
show more

Logistics data

Products per pallet
Products per pallet
6 pc(s)
show more


Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
4961.68
show more


Harmonized System (HS) code
85078000
show more

Other features

Packaging content
Removable support feet
show more
