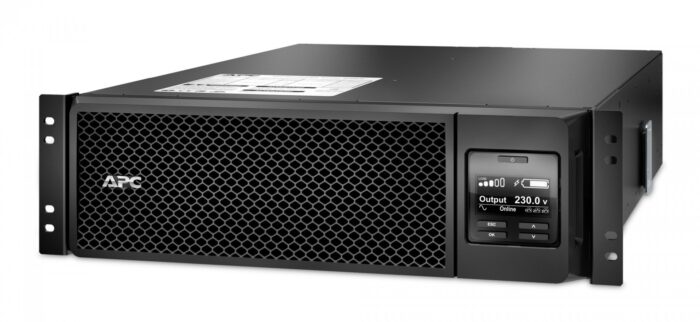

APC Smart-UPS On-Line Double-conversion 5000 VA 4500 W 10 AC outlets SRT5KRMXLI

The APC Smart-UPS On-Line SRT5KRMXLI is a high-performance uninterruptible power supply (UPS) designed for maximum power protection and efficiency. It provides an output power capacity of 5000VA and a power output of 4500W, making it suitable for a range of critical applications. This UPS features a double-conversion online topology, ensuring a consistent and stable power supply.

The unit is rack mountable and requires a 3U rack space, making it ideal for server environments and data centers. It has a black finish, offering a professional and seamless integration into your existing setup.

Equipped with six C13 and four C19 AC outlets, this UPS can accommodate multiple device connections simultaneously. It also includes a hardwired power plug for secure and reliable connections. The onboard Embedded Network Management Card (NMC) allows for easy remote management and monitoring of the UPS system.

The battery technology used is Sealed Lead Acid (VRLA), providing a battery capacity of 845 VAh. At full load, the typical backup time is approximately four minutes. This ensures short-term continuity during power interruptions, allowing for orderly shutdowns or transfer to longer-term backup solutions.

The APC Smart-UPS On-Line SRT5KRMXLI complies with various standards and certifications, including RoHS, REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. These certifications underscore its commitment to safety and environmental responsibility.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
5 kVA
show more


Output power
Output power
4500 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
100 V
show more


Input operation voltage (max)
Input operation voltage (max)
275 V
show more


Input frequency
Input frequency
40 – 70 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Output frequency regulation
50/60 Hz
show more


Surge energy rating
Surge energy rating
480 J
show more


Efficiency
94.1%
show more


Crest factor
3:1
show more


Emergency Power Off (EPO)
Yes
show more


Output voltage Total Harmonic Distortion (THD)
3%
show more


Noise level
Noise level
55 dB
show more


Surge protection
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Auto-restart
Yes
show more

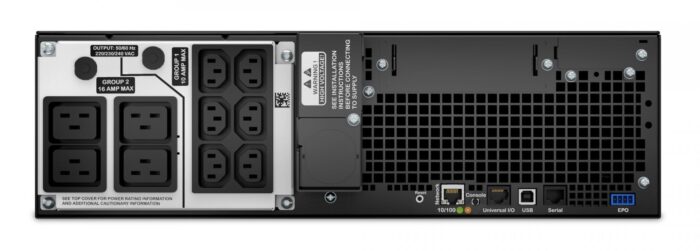

Ports & interfaces

AC outlet types
AC outlet types
C13 coupler, C19 coupler
show more


Power plug
Power plug
Hardwire
show more


AC outlets quantity
AC outlets quantity
10 AC outlet(s)
show more


Number of output IEC jumpers
2
show more


USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RJ-45
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery capacity
845 VAh
show more

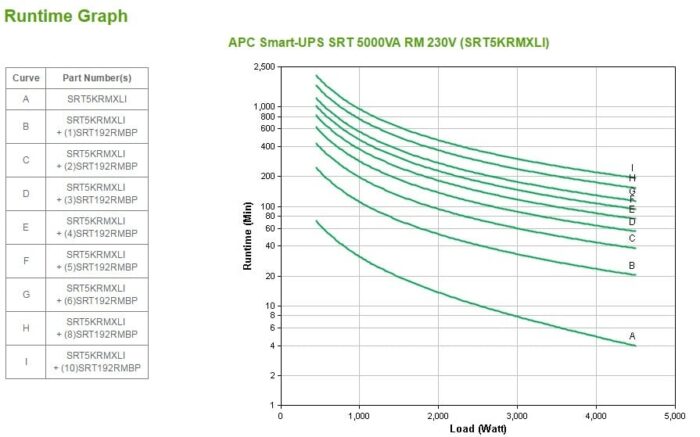

Typical backup time at full load
Typical backup time at full load
4 min
show more


Typical backup time at half load
Typical backup time at half load
11.8 min
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
1.5 h
show more


Hot-swap battery
Yes
show more


Automatic battery test
Yes
show more


Cold start
Yes
show more


Replacement battery cartridge
APCRBC140
show more

Design

Form factor
Form factor
Rackmount
show more


Rack capacity
Rack capacity
3U
show more


Product colour
Product colour
Black
show more

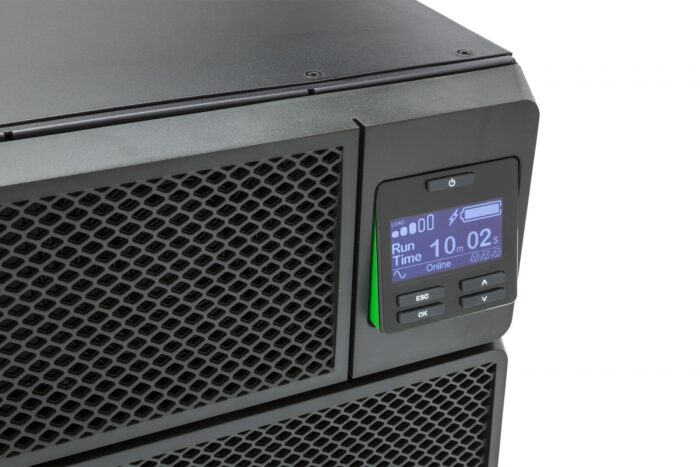

Display type
Display type
LCD
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 45 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Sustainability

Sustainability certificates
ENERGY STAR
show more

Certificates

Compliance certificates
RoHS
show more


Certification
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
show more

Packaging content

Rack mount kit
Yes
show more


Quick installation guide
Yes
show more

Weight & dimensions

Width
Width
432 mm
show more


Depth
Depth
719 mm
show more


Height
Height
130 mm
show more


Weight
Weight
54.4 kg
show more

Packaging data

Temperature sensor
Yes
show more


Warranty card
Yes
show more


Package width
Package width
610 mm
show more


Package depth
Package depth
960 mm
show more


Package height
Package height
330 mm
show more


Package weight
Package weight
66.9 kg
show more

Logistics data

Products per pallet
Products per pallet
6 pc(s)
show more


Total carbon footprint (kg of CO2e)
Total carbon footprint (kg of CO2e)
8408.59
show more


Harmonized System (HS) code
85078000
show more

Other features

Packaging content
Web/SNMP Management Card
show more
