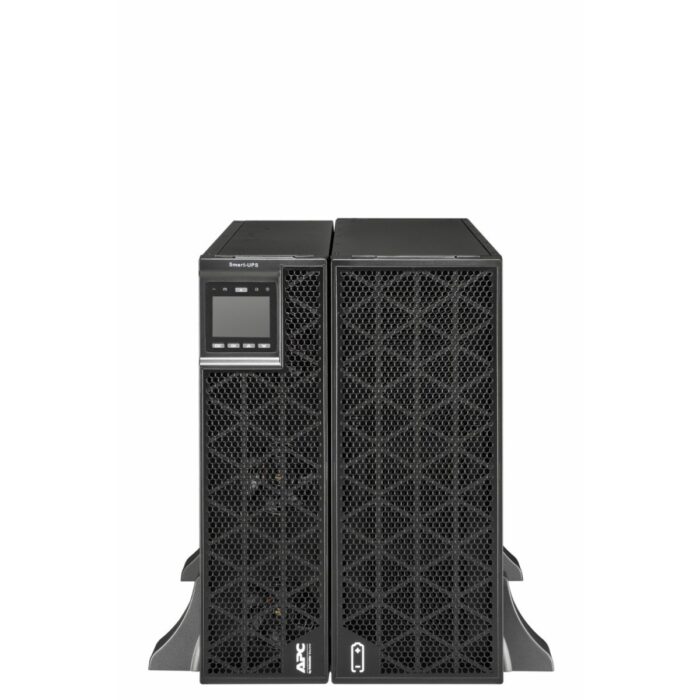

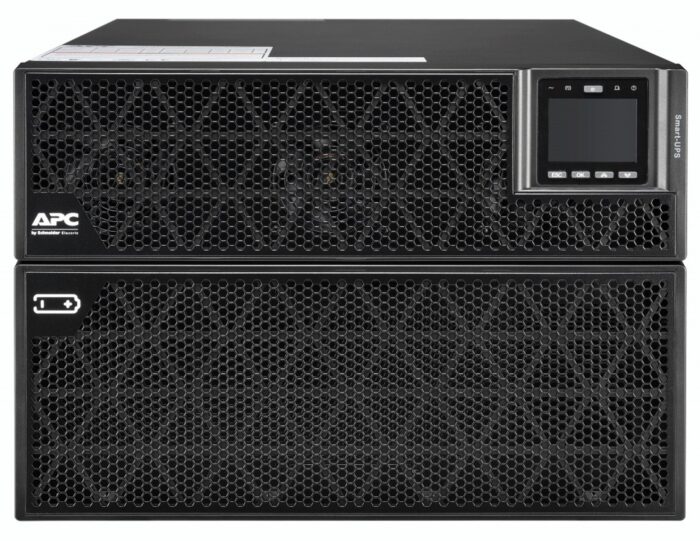

APC Smart-UPS RT 15kVA 230V

The APC Smart-UPS On-Line is a high-capacity uninterruptible power supply with a 15kVA/15kW output, suitable for both rack and tower setups. It supports input voltages ranging from 230V to 415V and utilizes a hardwire connection with a 5-wire (3P+N+E) and 3-wire (1P+N+E) configuration. Equipped with a network card, this unit does not include a rail kit. It operates on a double-conversion (online) topology and provides a consistent 15000W of output power. For connectivity, it features a hardwire 5-wire output and an RS-232 serial interface. The UPS uses sealed lead acid (VRLA) battery technology, with a battery voltage of 192 V and a maximum battery life of up to 5 years. The unit is designed in a black rackmount/tower form factor, occupying a rack space of 7U. An RS-232 cable is included.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
15 kVA
show more


Output power
Output power
15000 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
160 V
show more


Input operation voltage (max)
Input operation voltage (max)
415 V
show more


Input frequency
Input frequency
40/70 Hz
show more


Output operation voltage (max)
Output operation voltage (max)
230 V
show more


Output frequency
50/60 Hz
show more


Output frequency regulation
0.1 Hz
show more


Maximum current
Maximum current
66 A
show more


Number of output phases
3
show more


Efficiency
93%
show more


Crest factor
3:1
show more


Emergency Power Off (EPO)
Yes
show more


Input current Total Harmonic Distortion (THD)
5%
show more


Noise level
Noise level
58 dB
show more


Surge protection
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
show more


Auto-restart
Yes
show more

Ports & interfaces

AC outlet types
AC outlet types
Hard Wire 5-wire (3P + N + E)
show more


Power plug
Power plug
Hardwire
show more


USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RS-232
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery voltage
Battery voltage
192 V
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
4 h
show more


Cold start
Yes
show more

Design

Form factor
Form factor
Rackmount/Tower
show more


Rack capacity
Rack capacity
7U
show more


Product colour
Product colour
Black
show more

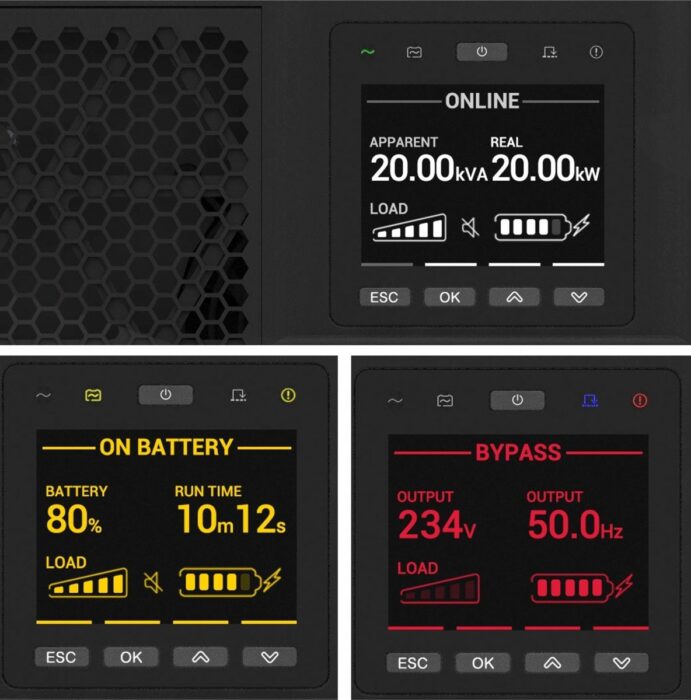

Display type
Display type
LCD
show more


LED indicators
Yes
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-15 – 45 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 2011.68 m
show more


Non-operating altitude
0 – 15240 m
show more

Packaging content

Cables included
RS-232
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
700 mm
show more


Height
Height
306 mm
show more


Weight
Weight
142.5 kg
show more

Packaging data

Package width
Package width
590 mm
show more


Package depth
Package depth
790 mm
show more


Package height
Package height
535 mm
show more


Package weight
Package weight
156.7 kg
show more

Logistics data

Harmonized System (HS) code
85078000
