APC Easy UPS SRV RM 10000VA 230V with RailKit and External Battery Pack

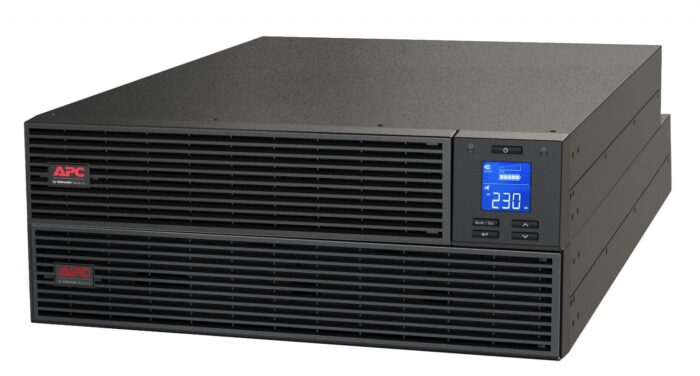

The APC SRV10KRIRK is a powerful and reliable uninterruptible power supply (UPS) featuring double-conversion (Online) topology. It has an output power capacity of 10 kVA and can deliver an output power of 10,000 watts, making it suitable for high-demand applications. The UPS includes an RS-232 serial interface for connectivity and is designed in a convenient rackmount form factor. It is equipped with an easy-to-read LCD display for monitoring and management. The product complies with RoHS standards and is certified under REACH regulations. In terms of dimensions, the unit has a width of 438 mm, a depth of 710 mm, and a height of 173 mm.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
10 kVA
show more


Output power
Output power
10000 W
show more


Input operation voltage (min)
Input operation voltage (min)
220 V
show more


Input operation voltage (max)
Input operation voltage (max)
240 V
show more


Input frequency
Input frequency
40/70 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Surge energy rating
Surge energy rating
600 J
show more


Crest factor
3:1
show more


ECO mode
Yes
show more


Emergency Power Off (EPO)
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Audible alarm modes
Alarm when on battery, Low battery alarm, Overload alarm
show more


Auto-restart
Yes
show more

Ports & interfaces

USB port
USB port
Yes
show more


Serial interface
Yes
show more


Serial interface type
RS-232
show more


Serial ports quantity
Serial ports quantity
1
show more


Emergency Power Off (EPO) connector
Yes
show more


SmartSlot
Yes
show more

Battery

Automatic battery test
Yes
show more

Design

Form factor
Form factor
Rackmount
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 14763.6 m
show more

Packaging content

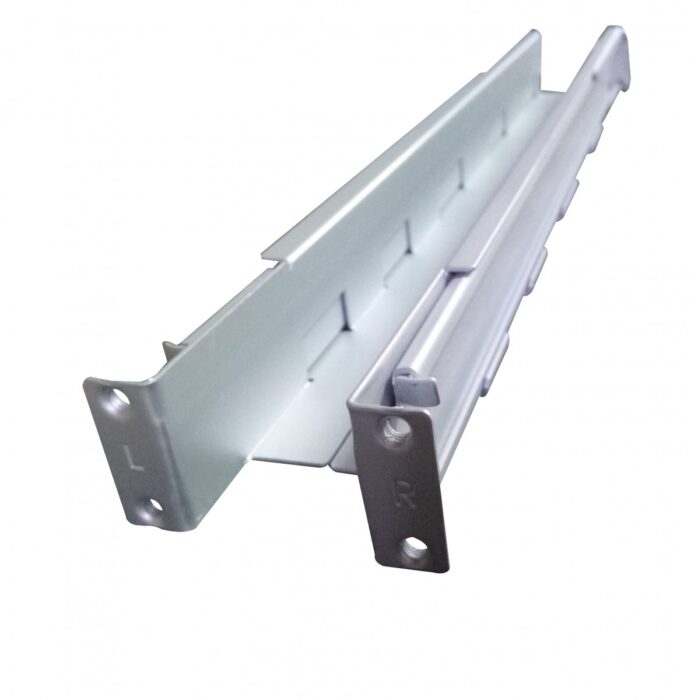

Rack mount kit
Yes
show more


Manual
Yes
show more

Certificates

Compliance certificates
RoHS
show more


Certification
REACH
show more

Weight & dimensions

Width
Width
438 mm
show more


Depth
Depth
710 mm
show more


Height
Height
173 mm
show more


Weight
Weight
68 kg
show more

Logistics data

Harmonized System (HS) code
85078000
show more

Other features

Input connection type
Input connection type
HardWire 3-wire
show more


Nominal input voltage
Nominal input voltage
230 V
show more


Nominal output voltage
Nominal output voltage
230 V
show more
