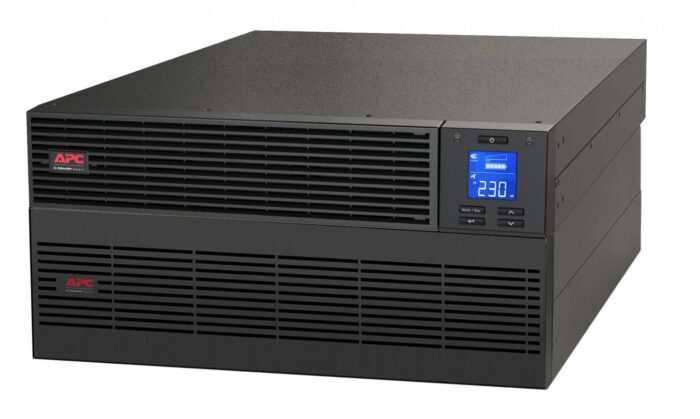

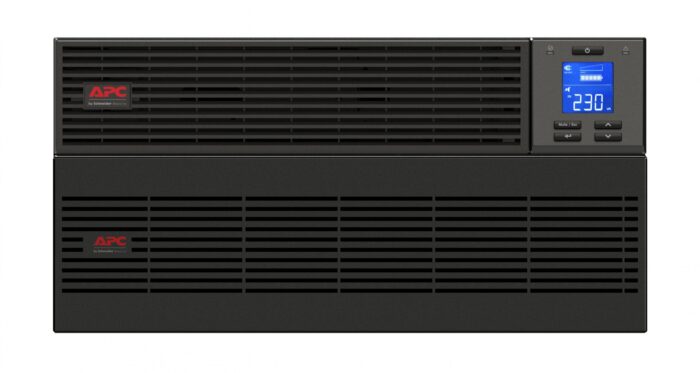

UPS APC Easy SRV6KRIL 6000VA/6000W USB/RS232 Rack 5U

The APC Easy UPS On-Line is a reliable power supply unit designed for critical applications. It offers a power capacity of 6kVA/6kW and is suitable for rack mounting with a 5U size. The unit operates on 230V and requires a hard-wired 3-wire connection (1P+N+E). It features an intelligent card slot and a clear LCD display for user-friendly operation. This UPS supports extended runtime and does not include a rail kit for mounting. With double-conversion online topology, it ensures consistent power quality. The power output is rated at 6,000 watts, backed by sealed lead-acid (VRLA) battery technology, which recharges in approximately 3 hours. The UPS has a sleek black design and the LCD screen provides vital information at a glance. It is certified to CE, IEC 62040-1-1, IEC 62040-1-2, and complies with REACH standards. For convenience, a USB cable is included with the unit.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
6 kVA
show more


Output power
Output power
6000 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
220 V
show more


Input operation voltage (max)
Input operation voltage (max)
240 V
show more


Input frequency
Input frequency
40/70 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Surge energy rating
Surge energy rating
600 J
show more


Crest factor
3:1
show more


ECO mode
Yes
show more


Emergency Power Off (EPO)
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Auto-restart
Yes
show more

Ports & interfaces

USB port
USB port
Yes
show more


Serial interface
Yes
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery recharge time
Battery recharge time
3 h
show more


Automatic battery test
Yes
show more

Design

Form factor
Form factor
Rackmount
show more


Product colour
Product colour
Black
show more


Display type
Display type
LCD
show more


LED indicators
Yes
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 14763.6 m
show more

Packaging content

Cables included
USB cable
show more


Manual
Yes
show more

Certificates

Certification
CE, IEC 62040-1-1, IEC 62040-1-2
REACH
show more

Weight & dimensions

Width
Width
438 mm
show more


Depth
Depth
710 mm
show more


Height
Height
173 mm
show more


Weight
Weight
61 kg
show more

Packaging data

Package weight
Package weight
71 kg
show more

Logistics data

Harmonized System (HS) code
85078000
show more

Other features

Nominal input voltage
Nominal input voltage
230 V
show more


Nominal output voltage
Nominal output voltage
230 V
show more
