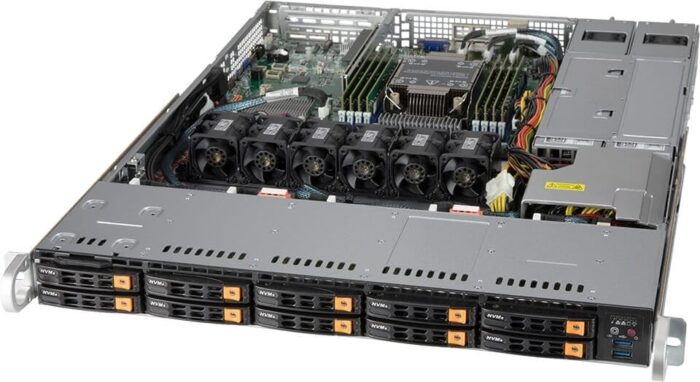

Supermicro UP 1U SSG X12SPO-NTF, CSE-116TS-R860CBP-N10

The Supermicro SSG-110P-NTR10 is equipped with an Intel C621A motherboard chipset and features an LGA 4189 processor socket. It is part of the Intel Xeon Scalable processor family. This product supports DDR4-SDRAM memory types, with a maximum internal memory capacity of 2 TB and a maximum RDIMM memory capacity of 2 TB. It accommodates storage drive sizes of 2.5 inches and M.2, and supports both HDD and SSD storage drive types. The supported storage drive interfaces include PCI Express. For networking, it offers a 10 Gigabit Ethernet interface type and utilizes an Intel X550 LAN controller. Additionally, the product includes PC health monitoring for the CPU, fan, and temperature.

Processor

Built-in processor
Built-in processor
No
show more


Motherboard chipset
Motherboard chipset
Intel C621A
show more


Processor socket
Processor socket
LGA 4189
show more


Processor family
Processor family
Intel® Xeon® Scalable
show more


Number of processors supported
Number of processors supported
1
show more

Memory

Number of DIMM slots
Number of DIMM slots
8
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum internal memory
Maximum internal memory
2 TB
show more


Maximum RDIMM memory
2 TB
show more


Supported RDIMM clock speeds
3200 MHz
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
12
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Number of 2.5" bays
10
show more


Storage drive sizes supported
Storage drive sizes supported
2.5,M.2
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
PCI Express
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet
show more


LAN controller
Intel® X550
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
1
show more

Expansion slots

PCI Express slots version
4.0
show more


PCI Express x16 slots
1
show more

Features

PC health monitoring
CPU, Fan, Temperature
show more


Trusted Platform Module (TPM)
Yes
show more


Trusted Platform Module (TPM) version
2.0
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more

Design

Chassis type
Chassis type
Rack (1U)
show more


LED indicators
Activity, LAN, Power, System
show more


On/off switch
On/off switch
Yes
show more


Fan diameter
Fan diameter
4 cm
show more


Number of fans
Number of fans
6 fan(s)
show more

Power

Power supply
Power supply
860 W
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Number of redundant power supplies supported
2
show more


80 PLUS certification
80 PLUS Platinum
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
11.3 kg
show more


Height
Height
43 mm
show more


Depth
Depth
597 mm
show more


Width
Width
437 mm
show more

Packaging data

Package width
Package width
609.6 mm
show more


Package depth
Package depth
812.8 mm
show more


Package height
Package height
203.2 mm
show more


Package weight
Package weight
17.2 kg
show more
