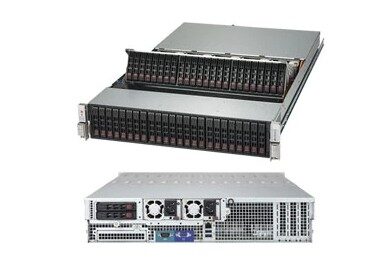

Supermicro SuperStorage 2029P-E1CR48L Intel C621 LGA 3647 (Socket P) Rack 2U

The Supermicro SuperStorage 2029P-E1CR48L features an Intel C621 motherboard chipset and supports the LGA 3647 (Socket P) processor socket. It is compatible with the Intel Xeon Scalable processor family. The system supports DDR4-SDRAM memory types and can accommodate a maximum of 6 TB of internal memory. It supports RDIMM clock speeds of 2133, 2400, 2666, and 2933 MHz. The server supports 2.5" storage drive sizes and is compatible with both Serial ATA III and Serial Attached SCSI (SAS) storage drive interfaces. It offers RAID levels of 0, 1, 5, 6, 10, 50, and 60 for enhanced data protection. For on-board graphics, it features the Aspeed AST2500 graphics card model. The BIOS type is UEFI AMI, providing a modern and user-friendly interface for system management and configuration.

Processor

Built-in processor
Built-in processor
No
show more


Motherboard chipset
Motherboard chipset
Intel® C621
show more


Processor socket
Processor socket
LGA 3647 (Socket P)
show more


Processor family
Processor family
Intel® Xeon® Scalable
show more


Number of processors supported
Number of processors supported
2
show more

Memory

Number of DIMM slots
Number of DIMM slots
24
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum internal memory
Maximum internal memory
6 TB
show more


Supported RDIMM clock speeds
2133,2400,2666,2933 MHz
show more


Memory bus
Memory bus
50 bit
show more


ECC
ECC
Yes
show more

Storage

Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Storage drive sizes supported
Storage drive sizes supported
2.5"
show more


Supported storage drive interfaces
Serial ATA III, Serial Attached SCSI (SAS)
show more


RAID levels
RAID levels
0, 1, 5, 6, 10, 50, 60
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


Serial ports quantity
Serial ports quantity
1
show more


Number of SATA III connectors
Number of SATA III connectors
8
show more

Expansion slots

PCI Express x8 (Gen 3.x) slots
PCI Express x8 (Gen 3.x) slots
1
show more


PCI Express x16 (Gen 3.x) slots
PCI Express x16 (Gen 3.x) slots
2
show more

Technical details

Compliance certificates
RoHS
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


On/off switch
On/off switch
Yes
show more


Reset button
Yes
show more

Power

Number of main power supplies
Number of main power supplies
2
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


AC input frequency
50 – 60 Hz
show more


80 PLUS certification
80 PLUS Titanium
show more

Operational conditions

Safety
Safety
5 – 95
show more


Storage relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
29.5 kg
show more


Height
Height
89 mm
show more


Depth
Depth
684 mm
show more


Width
Width
437 mm
