Supermicro SuperStorage 927R-E2CJB Rack 2U Black

The Supermicro SuperStorage 927R-E2CJB is designed to support 2.5-inch storage drives. It is compatible with Serial Attached SCSI (SAS)-3 interfaces and offers JBOD RAID levels for storage flexibility. The device is equipped with an Aspeed AST2400 on-board graphics card. Its chassis is a 2U rack type, and it comes in black. This model includes LED indicators for HDD activity, power status, and power failure alerts. The power supply is rated at 1200 W, and it supports AC input frequencies between 50 – 60 Hz. The dimensions of the unit are 437 mm in width, 648 mm in depth, and 88 mm in height.

Processor

Built-in processor
Built-in processor
No
show more

Storage

Number of storage drives supported
Number of storage drives supported
24
show more

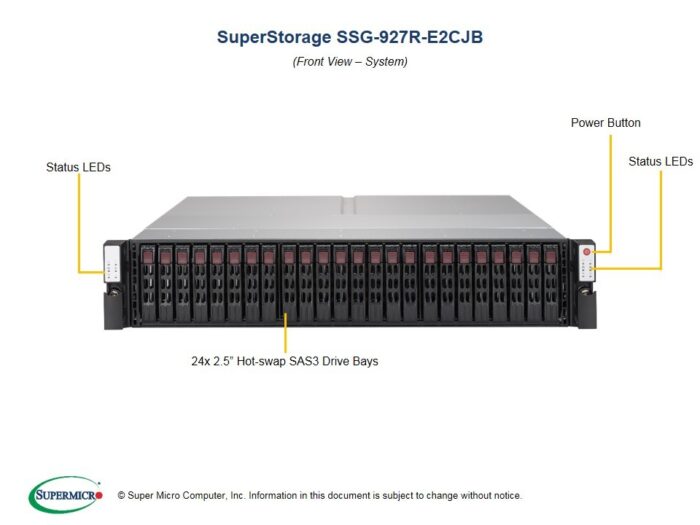

Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Storage drive sizes supported
Storage drive sizes supported
2.5"
show more


Supported storage drive interfaces
Serial Attached SCSI (SAS)-3
show more


RAID levels
RAID levels
JBOD
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2400
show more

Ports & interfaces

IPMI LAN (RJ-45) port
Yes
show more


Number of SAS ports
4
show more

Technical details

Compliance certificates
RoHS
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Black
show more


LED indicators
HDD, Power, Power fail
show more


On/off switch
On/off switch
Yes
show more


Number of fans
Number of fans
8 fan(s)
show more


Fan diameter
Fan diameter
4 cm
show more


Certification
UL/cUL/CB/BSMI/CE/CCC
show more

Power

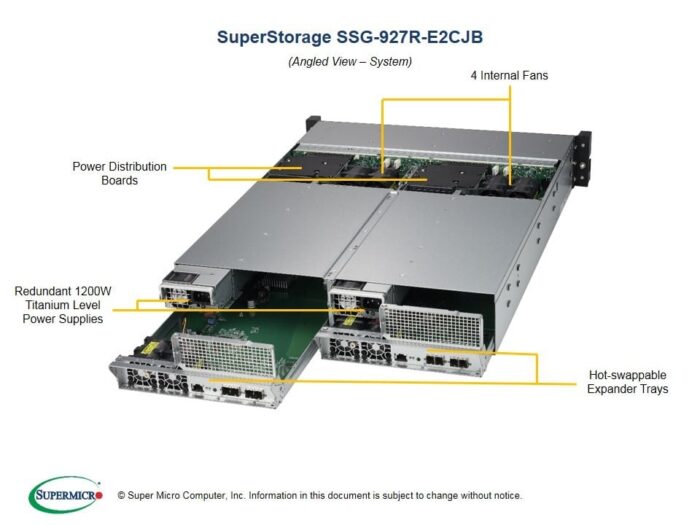

Power supply
Power supply
1200 W
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Number of redundant power supplies installed
2
show more


AC input frequency
50 – 60 Hz
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Height
Height
88 mm
show more


Depth
Depth
648 mm
show more


Width
Width
437 mm
show more
