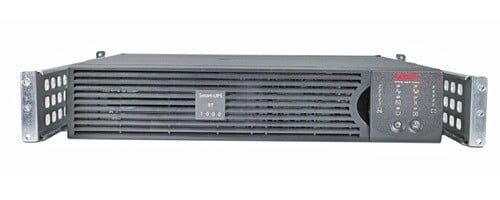

APC Smart-UPS On-Line with 3-Year Warranty, Double-Conversion (Online) 1000 VA 700 W, 6 AC Outlets.

The APC Smart-UPS RT 1000VA is a versatile power protection solution designed for 230V environments. It features a rackmount form factor with a 2U height, making it suitable for integration into server racks. This UPS includes six IEC 60320 outlets and two IEC jumper outlets, and it comes with a network card for enhanced connectivity and management.

The unit employs double-conversion (online) technology, ensuring a continuous and reliable power supply. It boasts an output power capacity of 1 kVA and can deliver up to 700 watts. The AC outlets are type C13 couplers, while the power plug is a C14 coupler, and there are six AC outlets in total.

The UPS uses sealed lead acid (VRLA) battery technology, providing a battery capacity of 328 VAh. It can offer a typical backup time of 32 minutes at half load, ensuring critical systems remain operational during power interruptions.

Designed for flexibility, the UPS can be mounted in a rack or used as a tower. It comes in a sleek black color and occupies 2U of rack space. It adheres to several compliance certificates, including RoHS, and holds certifications such as C-tick, CE, EN 50091-1, EN 50091-2, EN 60950, EN 61000-3-2, GOST, and VDE.

Features

UPS topology
UPS topology
Double-conversion (Online)
show more


Output power capacity
Output power capacity
1 kVA
show more


Output power
Output power
700 W
show more


Waveform
Sine
show more


Input operation voltage (min)
Input operation voltage (min)
100 V
show more


Input operation voltage (max)
Input operation voltage (max)
280 V
show more


Input frequency
Input frequency
50/60 Hz
show more


Output operation voltage (min)
Output operation voltage (min)
220 V
show more


Output operation voltage (max)
Output operation voltage (max)
240 V
show more


Surge energy rating
Surge energy rating
240 J
show more


Efficiency
88.9%
show more


Crest factor
3:1
show more


Noise level
Noise level
50 dB
show more


Surge protection
Yes
show more


Audible alarm(s)
Audible alarm(s)
Yes
show more


Auto-restart
Yes
show more

Ports & interfaces

AC outlet types
AC outlet types
C13 coupler
show more


Power plug
Power plug
C14 coupler
show more


AC outlets quantity
AC outlets quantity
6 AC outlet(s)
show more


Number of output IEC jumpers
2
show more


Serial interface
Yes
show more


Serial interface type
RS-232
show more


SmartSlot
Yes
show more

Battery

Battery technology
Battery technology
Sealed Lead Acid (VRLA)
show more


Battery capacity
328 VAh
show more


Typical backup time at half load
Typical backup time at half load
32 min
show more


Battery life (max)
5 year(s)
show more


Battery recharge time
Battery recharge time
3 h
show more


Hot-swap battery
Yes
show more


Automatic battery test
Yes
show more


Cold start
Yes
show more

Design

Form factor
Form factor
Rackmount/Tower
show more


Rack capacity
Rack capacity
2U
show more


Product colour
Product colour
Black
show more


LED indicators
Status
show more


International Protection (IP) code
International Protection (IP) code
IP20
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-20 – 50 °C
show more


Operating relative humidity (H-H)
0 – 95%
show more


Storage relative humidity (H-H)
0 – 95%
show more


Operating altitude
0 – 3000 m
show more


Non-operating altitude
0 – 15000 m
show more

Certificates

Compliance certificates
RoHS
show more


Certification
C-tick, CE, EN 50091-1, EN 50091-2, EN 60950, EN 61000-3-2, GOST, VDE
show more

Weight & dimensions

Width
Width
432 mm
show more


Depth
Depth
483 mm
show more


Height
Height
85 mm
show more


Weight
Weight
23 kg
show more

Packaging data

Package width
Package width
630 mm
show more


Package depth
Package depth
594 mm
show more


Package height
Package height
286 mm
show more


Package weight
Package weight
27.8 kg
show more

Logistics data

Products per pallet
Products per pallet
4 pc(s)
show more


Harmonized System (HS) code
85078000
show more


Products per master (outer) case
1 pc(s)
show more
