TOTOLINK SW16D Network Switch Unmanaged L2 Fast Ethernet (10/100) White

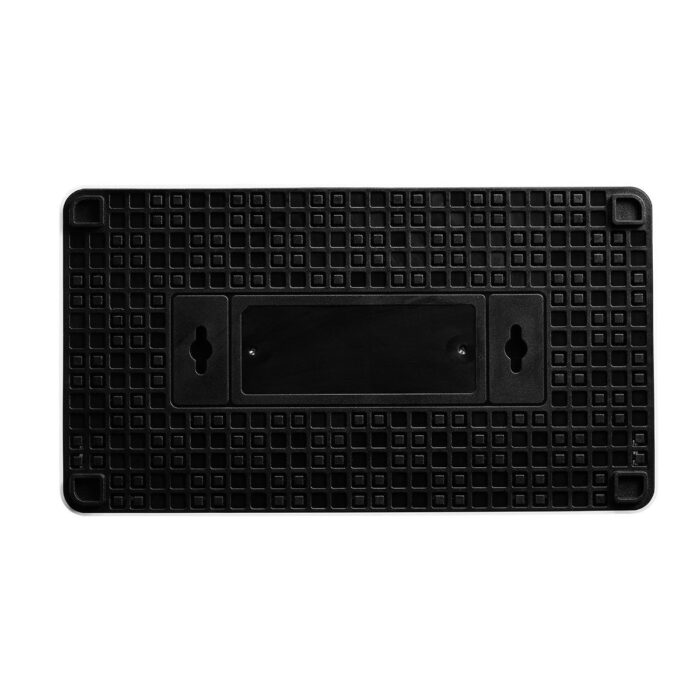

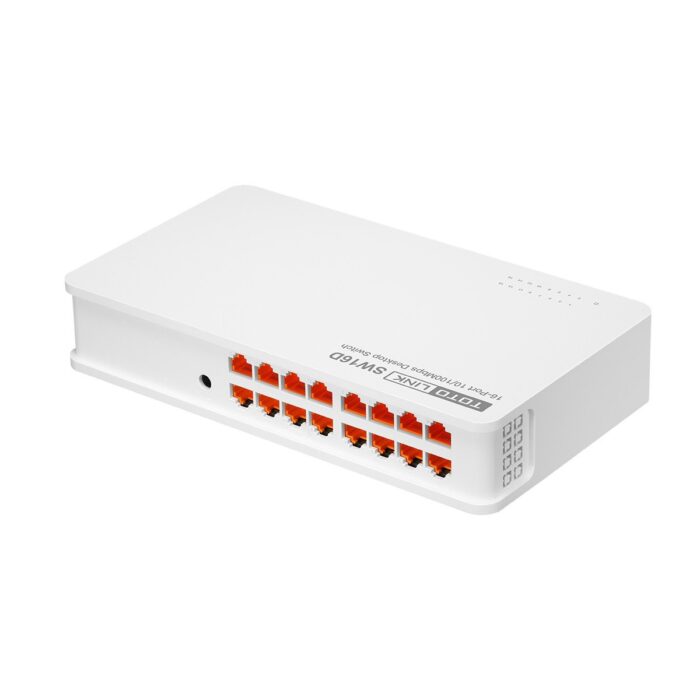

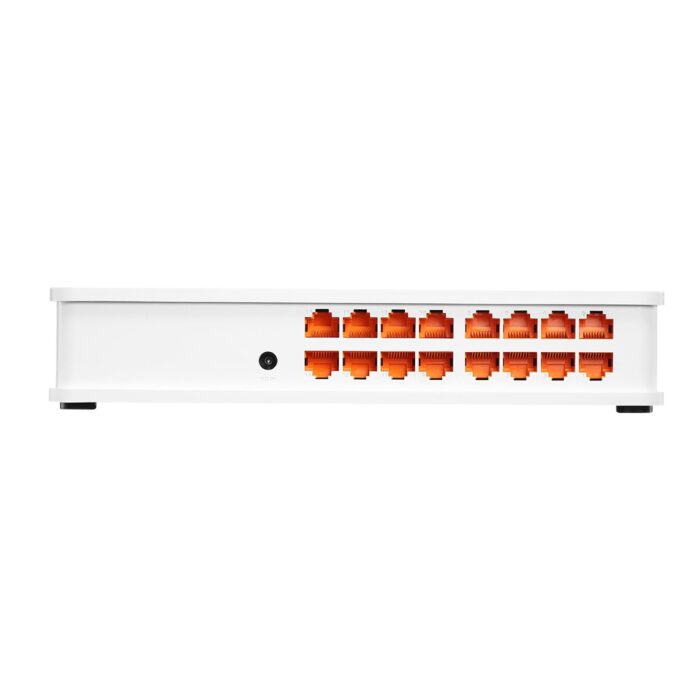

The Totolink SW16D is an unmanaged L2 switch equipped with 16 Fast Ethernet (10/100) ports, making it ideal for enhancing network capabilities in homes, small to medium-sized businesses, and workgroup settings. Each port features auto MDI/MDIX, which eliminates the need for crossover cables and simplifies connectivity. The switch is enclosed in a compact, wall-mountable plastic case, offering flexible installation options. It has a MAC address table with 4096 entries and a switching capacity of 3.2 Gbit/s, allowing it to efficiently handle data transmission and maintain optimal performance across connected devices. The switch complies with networking standards IEEE 802.3, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility with a wide array of network devices. It operates on a 9V DC input voltage, using a DC-in jack for the power connector. The design is energy-efficient, reducing power consumption by automatically disabling unused ports, thereby extending the product's lifespan and conserving energy.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Fast Ethernet (copper) ports quantity
16
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
3.2 Gbit/s
show more


MAC address table
MAC address table
4096 entries
show more


Packet forwarding rate (10 Mbps)
14880 pps
show more


Packet forwarding rate (100 Mbps)
148800 pps
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
White
show more


Housing material
Housing material
Plastic
show more


LED indicators
Activity, Link, Power
show more

Power

Power source
Power source
DC
show more


Power supply included
Power supply included
Yes
show more


Number of power supply units
1
show more


AC input voltage
AC input voltage
110 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


DC input voltage
9 V
show more


Input current
0.8 A
show more


Input voltage
Input voltage
9 V
show more


Power consumption (typical)
Power consumption (typical)
7.2 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
5 – 95%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Weight & dimensions

Width
Width
227 mm
show more


Depth
Depth
127 mm
show more


Height
Height
45 mm
show more

Packaging content

Cables included
DC
show more


Manual
Yes
show more

Packaging data

Package type
Package type
Box
show more
