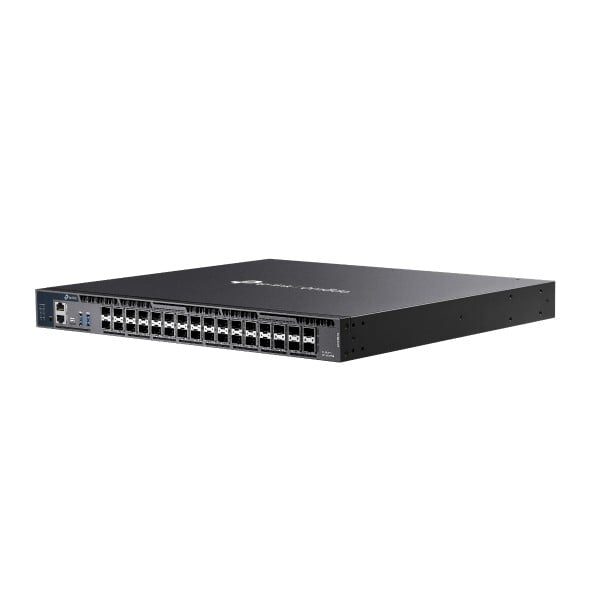

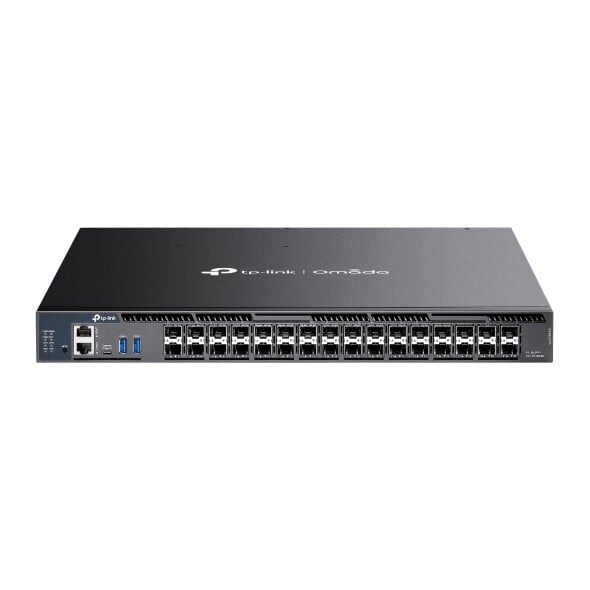

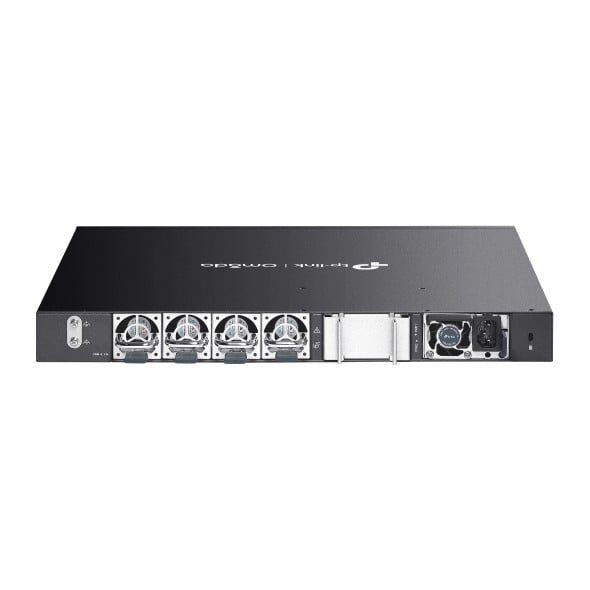

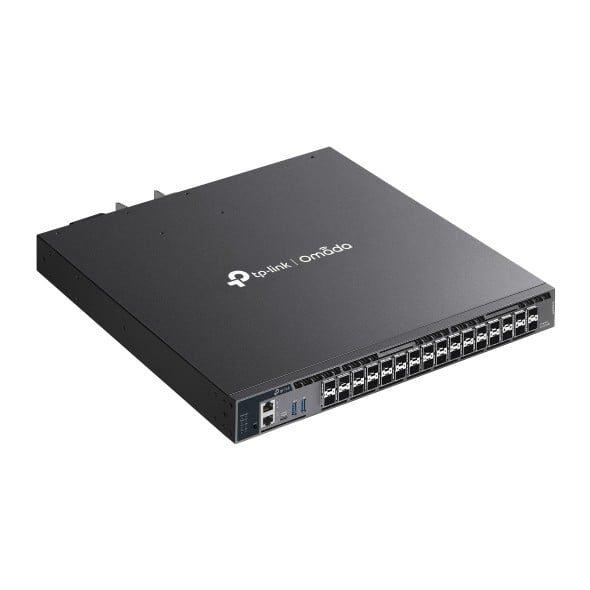

TP-Link SX6632YF Switch L3 26xSFP+ 6xSFP28 Stack

The TP-Link SX6632YF is a managed switch offering advanced network management capabilities and operates at both Layer 2+ and Layer 3. It features an RJ-45 console port for straightforward setup and management. The switch is equipped with a MAC address table capable of storing up to 128,000 entries and boasts a robust switching capacity of 820 Gbit/s, ensuring it can handle a large amount of data traffic efficiently. It adheres to multiple networking standards, including IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, and IEEE 802.3ah. Additionally, the switch is suitable for rack mounting, making it an ideal solution for enterprise-level network environments.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2+/L3
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more


Cloud-managed
Yes
show more


ARP inspection
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
No
show more


SFP module slots quantity
6
show more


SFP+ module slots quantity
26
show more


USB Type-A ports quantity
2
show more


USB Type-C ports quantity
1
show more


Number of management ports
1 pc(s)
show more


Console port
RJ-45
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ah
show more


10G support
10G support
Yes
show more


Port mirroring
Yes
show more


IP routing
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
MAC address-based VLAN, Multicast VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
show more

Data transmission

Switching capacity
Switching capacity
820 Gbit/s
show more


Forwarding rate
610.1 Mpps
show more


MAC address table
MAC address table
128000 entries
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
8 MB
show more

Security

DHCP features
DHCP Option 82
show more


Access Control List (ACL)
Yes
show more


IGMP snooping
Yes
show more


SSH/SSL support
Yes
show more


Static port security
Yes
show more


MAC address filtering
MAC address filtering
Yes
show more

Multicast features

Multicast support
Yes
show more

Protocols

Management protocols
SNMPv1/v2c/v3
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
Yes
show more


Product colour
Product colour
Black
show more


Number of fans
Number of fans
4 fan(s)
show more

Performance

Minimum system requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ / Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® /Linux.
show more

Power

Power source
Power source
AC
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Number of power supply units
2
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-5 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
380 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
Power
show more


Quick start guide
Quick start guide
Yes
show more


Rack mount kit
Yes
show more
