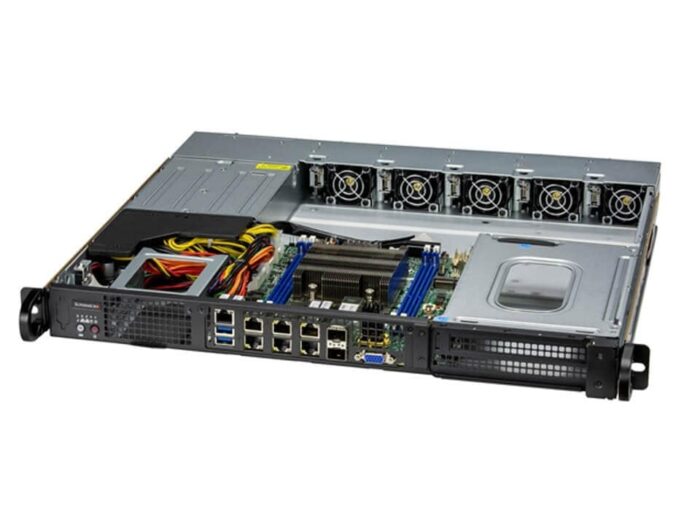

Supermicro SYS-110D-8C-FRAN8TP 1U Server with 2x 25GbE, 2x 10GbE, and Redundant PSU

The Supermicro SYS-110D-8C-FRAN8TP features an Intel SoC motherboard chipset and utilizes an FCBGA 2579 processor socket, with Intel as the processor manufacturer. It supports DDR4-SDRAM memory types and can accommodate a maximum internal memory of 512 GB with a memory voltage of 1.2 V. The system supports storage drive sizes of 2.5 inches and M.2, and includes Ethernet interfaces for both 10 Gigabit Ethernet and Gigabit Ethernet connections. Additionally, it offers PC health monitoring for the CPU, fan, and temperature.

Processor

Built-in processor
Built-in processor
Yes
show more


Motherboard chipset
Motherboard chipset
Intel SoC
show more


Processor socket
Processor socket
FCBGA 2579
show more


Processor manufacturer
Processor manufacturer
Intel
show more


Processor family
Processor family
Intel® Xeon®
show more


Processor series
Intel Xeon D-2700
show more


Number of processors supported
Number of processors supported
1
show more

Memory

Number of DIMM slots
Number of DIMM slots
4
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum internal memory
Maximum internal memory
512 GB
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
2
show more


Number of 2.5" bays
2
show more


Storage drive sizes supported
Storage drive sizes supported
2.5,M.2
show more

Network

Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
show more


Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
7
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Expansion slots

PCI Express x16 (Gen 4.x) slots
1
show more

Features

PC health monitoring
CPU, Fan, Temperature
show more


Trusted Platform Module (TPM)
Yes
show more


Trusted Platform Module (TPM) version
2.0
show more

Design

Chassis type
Chassis type
Rack (1U)
show more


Product colour
Product colour
Silver
show more


LED indicators
Yes
show more


On/off switch
On/off switch
Yes
show more


Cooling type
Cooling type
Active
show more


Hot-swap fan module
Yes
show more


Number of fans
Number of fans
5 fan(s)
show more


Fan diameter
Fan diameter
4 cm
show more

Power

Power supply
Power supply
800 W
show more


Number of main power supplies
Number of main power supplies
2
show more


AC input voltage
AC input voltage
200 – 240 V
show more


AC input frequency
50/60 Hz
show more


80 PLUS certification
80 PLUS Platinum
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Weight & dimensions

Weight
Weight
8.16 kg
show more


Width
Width
437 mm
show more


Height
Height
43 mm
show more


Depth
Depth
399 mm
show more


Power supply dimensions (WxDxH)
54.5 x 40.25 x 220 mm
show more

Packaging data

Package width
Package width
660 mm
show more


Package depth
Package depth
605 mm
show more


Package height
Package height
200 mm
show more


Package weight
Package weight
13.2 kg
show more
