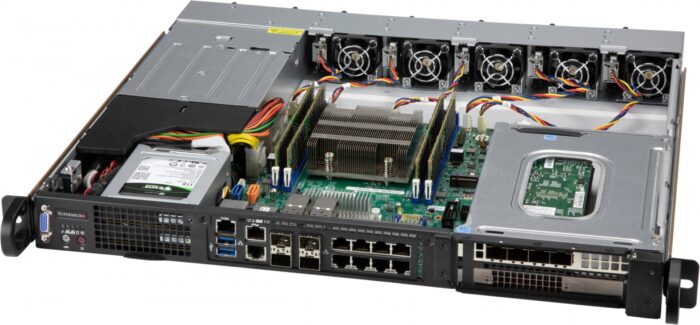

Supermicro SYS-110P-FRN2T Server Barebone Intel C612 LGA 4189 Rack (1U)

The Supermicro SYS-110P-FRN2T is equipped with an Intel C612 motherboard chipset and features a processor socket of LGA 4189. It supports DDR4-SDRAM memory types, with RDIMM clock speeds of up to 3200 MHz and operates at a memory voltage of 1.2 V. The system can accommodate storage drive sizes of 2.5 inches and M.2, with supported storage drive interfaces including M.2 and Serial ATA. It offers a 10 Gigabit Ethernet interface for high-speed network connectivity. For system reliability, it includes health monitoring features for the CPU, fan, and temperature.

Processor

Built-in processor
Built-in processor
No
show more


Motherboard chipset
Motherboard chipset
Intel® C612
show more


Processor socket
Processor socket
LGA 4189
show more


Number of processors supported
Number of processors supported
1
show more

Memory

Number of DIMM slots
Number of DIMM slots
8
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported RDIMM clock speeds
3200 MHz
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC
ECC
Yes
show more

Storage

Storage drive sizes supported
Storage drive sizes supported
2.5,M.2
show more


Supported storage drive interfaces
M.2, Serial ATA
show more

Network

Ethernet interface type
10 Gigabit Ethernet
show more


Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Expansion slots

PCI Express x16 slots
2
show more


Number of M.2 (M) slots
1
show more

Features

PC health monitoring
CPU, Fan, Temperature
show more

Logistics data

Harmonized System (HS) code
84714100
show more

Design

Chassis type
Chassis type
Rack (1U)
show more


LED indicators
HDD, LAN, Power, System
show more


On/off switch
On/off switch
Yes
show more

Power

AC input voltage
AC input voltage
200 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


DC output current (+5 V)
4 A
show more


DC output current (+12 V)
66.6 A
show more


80 PLUS certification
80 PLUS Platinum
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more

Weight & dimensions

Weight
Weight
8.16 kg
show more


Width
Width
437 mm
show more


Height
Height
43 mm
show more


Depth
Depth
399 mm
show more


Power supply dimensions (WxDxH)
54.5 x 40 x 220 mm
show more

Packaging data

Package width
Package width
200 mm
show more


Package depth
Package depth
678 mm
show more


Package height
Package height
604 mm
show more
