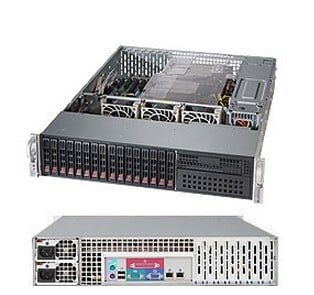

Supermicro SYS-2028R-C1R 2U Dual Processor Server

The Supermicro SuperServer 2028R-C1R is designed with an LGA 2011-v3 processor socket, catering to Intel processor families with a system bus rate of 9.6 GT/s. It supports DDR4-SDRAM memory types, with a maximum internal memory capacity of 1 TB and a maximum RDIMM memory capacity of 32 GB. The server is compatible with 2.5" storage drive sizes and supports storage drive interfaces including Serial Attached SCSI (SAS)-3 and Serial ATA III. It offers RAID level options of 0, 1, 6, 10, 50, and 60. The on-board graphics card is the Aspeed AST2400 model. For network connectivity, it includes a Gigabit Ethernet interface, supporting Ethernet LAN data rates of 1000 Mbit/s, and utilizes copper Ethernet cabling technology with 1000BASE-T and 100BASE-TX.

Processor

Processor socket
Processor socket
LGA 2011-v3
show more


Processor family
Processor family
Intel
show more


Number of processors supported
Number of processors supported
1
show more


System bus rate
System bus rate
9.6 GT/s
show more


Maximum cache
45 MB
show more


Compatible processor series
Compatible processor series
Intel® Xeon®
show more


Intel Xeon series
E5-2600
show more

Memory

Number of DIMM slots
Number of DIMM slots
16
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum internal memory
Maximum internal memory
1 TB
show more


Maximum RDIMM memory
32 GB
show more


Memory bus
Memory bus
72 bit
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
16
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Storage drive sizes supported
Storage drive sizes supported
2.5"
show more


Supported storage drive interfaces
Serial Attached SCSI (SAS)-3, Serial ATA III
show more


RAID levels
RAID levels
0, 1, 6, 10, 50, 60
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2400
show more

Network

Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
1000 Mbit/s
show more


Copper ethernet cabling technology
1000BASE-T, 100BASE-TX
show more


LAN controller
Intel® I350
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
3
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


Serial ports quantity
Serial ports quantity
4
show more


Number of SATA III connectors
Number of SATA III connectors
8
show more

Expansion slots

PCI Express x1 slots
16
show more

Logistics data

Harmonized System (HS) code
84714100
show more

Technical details

Compliance certificates
RoHS
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Fan diameter
Fan diameter
8 cm
show more


Number of fans
Number of fans
3 fan(s)
show more


Redundant fans support
Yes
show more

Power

Power supply
Power supply
920 W
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


DC output current (+5 V)
4 A
show more


DC output current (+12 V)
75 A
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Height
Height
89 mm
show more


Depth
Depth
630 mm
show more


Width
Width
437 mm
show more
