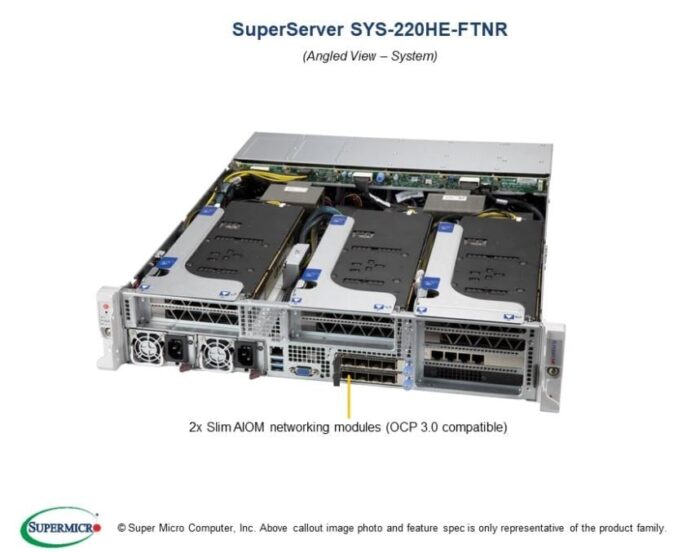

Supermicro SYS-220HE-FTNR Front I/O, MBD-X12DHM, CSE-HE211, PWS-2K08F-1R

The Supermicro SYS-220HE-FTNR is equipped with an Intel C621A chipset and utilizes an LGA 4189 processor socket, designed for Intel processors. It supports DDR4-SDRAM memory types, with a maximum internal memory capacity of 8 TB. The system is compatible with RDIMM clock speeds of up to 3200 MHz. Storage options include support for 2.5" and M.2 drive sizes, accommodating both HDD and SSD types. It supports storage drive interfaces such as Serial ATA and Serial Attached SCSI (SAS). The Ethernet interface is Gigabit Ethernet, with LAN data rates of 10, 100, and 1000 Mbit/s. For system maintenance, it features PC health monitoring for CPU, fan, and temperature.

Processor

Built-in processor
Built-in processor
No
show more


Motherboard chipset
Motherboard chipset
Intel C621A
show more


Processor socket
Processor socket
LGA 4189
show more


Processor manufacturer
Processor manufacturer
Intel
show more


Processor family
Processor family
Intel® Xeon® Scalable
show more


Processor generation
3rd Generation Intel® Xeon® Scalable
show more


Number of processors supported
Number of processors supported
2
show more

Memory

Number of DIMM slots
Number of DIMM slots
32
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum internal memory
Maximum internal memory
8 TB
show more


Supported RDIMM clock speeds
3200 MHz
show more


Memory voltage
Memory voltage
1.2 V
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
8
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Number of 2.5" bays
6
show more


Storage drive sizes supported
Storage drive sizes supported
2.5,M.2
show more


Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Supported storage drive interfaces
Serial ATA, Serial Attached SCSI (SAS)
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Expansion slots

PCI Express slots version
4.0
show more


PCI Express x16 (Gen 4.x) slots
2
show more


PCI Express x8 (Gen 4.x) slots
8
show more

Features

PC health monitoring
CPU, Fan, Temperature
show more


Trusted Platform Module (TPM)
Yes
show more


Trusted Platform Module (TPM) version
2.0
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Silver
show more


LED indicators
Yes
show more


On/off switch
On/off switch
Yes
show more


Fan diameter
Fan diameter
8 cm
show more


Number of fans
Number of fans
6 fan(s)
show more

Power

Power supply
Power supply
2000 W
show more


Number of main power supplies
Number of main power supplies
1
show more


Number of redundant power supplies installed
2
show more


AC input voltage
AC input voltage
200 – 240 V
show more


AC input frequency
50/60 Hz
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
5 – 35 °C
show more

Weight & dimensions

Weight
Weight
15.6 kg
show more


Width
Width
436.9 mm
show more


Height
Height
88.9 mm
show more


Depth
Depth
574 mm
show more


Power supply dimensions (WxDxH)
73.5 x 203 x 40 mm
show more

Packaging data

Package width
Package width
584.2 mm
show more


Package depth
Package depth
914.4 mm
show more


Package height
Package height
228.6 mm
show more


Package weight
Package weight
21.5 kg
show more
