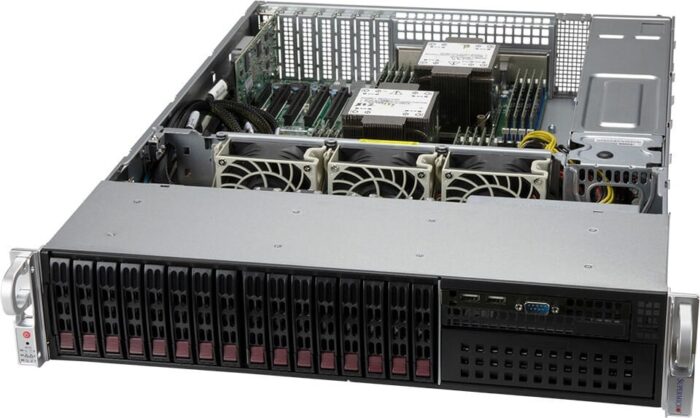

Supermicro SYS-220P-C9R X12DPI-N6-P, CSE-213BTS-R1K23LPBP3-1, 2U SAS3 Mainstream Server

The Supermicro SYS-220P-C9R features an Intel C621A motherboard chipset and uses a processor socket of LGA 4189. It supports DDR4-SDRAM memory types and can accommodate a maximum internal memory of 4 TB. The system supports RDIMM clock speeds of up to 3200 MHz. For networking, it includes a Gigabit Ethernet interface with LAN data rates of 10, 100, and 1000 Mbit/s. PC health monitoring capabilities cover CPU, fan, temperature, and voltage. The BIOS is of the EEPROM type and has a memory size of 32 Mbit.

Processor

Built-in processor
Built-in processor
No
show more


Motherboard chipset
Motherboard chipset
Intel C621A
show more


Processor socket
Processor socket
LGA 4189
show more


Number of processors supported
Number of processors supported
2
show more

Memory

Number of DIMM slots
Number of DIMM slots
16
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum internal memory
Maximum internal memory
4 TB
show more


Supported RDIMM clock speeds
3200 MHz
show more

Storage

Number of storage drives supported
Number of storage drives supported
16
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


Number of 2.5" bays
16
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
2
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


COM ports quantity
2
show more

Features

PC health monitoring
CPU, Fan, Temperature, Voltage
show more

Logistics data

Harmonized System (HS) code
84714100
show more

BIOS

BIOS type
BIOS type
EEPROM
show more


BIOS memory size
32 Mbit
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


On/off switch
On/off switch
Yes
show more


Reset button
Yes
show more


Number of fans
Number of fans
3 fan(s)
show more

Power

Power supply
Power supply
1200 W
show more


80 PLUS certification
80 PLUS Titanium
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
17.4 kg
show more


Height
Height
89 mm
show more


Depth
Depth
630 mm
show more


Width
Width
437 mm
show more

Packaging data

Package weight
Package weight
28.8 kg
show more
