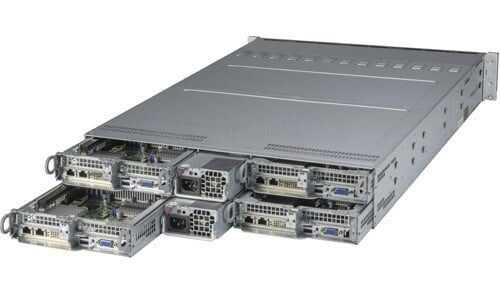

Supermicro SYS-220TP-HC1TR Server Rack (2U) Intel Xeon 3000 Series DDR4-SDRAM 2200 W

The Supermicro SYS-220TP-HC1TR is equipped with a processor from the Intel Xeon 3000 Sequence family. It utilizes DDR4-SDRAM for its internal memory, ensuring efficient performance. The system supports hard disk drives with a size of 2.5 inches and offers connectivity through both SATA and Serial Attached SCSI (SAS) interfaces. It features Ethernet LAN capabilities for reliable network connections. The power supply unit has a capacity of 2200 W and offers redundant power supply (RPS) support for enhanced reliability. The chassis is designed in a 2U rack format, making it suitable for various server configurations.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Processor family
Processor family
Intel® Xeon® 3000 Sequence
show more


Processor cache
48 MB
show more


Motherboard chipset
Motherboard chipset
Intel® C621
show more


Intelligent Platform Management Interface (IPMI) support
Yes
show more

Memory

Internal memory type
Internal memory type
DDR4-SDRAM
show more


Memory clock speed
Memory clock speed
3200 MHz
show more


ECC
ECC
Yes
show more


Memory slots
Memory slots
16
show more


Maximum internal memory
Maximum internal memory
4 TB
show more

Storage

HDD interface
HDD interface
SATA, Serial Attached SCSI (SAS)
show more


HDD size
HDD size
2.5"
show more


Number of HDDs supported
Number of HDDs supported
6
show more


Supported HDD sizes
Supported HDD sizes
2.5"
show more


RAID support
RAID support
Yes
show more


RAID levels
RAID levels
0, 1, 5, 6, 10, 50
show more


Hot-swap
Yes
show more


Optical drive type
Optical drive type
No
show more

Graphics

On-board graphics card
On-board graphics card
Yes
show more


On-board graphics card model
On-board graphics card model
Aspeed AST2600
show more

Network

Wi-Fi
Wi-Fi
No
show more


Ethernet interface type
10 Gigabit Ethernet
show more


LAN controller
Intel X710-AT2
show more


Ethernet LAN
Ethernet LAN
Yes
show more

Ports & interfaces

Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more

Expansion slots

PCI Express x8 slots
1
show more


PCI Express x16 slots
2
show more

Design

Chassis type
Chassis type
Rack (2U)
show more


Product colour
Product colour
Black, Silver
show more


Rack mounting
Rack mounting
Yes
show more

Performance

Trusted Platform Module (TPM)
No
show more


BIOS type
BIOS type
EEPROM
show more

Software

Operating system installed
Operating system installed
No
show more

Power

Redundant power supply (RPS) support
Redundant power supply (RPS) support
Yes
show more


Power supply
Power supply
2200 W
show more


Number of redundant power supplies supported
2
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage relative humidity (H-H)
5 – 95%
show more

Certificates

Certification
80 PLUS Titanium Level
show more

Weight & dimensions

Width
Width
438 mm
show more


Height
Height
88 mm
show more


Depth
Depth
730 mm
show more


Weight
Weight
32.7 kg
show more


Package width
Package width
622.3 mm
show more


Package depth
Package depth
1143 mm
show more


Package height
Package height
254 mm
show more


Package weight
Package weight
40.9 kg
show more
