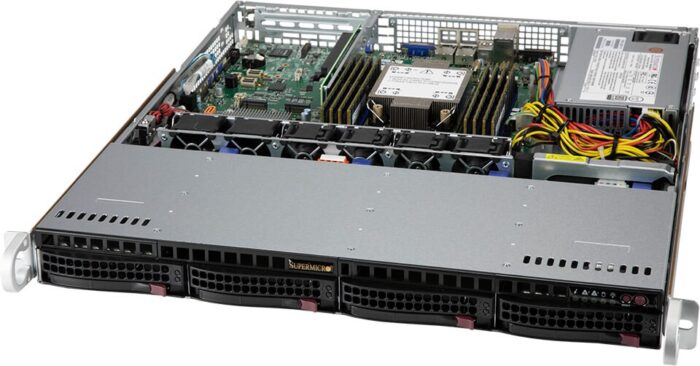

Supermicro SYS-510P-M Server Barebone LGA 4189

The Supermicro SYS-510P-M is equipped with an LGA 4189 processor socket and is manufactured by Intel, featuring the Intel® Xeon® processor family. It supports DDR4-SDRAM memory types and can accommodate a maximum internal memory of up to 3 TB. The system supports RDIMM clock speeds of 2666, 2933, and 3200 MHz. In terms of data protection, it offers RAID levels 0, 1, 5, and 10. For networking, it includes a Gigabit Ethernet interface, powered by the Intel® I350 LAN controller. The system also boasts comprehensive PC health monitoring features, including monitoring of the CPU, fan, LED, and temperature.

Processor

Built-in processor
Built-in processor
No
show more


Processor socket
Processor socket
LGA 4189
show more


Processor manufacturer
Processor manufacturer
Intel
show more


Processor family
Processor family
Intel® Xeon®
show more


Number of processors supported
Number of processors supported
1
show more

Memory

Number of DIMM slots
Number of DIMM slots
8
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Maximum internal memory
Maximum internal memory
3 TB
show more


Supported RDIMM clock speeds
2666,2933,3200 MHz
show more


Memory voltage
Memory voltage
1.25 V
show more


Non-ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
12
show more


Hot-swap HDD bays
Hot-swap HDD bays
Yes
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I350
show more

Ports & interfaces

USB 2.0 ports quantity
USB 2.0 ports quantity
6
show more


USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
5
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
3
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


Serial ports quantity
Serial ports quantity
2
show more

Expansion slots

PCI Express x16 slots
1
show more

Features

PC health monitoring
CPU, Fan, LED, Temperature
show more

Logistics data

Harmonized System (HS) code
84714100
show more

Power

Power supply
Power supply
500 W
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Weight
Weight
8 kg
show more


Height
Height
43 mm
show more


Depth
Depth
507 mm
show more


Width
Width
437 mm
show more

Packaging data

Package width
Package width
609.6 mm
show more


Package depth
Package depth
749.3 mm
show more


Package height
Package height
215.9 mm
show more


Package weight
Package weight
13.8 kg
show more
