Supermicro SYS-530A-IL NR SuperWorkstation (X12SAE, CSE-735D4-668B), RoHS

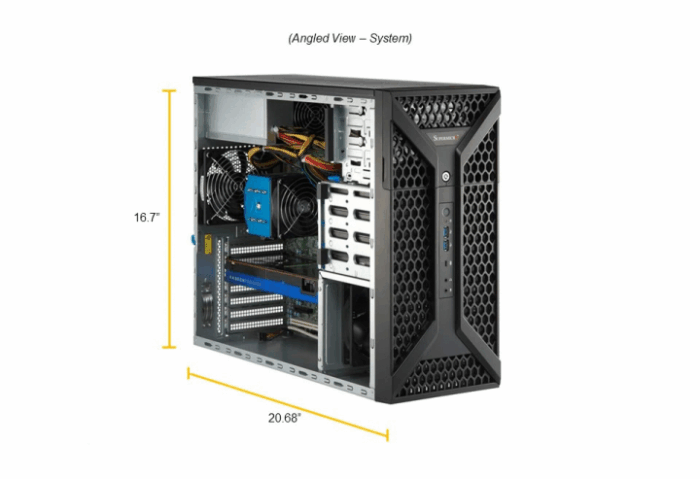

The Supermicro SYS-530A-IL is a Midi-Tower workstation barebone system. It features an Intel W580 motherboard chipset and an LGA 1200 (Socket H5) processor socket with an AMI BIOS. This system supports DDR4-SDRAM memory types and includes four memory slots, allowing for a maximum internal memory capacity of 128 GB. For storage, it utilizes a Serial ATA interface. The system includes two Ethernet LAN (RJ-45) ports and employs active cooling to maintain optimal performance. It comes with a 668 W power supply.

Processor

Processor manufacturer
Processor manufacturer
Intel
show more


Built-in processor
Built-in processor
No
show more

Memory

Memory slots type
Memory slots type
DIMM
show more


Number of memory slots
4
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Memory voltage
Memory voltage
1.2 V
show more


Supported memory clock speeds
Supported memory clock speeds
3200 MHz
show more


Maximum internal memory
Maximum internal memory
128 GB
show more


ECC
ECC
Yes
show more

Storage

Storage drive sizes supported
Storage drive sizes supported
3.5"
show more


Storage drive interface
Storage drive interface
Serial ATA
show more


Number of storage drives supported
Number of storage drives supported
4
show more

Graphics

On-board graphics card
On-board graphics card
No
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Wi-Fi
Wi-Fi
No
show more


LAN controller
Intel® I219-LM, Intel I225-V
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
show more


USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
show more


HDMI ports quantity
HDMI ports quantity
1
show more


HDMI version
2.0b
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


DisplayPort version
1.4a
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more

Expansion slots

PCI Express slots version
3.0, 4.0
show more

Design

Chassis type
Chassis type
Midi-Tower
show more


Product colour
Product colour
Black
show more


Cooling type
Cooling type
Active
show more


On/off switch
On/off switch
Yes
show more


LED indicators
Yes
show more


Product type
Product type
Workstation barebone
show more

Performance

Motherboard chipset
Motherboard chipset
Intel W580
show more


Processor socket
Processor socket
LGA 1200 (Socket H5)
show more


Number of processors supported
Number of processors supported
1
show more


BIOS type
BIOS type
AMI
show more


BIOS memory size
256 Mbit
show more


ACPI version
6.0
show more


Trusted Platform Module (TPM)
Yes
show more


Trusted Platform Module (TPM) version
2.0
show more

Power

Power supply type
Power supply type
Internal power supply unit
show more


AC input frequency
50/60 Hz
show more


AC input voltage
AC input voltage
100 – 240 V
show more


Number of power supply units
1
show more


Power supply
Power supply
668 W
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Width
Width
193 mm
show more


Depth
Depth
536 mm
show more


Height
Height
424 mm
show more


Weight
Weight
12.7 kg
show more


Package weight
Package weight
13.6 kg
show more
