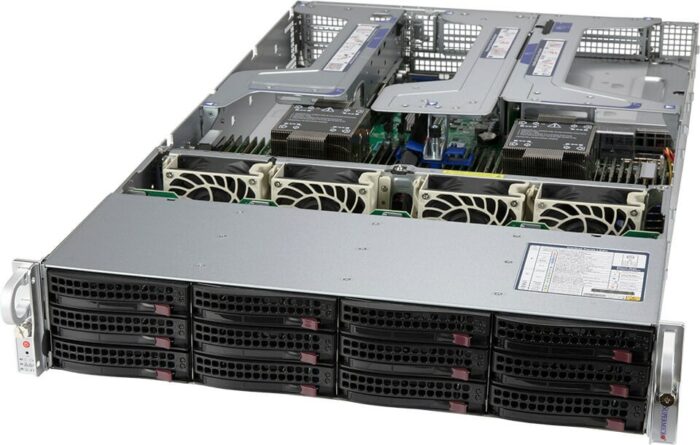

Supermicro SYS-620U-TNR Ultra 2U, 12×3.5" NVMe, X12DPU-6, 829U3TS-R1K22P-T

The Supermicro SYS-620U-TNR is a PC barebone that features the Intel® C621 motherboard chipset and a processor socket of LGA 4189, with an AMI BIOS type. It supports DDR4-SDRAM memory types and includes 34 memory slots. For storage, it is compatible with both HDD and SSD drive types, using interfaces such as SAS and Serial ATA III. The system supports RAID levels 0, 1, 5, and 10, and has one Ethernet LAN (RJ-45) port for connectivity. The cooling system is active, and it comes with a 1200 W power supply.

Processor

Built-in processor
Built-in processor
No
show more

Memory

Memory slots type
Memory slots type
DIMM
show more


Number of memory slots
34
show more


Memory voltage
Memory voltage
1.2 V
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more

Storage

Supported storage drive types
Supported storage drive types
HDD & SSD
show more


Storage drive sizes supported
Storage drive sizes supported
3.5"
show more


Storage drive interface
Storage drive interface
SAS, Serial ATA III
show more


NVMe
NVMe
Yes
show more


Number of storage drives supported
Number of storage drives supported
12
show more


RAID levels
RAID levels
0, 1, 5, 10
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Wi-Fi
Wi-Fi
No
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more

Expansion slots

PCI Express slots version
4.0
show more


PCI Express x8 slots
6
show more


PCI Express x16 slots
2
show more

Design

Product colour
Product colour
Black
show more


Cooling type
Cooling type
Active
show more


On/off switch
On/off switch
Yes
show more


LED indicators
Yes
show more


Product type
Product type
PC barebone
show more

Performance

Motherboard chipset
Motherboard chipset
Intel® C621
show more


Processor socket
Processor socket
LGA 4189
show more


Number of processors supported
Number of processors supported
2
show more


Compatible processor series
Compatible processor series
Intel® Xeon®
show more


BIOS type
BIOS type
AMI
show more


BIOS memory size
32 Mbit
show more


Trusted Platform Module (TPM)
Yes
show more


Trusted Platform Module (TPM) version
2.0
show more

Power

Power supply type
Power supply type
Internal power supply unit
show more


AC input frequency
50/60 Hz
show more


Power supply
Power supply
1200 W
show more


AC input voltage
AC input voltage
100 – 240 V
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 60 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
10 – 35 °C
show more

Weight & dimensions

Width
Width
437 mm
show more


Depth
Depth
737.9 mm
show more


Height
Height
89 mm
show more


Weight
Weight
16.2 kg
show more
