Supermicro E102-9W-C Black

The Supermicro E102-9W-C is equipped with an Intel processor, specifically the Intel 4305UE model. It supports DDR4-SDRAM memory types with DIMM module capacities of 4GB, 8GB, 16GB, and 32GB, allowing for a maximum internal memory of up to 64GB. The on-board graphics are powered by the Intel UHD Graphics 620. For connectivity, it features a Gigabit Ethernet interface, utilizing the Intel I210-IT and Intel I219-LM LAN controllers. The audio output is managed by a RealTek ALC888S audio chip.

Processor

Built-in processor
Built-in processor
Yes
show more


Processor manufacturer
Processor manufacturer
Intel
show more


Processor family
Processor family
Intel
show more


Processor model
Processor model
4305UE
show more

Memory

Number of DIMM slots
Number of DIMM slots
2
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported DIMM module capacities
4GB, 8GB, 16GB, 32GB
show more


Buffered memory type
Unregistered (unbuffered)
show more


Maximum internal memory
Maximum internal memory
64 GB
show more


Memory voltage
Memory voltage
1.2 V
show more


Non-ECC
Yes
show more


ECC
ECC
No
show more

Graphics

On-board graphics card model
On-board graphics card model
Intel® UHD Graphics 620
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
Gigabit Ethernet
show more


LAN controller
Intel® I210-IT, Intel® I219-LM
show more

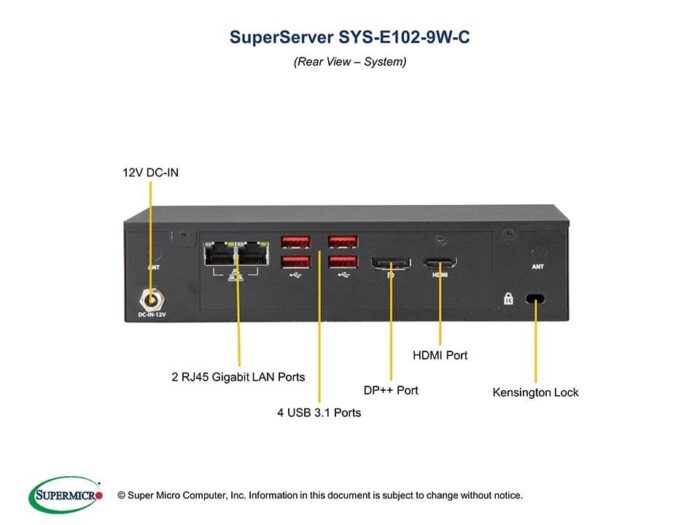

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
2
show more


HDMI ports quantity
HDMI ports quantity
1
show more


DisplayPorts quantity
DisplayPorts quantity
1
show more


COM ports quantity
4
show more


Headphone outputs
Headphone outputs
1
show more


Microphone in
Microphone in
Yes
show more

Features

Optical drive type
Optical drive type
No
show more


Audio chip
RealTek ALC888S
show more


Trusted Platform Module (TPM)
Yes
show more


Embedded options available
Yes
show more

Logistics data

Harmonized System (HS) code
84714100
show more

Technical details

Compliance certificates
RoHS
show more


Sustainability compliance
Yes
show more

Processor special features

Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
show more

BIOS

BIOS type
BIOS type
UEFI AMI
show more


ACPI version
2.0
show more

Design

Product colour
Product colour
Black
show more

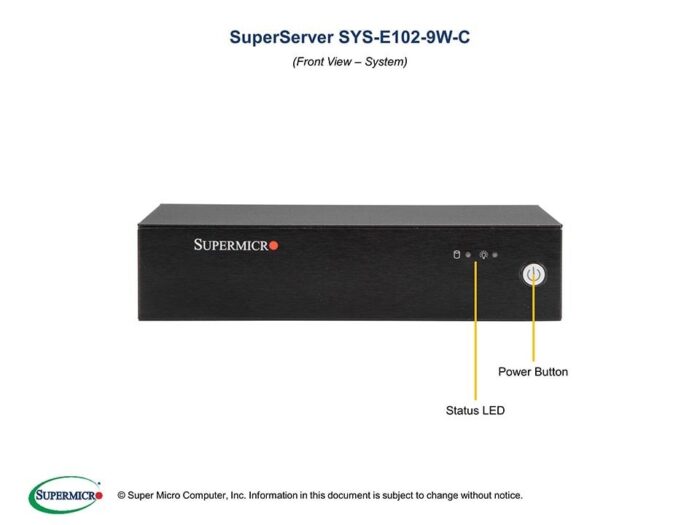

LED indicators
HDD, Power
show more


On/off switch
On/off switch
Yes
show more


Fan diameter
Fan diameter
4 cm
show more


Number of fans
Number of fans
1 fan(s)
show more


Redundant fans support
Yes
show more

Power

Power supply
Power supply
60 W
show more


Redundant power supply (RPS) support
Redundant power supply (RPS) support
No
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more

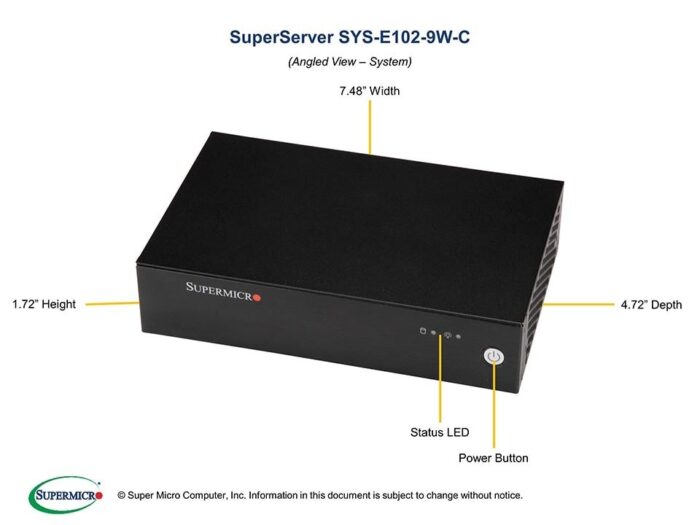

Weight & dimensions

Weight
Weight
2.04 kg
show more


Height
Height
44 mm
show more


Depth
Depth
120 mm
show more


Width
Width
190 mm
show more

Packaging data

Mouse included
Mouse included
No
show more


Keyboard included
Keyboard included
No
show more


Package width
Package width
300 mm
show more


Package depth
Package depth
279 mm
show more


Package height
Package height
130 mm
show more


Package weight
Package weight
1.2 kg
show more

Other features

CPU configuration (max)
1
