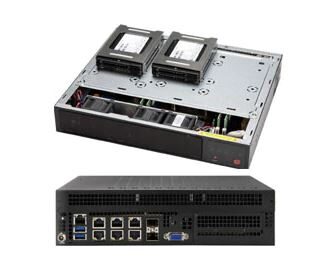

SUPERMICRO Server System SYS-E301-9D-8CN8TP (Without RAM, HDD/SSD)

The Supermicro SYS-E301-9D-8CN8TP is designed with an Intel SoC motherboard chipset and features a processor from the Intel® Xeon® family, specifically the D-2146NT model. It supports DDR4-SDRAM memory types, accommodating DIMM module capacities of 4GB, 8GB, 16GB, 32GB, 64GB, and 128MB, with a maximum RDIMM memory capacity of 256 GB. For graphics, the device includes an on-board Aspeed AST2500 graphics card. In terms of connectivity, it offers 10 Gigabit Ethernet and Gigabit Ethernet interfaces, controlled by the Intel® I350-AM4 and Intel® X557 LAN controllers. The system is equipped with an AMI BIOS, featuring a memory size of 128 Mbit along with PCI 3.0 and SMBIOS 2.8 features.

Processor

Built-in processor
Built-in processor
Yes
show more


Motherboard chipset
Motherboard chipset
Intel SoC
show more


Processor family
Processor family
Intel® Xeon®
show more


Processor model
Processor model
D-2146NT
show more


Number of processors supported
Number of processors supported
1
show more


Maximum cache
16 MB
show more

Memory

Number of DIMM slots
Number of DIMM slots
4
show more


Supported memory types
Supported memory types
DDR4-SDRAM
show more


Supported DIMM module capacities
4GB, 8GB, 16GB, 32GB, 64GB, 128MB
show more


Maximum RDIMM memory
256 GB
show more


Supported RDIMM clock speeds
2133,2400,2666 MHz
show more


Memory voltage
Memory voltage
1.2 V
show more


Non-ECC
Yes
show more


ECC
ECC
Yes
show more

Storage

Number of storage drives supported
Number of storage drives supported
4
show more


Hot-swap HDD bays
Hot-swap HDD bays
No
show more


Number of 2.5" bays
4
show more

Graphics

On-board graphics card model
On-board graphics card model
Aspeed AST2500
show more

Network

Ethernet LAN
Ethernet LAN
Yes
show more


Ethernet interface type
10 Gigabit Ethernet, Gigabit Ethernet
show more


LAN controller
Intel® I350-AM4, Intel® X557
show more

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
8
show more


IPMI LAN (RJ-45) port
Yes
show more


VGA (D-Sub) ports quantity
VGA (D-Sub) ports quantity
1
show more


InfiniBand
Yes
show more


Number of SATA III connectors
Number of SATA III connectors
4
show more

Expansion slots

PCI Express slots version
3.0
show more


PCI Express x8 (Gen 3.x) slots
PCI Express x8 (Gen 3.x) slots
1
show more

Features

Trusted Platform Module (TPM)
Yes
show more


Trusted Platform Module (TPM) version
2.0
show more

Technical details

Compliance certificates
RoHS
show more

Processor special features

Intelligent Platform Management Interface (IPMI) support
Yes
show more


Intel Virtualization Technology for Directed I/O (VT-d)
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
show more

BIOS

BIOS type
BIOS type
AMI
show more


BIOS memory size
128 Mbit
show more


ACPI version
5.0
show more


UEFI version
2.4
show more


System Management BIOS (SMBIOS) version
2.8
show more


Real-time clock (RTC)
Yes
show more


BIOS features
PCI 3.0, SMBIOS 2.8
show more

Design

Product colour
Product colour
Black
show more


LED indicators
HDD
show more


On/off switch
On/off switch
Yes
show more


Fan diameter
Fan diameter
4 cm
show more


Number of fans
Number of fans
3 fan(s)
show more

Operational conditions

Storage relative humidity (H-H)
5 – 95%
show more


Operating relative humidity (H-H)
8 – 90%
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating temperature (T-T)
Operating temperature (T-T)
0 – 35 °C
show more

Weight & dimensions

Weight
Weight
1.56 kg
show more


Height
Height
66 mm
show more


Depth
Depth
226 mm
show more


Width
Width
264.8 mm
show more

Packaging data

Package width
Package width
381 mm
show more


Package depth
Package depth
142 mm
show more


Package height
Package height
276 mm
show more


Package weight
Package weight
3.4 kg
show more
