TP-Link TL-FC111B-20 10/100 Mbps RJ45 to 100 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

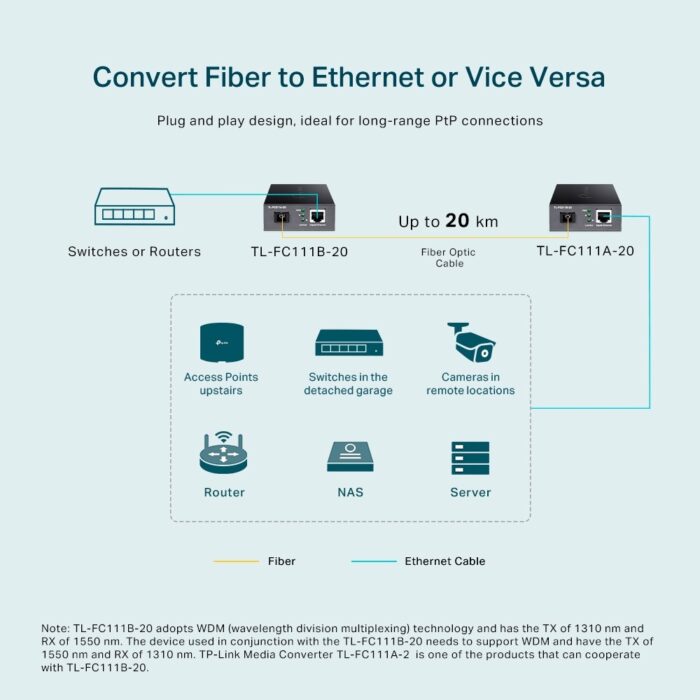

The TP-LINK TL-FC111B-20 is a high-performance media converter that supports 10/100 Mbps WDM, enhancing data transmission efficiency across different network infrastructures. It converts 10/100 Mbps Ethernet signals into 100 Mbps single-mode fiber signals, ensuring seamless connectivity and robust performance. It complies with key networking standards like IEEE 802.3, IEEE 802.3i, and IEEE 802.3x, making it a dependable choice for modern networking requirements.

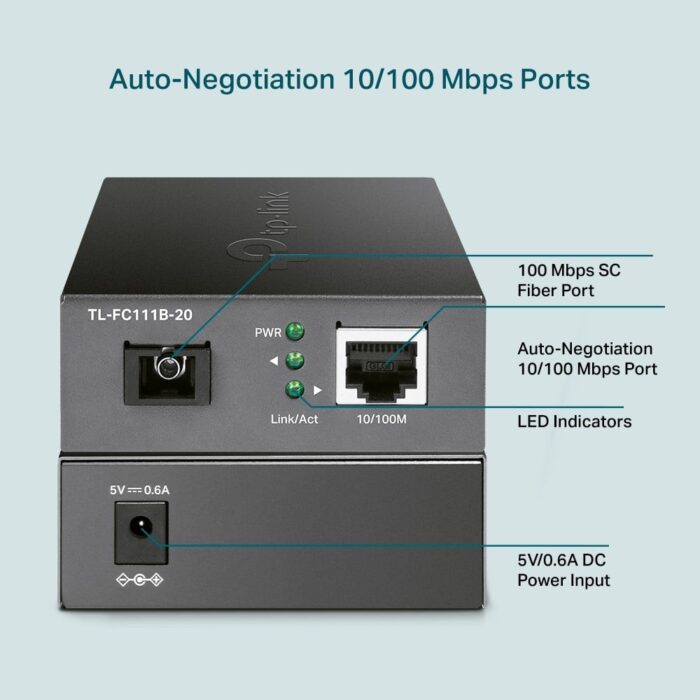

The device is equipped with an SC fiber optic connector, providing a stable and secure connection using 10Base-T and 100Base-T copper Ethernet cabling technologies. It supports a maximum transfer distance of up to 20,000 meters with single-mode fiber cables of 9/125 µm diameter, making it ideal for long-distance network setups. The media converter includes LED indicators for activity, link, and power status, giving users immediate operational feedback.

Featuring a sleek black design, the TP-LINK TL-FC111B-20 meets FCC and CE certifications for regulatory compliance and operates efficiently with an output voltage of 5 V and an output current of 0.6 A. Its extensive range and reliable performance make this media converter a standout choice and an essential component for any professional networking environment.

Network

Maximum data transfer rate
Maximum data transfer rate
100 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3i, IEEE 802.3x
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-T
show more


Fiber ethernet cabling technology
100BASE-FX
show more


Data transfer rate
Data transfer rate
100 Mbit/s
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Auto-negotiation
Yes
show more


Duplex system
Duplex system
Full, Half
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more

Performance

Maximum transfer distance
Maximum transfer distance
20000 m
show more


Fiber mode structure
Single-mode
show more


Fiber cable diameters supported (core/cladding)
9/125 µm
show more

Features

Internal
Internal
No
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, Power
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SC
show more

Power

Output voltage
5 V
show more


Output current
0.6 A
show more


External power adapter
Yes
show more

Weight & dimensions

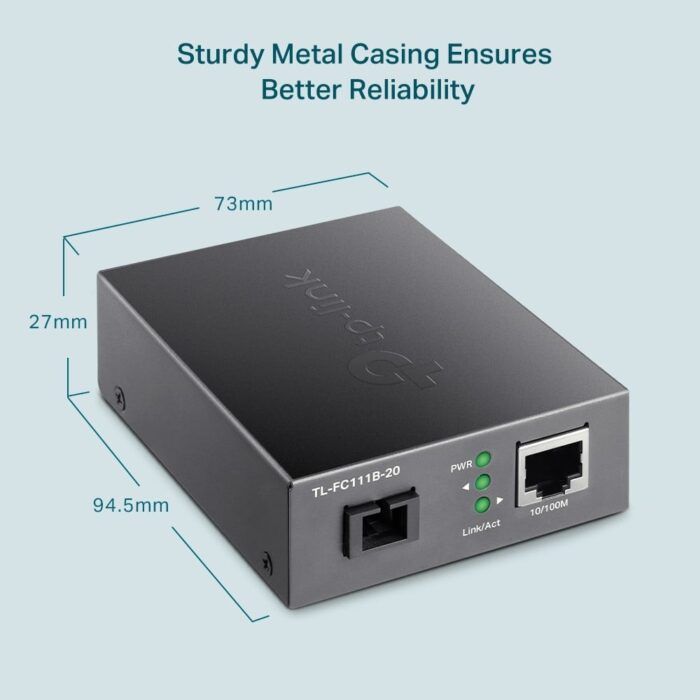

Width
Width
94.5 mm
show more


Depth
Depth
73 mm
show more


Height
Height
27 mm
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Packaging data

Package width
Package width
165 mm
show more


Package depth
Package depth
204 mm
show more


Package height
Package height
65 mm
show more


Package weight
Package weight
360 g
show more

Certificates

Compliance certificates
RoHS
show more


Certification
FCC, CE
show more

Logistics data

Harmonized System (HS) code
85176990
show more
