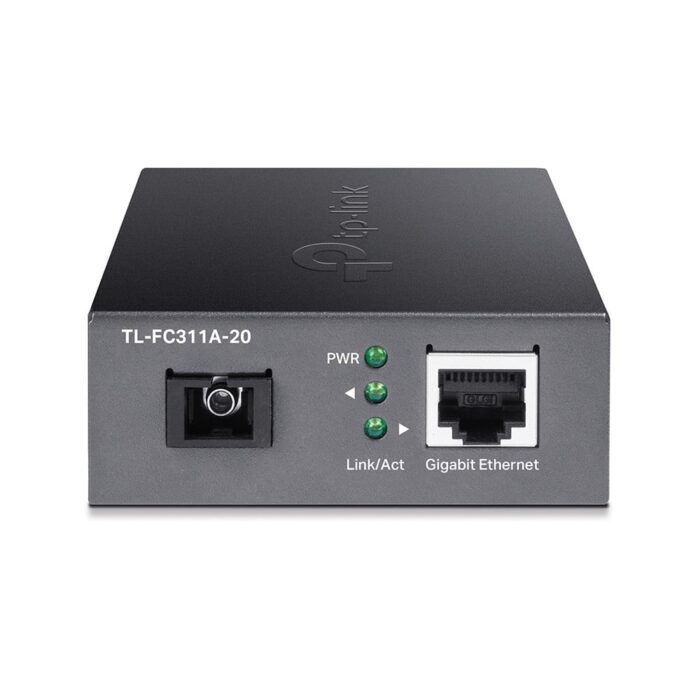

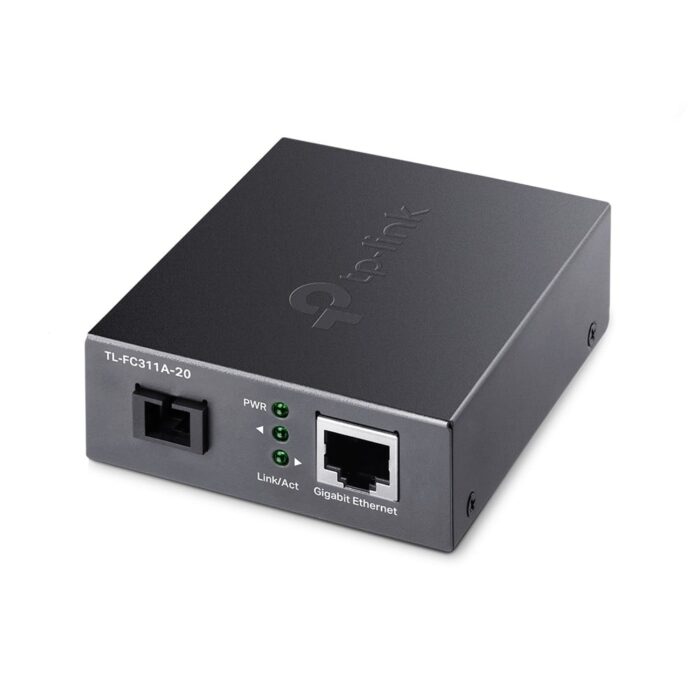

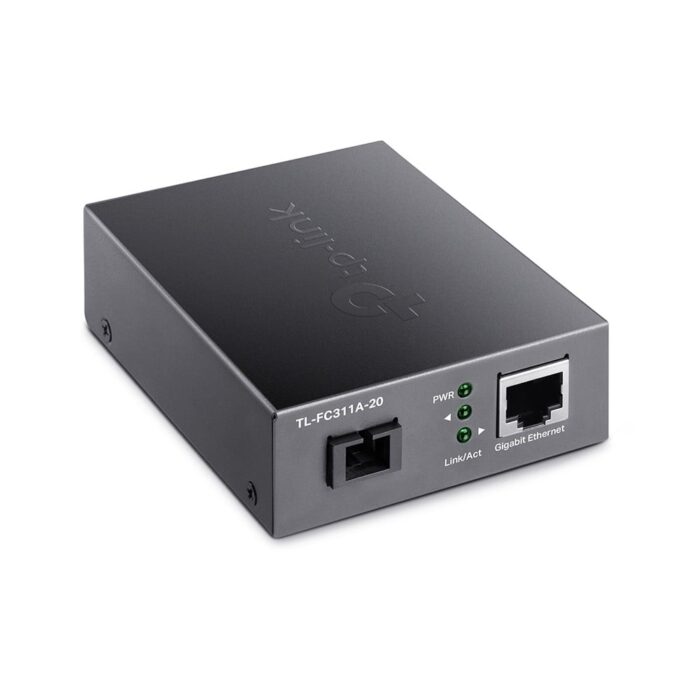

TP-Link TL-FC311A-20 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter

The TP-Link Gigabit WDM Media Converter (Model: TL-FC311A-20) is designed for high-speed, long-distance data transmission and is an ideal solution for a range of networking applications. It supports a maximum data transfer rate of 1000 Mbit/s and complies with several networking standards, including IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3z. Its robust Gigabit Ethernet interface ensures reliable connectivity, meeting the demands of modern network infrastructures.

The TL-FC311A-20 features a single-mode SC fiber optic connector, which maintains data integrity over impressive distances of up to 20,000 meters. It supports fiber cable diameters of 9/125 µm, optimizing single-mode fiber infrastructure use. Its wired connectivity technology guarantees stable and secure connections, making it an excellent choice for businesses requiring uninterrupted data flow.

This media converter is equipped with LED indicators for activity, link, and power status, allowing easy monitoring of system operations. The sleek black design of the TP-Link converter fits seamlessly into any professional setup. It operates with an output voltage of 5 V and a current of 0.6 A, ensuring efficient power usage while delivering exceptional performance, distinguishing it in the market.

Network

Maximum data transfer rate
Maximum data transfer rate
1000 Mbit/s
show more


Networking standards
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
show more


Ethernet interface type
Gigabit Ethernet
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100,1000 Mbit/s
show more


Data transfer rate
Data transfer rate
1000 Mbit/s
show more

Performance

Maximum transfer distance
Maximum transfer distance
20000 m
show more


Wavelength-division multiplexing (WDM)
Yes
show more


Fiber mode structure
Single-mode
show more


Fiber cable diameters supported (core/cladding)
9/125 µm
show more

Features

Internal
Internal
No
show more


Product colour
Product colour
Black
show more


LED indicators
Activity, Link, Power
show more

Ports & interfaces

Connectivity technology
Connectivity technology
Wired
show more


Ethernet LAN (RJ-45) ports
Ethernet LAN (RJ-45) ports
1
show more


Fiber ports quantity
Fiber ports quantity
1
show more


Fiber optic connector
Fiber optic connector
SC
show more


DC-in jack
DC-in jack
Yes
show more

Power

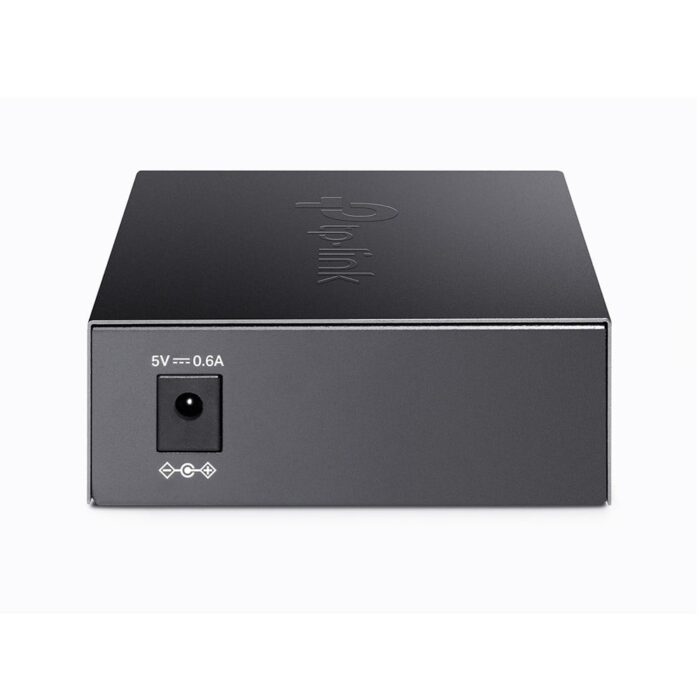

Output voltage
5 V
show more


Output current
0.6 A
show more

Weight & dimensions

Width
Width
94.5 mm
show more


Depth
Depth
73 mm
show more


Height
Height
27 mm
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 50 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Packaging content

AC adapter included
Yes
show more


Quick installation guide
Yes
show more

Packaging data

Package width
Package width
165 mm
show more


Package depth
Package depth
204 mm
show more


Package height
Package height
65 mm
show more


Package weight
Package weight
560 g
show more

Logistics data

Harmonized System (HS) code
85176990
show more
