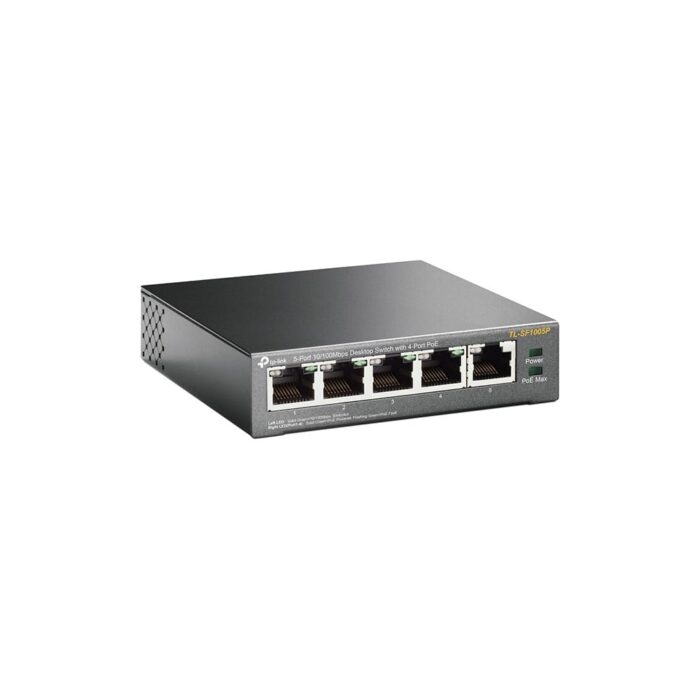

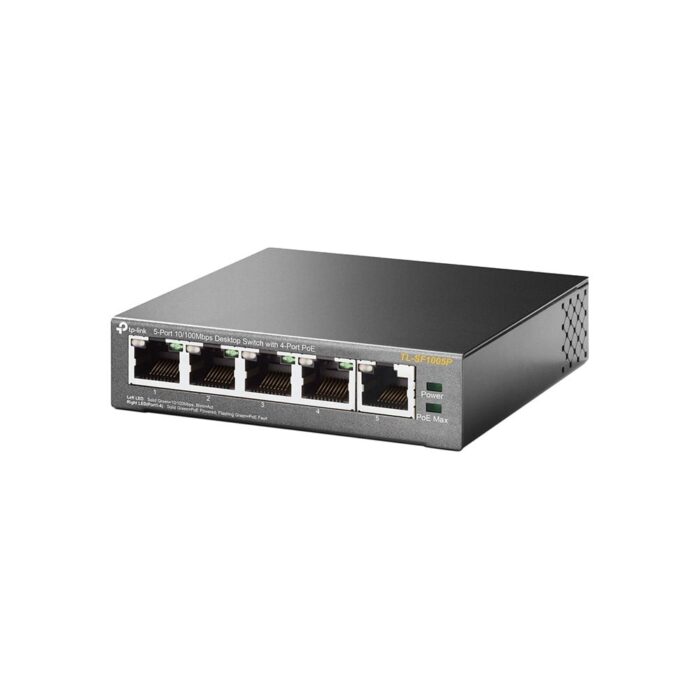

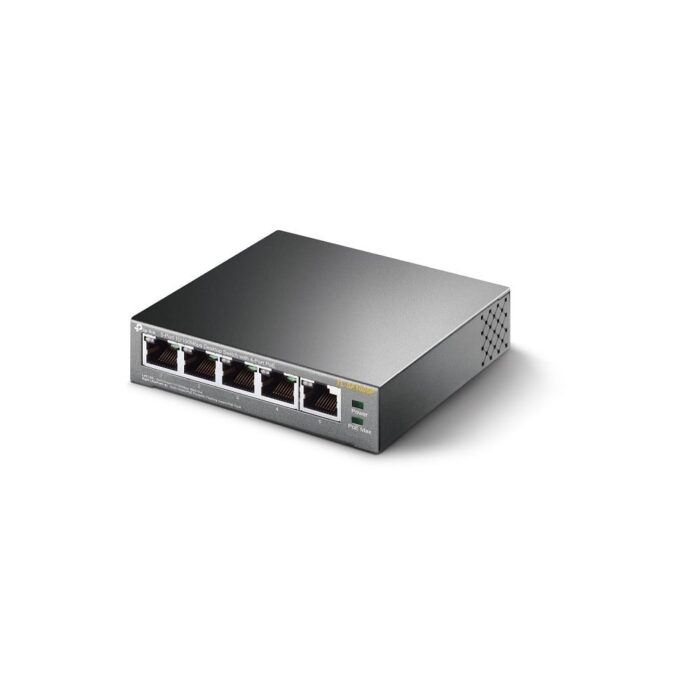

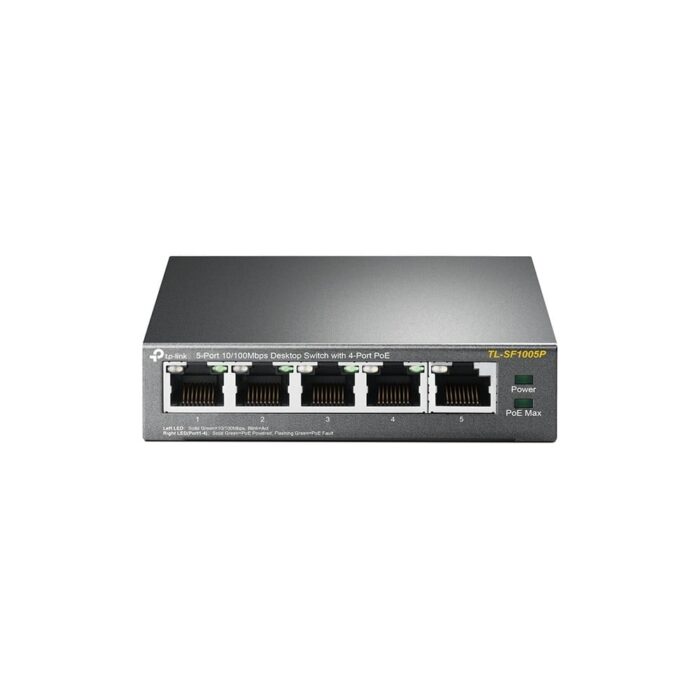

TP-Link TL-SF1005P 5-Port 10/100 Mbps Desktop Switch with 4-Port PoE+

The TP-Link TL-SF1005P is an advanced unmanaged switch that offers fast Ethernet connectivity to meet various networking requirements. It features five RJ-45 Ethernet ports with speeds of 10/100 Mbps, ensuring reliable and efficient data transmission. Four of these ports have Power over Ethernet (PoE) capability, allowing power and data to be delivered through a single cable. This simplifies the installation of devices like IP cameras and wireless access points, making it ideal for home and small office settings.

The device boasts a robust MAC address table with 2000 entries and a switching capacity of 1 Gbit/s, efficiently managing network traffic while maintaining full duplex data transmission. This results in enhanced network performance, ensuring seamless communication between connected devices. The switch supports industry standards, such as IEEE 802.3af and IEEE 802.3x, enhancing its compatibility and reliability across various networking scenarios.

With its compact design, the TP-Link TL-SF1005P is a versatile solution for expanding network connections without the need for complex configurations. Its straightforward setup process and reliable performance distinguish it from competitors, making it a preferred choice for users seeking a hassle-free networking experience. As a product from TP-Link, a leader in networking solutions, the TL-SF1005P is a testament to quality and innovation in the realm of unmanaged switches.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-aging supported
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more

Data transmission

Switching capacity
Switching capacity
1 Gbit/s
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

Power supply included
Power supply included
Yes
show more


Power consumption (max)
Power consumption (max)
63.51 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Total Power over Ethernet (PoE) budget
58 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
5.73 BTU/h
show more

Weight & dimensions

Width
Width
99.8 mm
show more


Depth
Depth
98 mm
show more


Height
Height
25 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
