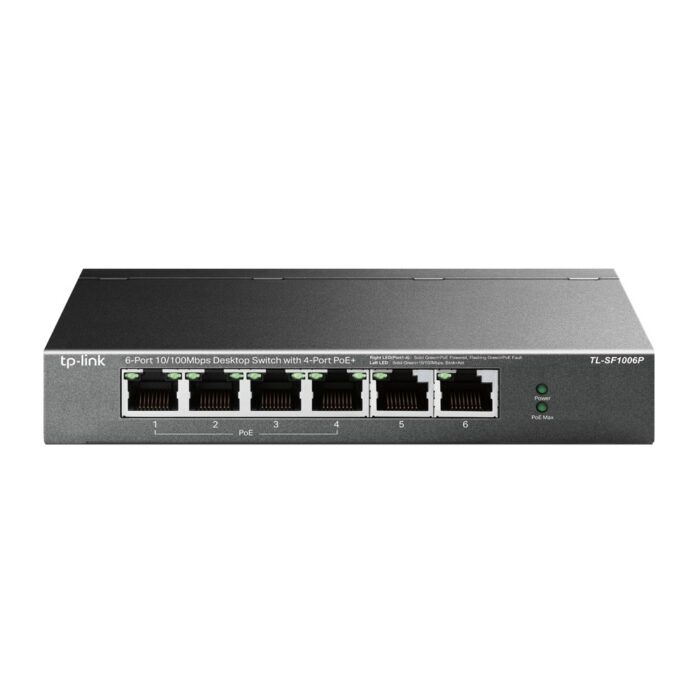

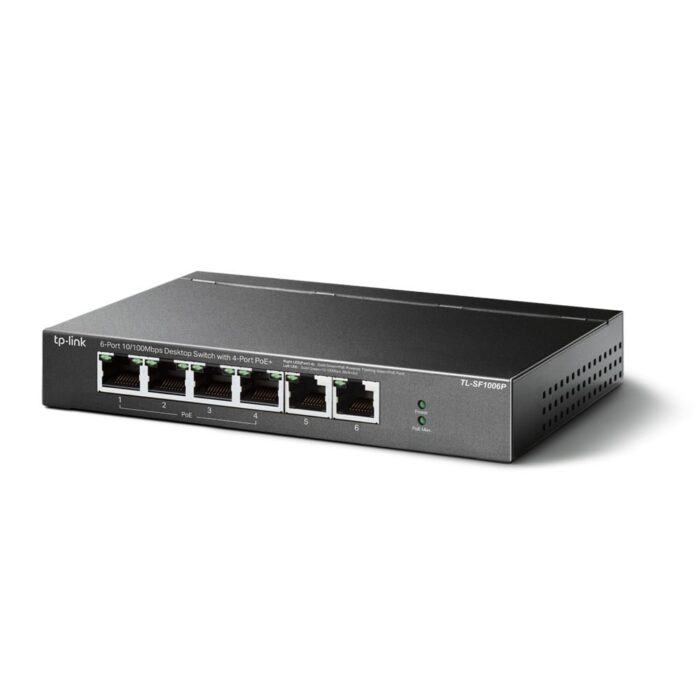

TP-Link TL-SF1006P 6-Port 10/100 Mbps Desktop Switch with 4-Port PoE+

The TP-Link TL-SF1006P is an advanced unmanaged switch that offers seamless Ethernet connectivity, making it suitable for small businesses and home offices. It features six RJ-45 Ethernet ports that support speeds of 10/100 Mbps, ensuring reliable and fast network performance. Importantly, four of these ports have Power over Ethernet (PoE) capabilities, in line with IEEE 802.3af and IEEE 802.3at standards. This allows them to deliver both power and data over a single cable to devices such as IP cameras and VoIP phones.

The switch functions in full duplex mode, enhancing network efficiency by enabling simultaneous data transmission and reception. This capability effectively doubles the communication capacity compared to half-duplex systems. The TP-Link TL-SF1006P is equipped with a MAC address table that can accommodate up to 2000 entries and provides a robust switching capacity of 1.2 Gbit/s, ensuring smooth traffic management without congestion. This model is ideal for users seeking a straightforward and effective networking solution without the need for complex configuration.

With its simple plug-and-play setup, the TP-Link TL-SF1006P is user-friendly and integrates easily into existing network environments. It operates at a DC input voltage of 53.5 V, making it a reliable choice for those in need of a dependable network infrastructure. As a product from TP-Link, a leading manufacturer in networking solutions, the TL-SF1006P is noted for its performance, ease of use, and PoE functionality, making it well-suited for enhancing connectivity across various applications.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
6
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 100BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-aging supported
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


Auto-negotiation
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.2 Gbit/s
show more


Forwarding rate
0.8928 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
2000
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
53.5 V
show more


Input current
1.31 A
show more


Power consumption (max)
Power consumption (max)
74 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
4
show more


Total Power over Ethernet (PoE) budget
67 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
252.34 BTU/h
show more

Weight & dimensions

Width
Width
158 mm
show more


Depth
Depth
101 mm
show more


Height
Height
25 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more


AC adapter included
Yes
show more


Package width
Package width
131 mm
show more


Package depth
Package depth
196 mm
show more


Package height
Package height
121 mm
show more


Package weight
Package weight
870 g
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
show more


Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
