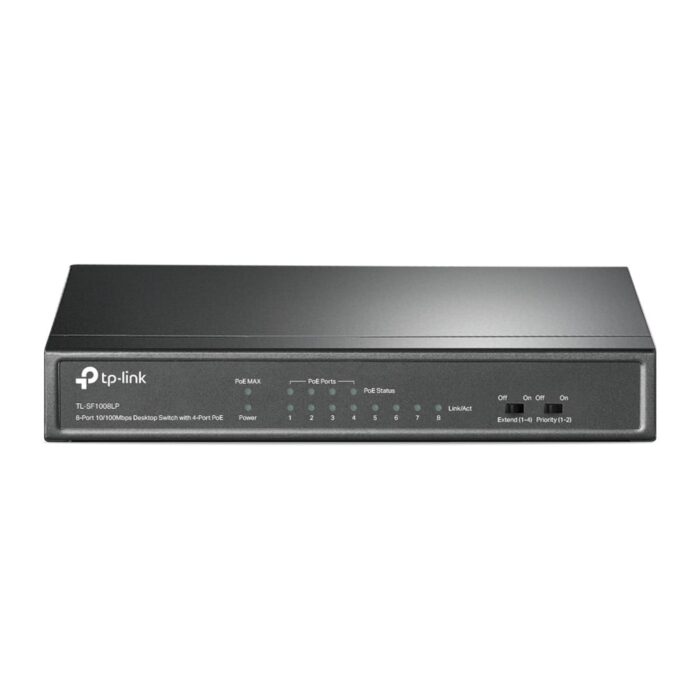

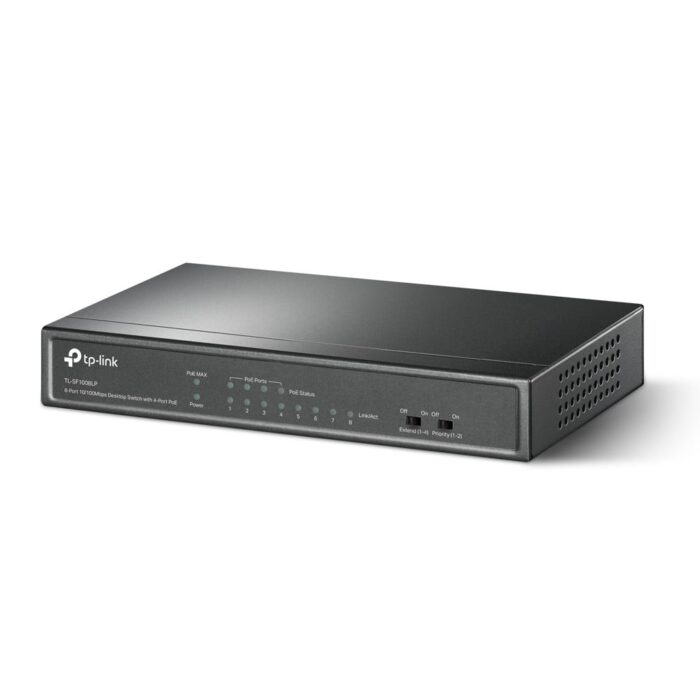

TP-Link TL-SF1008LP 8-Port 10/100 Mbps Desktop Switch with 4-Port PoE

The TP-Link TL-SF1008LP is an advanced unmanaged switch designed to enhance network connectivity for small to medium-sized businesses. It features eight RJ-45 Ethernet ports that support Fast Ethernet speeds of 10/100 Mbps, ensuring reliable and efficient data transfer. Notably, four of these ports are equipped with Power over Ethernet (PoE) capability, allowing for simultaneous data and power transmission to devices such as IP cameras and VoIP phones, which simplifies cabling and reduces installation costs.

Engineered for optimal performance, the TP-Link TL-SF1008LP comes with a robust MAC address table with 2000 entries and a switching capacity of 1.6 Gbit/s. This ensures smooth traffic handling and minimizes bottlenecks, making it an ideal choice for environments with high data demands. Compliant with IEEE 802.3af and IEEE 802.3x standards, this switch guarantees reliable network performance and data integrity, setting it apart from competitors in the market.

Designed for versatility, the TP-Link TL-SF1008LP is wall mountable, providing flexible installation options to suit various user environments. Its compact design saves space and enhances adaptability for different applications. With its advanced features and reliable performance, the TP-Link TL-SF1008LP is a valuable addition to any network infrastructure, ensuring that your connectivity needs are met with efficiency and ease.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Fast Ethernet (copper) ports quantity
8
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10GBASE-T, 100BASE-TX
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-aging supported
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


Auto-negotiation
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.6 Gbit/s
show more


Forwarding rate
1.1904 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more


Jumbo frames support
Yes
show more


Jumbo frames
2000
show more

Security

DHCP features
DHCPv6 relay
show more

Protocols

Routing protocols
OSPF
show more


IPv4 & IPv6 features
IPv6 portal
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more


Number of fans
Number of fans
0 fan(s)
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
No
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
53.5 V
show more


Input current
0.81 A
show more


Power consumption (max)
Power consumption (max)
47.1 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Total Power over Ethernet (PoE) budget
41 W
show more

Other features

Bandwidth
1.6 Gbit/s
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
160.61 BTU/h
show more

Weight & dimensions

Width
Width
171 mm
show more


Depth
Depth
98 mm
show more


Height
Height
27 mm
show more

Packaging content

Cables included
AC
show more


User guide
Yes
show more

Packaging data

AC adapter included
Yes
show more


Package width
Package width
223 mm
show more


Package depth
Package depth
280 mm
show more


Package height
Package height
68 mm
show more


Package weight
Package weight
750 g
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
