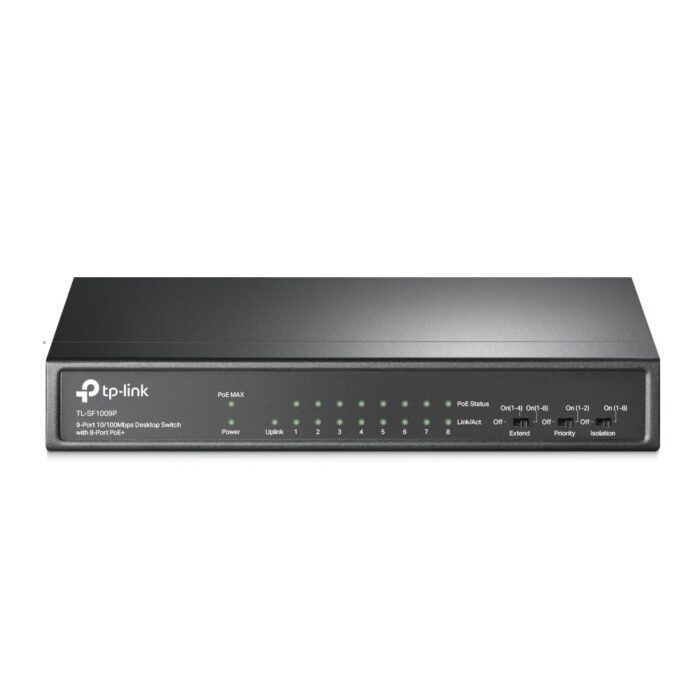

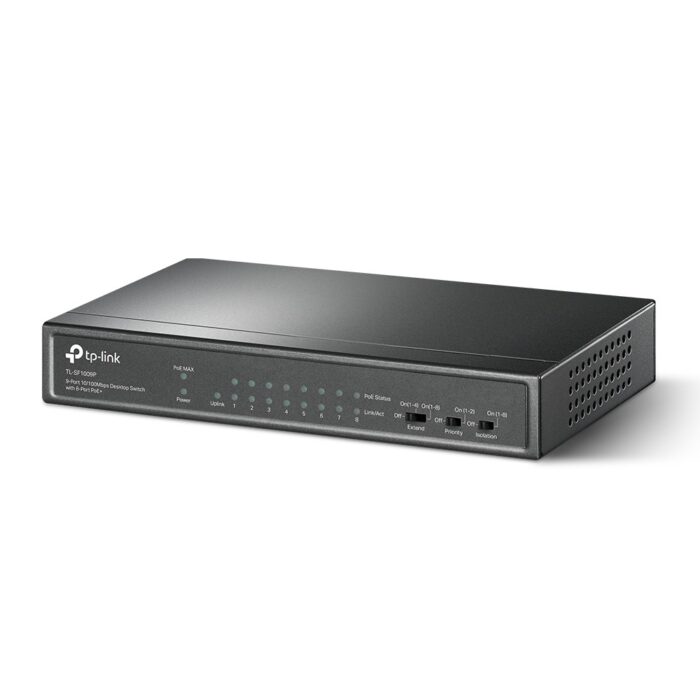

TP-Link TL-SF1009P 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE+

The TP-LINK TL-SF1009P is a high-performance 9-Port 10/100Mbps Desktop Switch that enhances network connectivity. This unmanaged switch includes nine RJ-45 Ethernet ports supporting Fast Ethernet (10/100) speeds, making it ideal for small to medium-sized networks. Notably, eight of these ports feature Power over Ethernet (PoE+) capabilities, allowing both data and electrical power to be delivered to PoE-enabled devices like IP cameras and VoIP phones through a single cable. This feature streamlines installations in areas with limited power outlets.

The switch boasts a robust switching capacity of 1.6 Gbit/s and a MAC address table that can accommodate up to 2000 entries, ensuring efficient traffic management without bottlenecks. It supports full duplex communication, which enables simultaneous data transmission and reception, significantly enhancing overall network performance. It is compatible with important networking standards, including IEEE 802.3af, IEEE 802.3at, and IEEE 802.3x, ensuring it works with a wide range of network devices.

Designed for flexibility, the TP-LINK TL-SF1009P is wall-mountable, allowing for optimal space utilization and improved cable management in your networking setup. It operates with a DC input voltage of 53.5 V and includes a DC-in jack for easy power connectivity. This switch is an excellent choice for expanding network capabilities while maintaining a clean and organized environment, making it a standout option in its class.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
9
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Fast Ethernet (copper) ports quantity
9
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e
show more


Half duplex
Yes
show more


Full duplex
Full duplex
Yes
show more


MAC address auto-aging supported
Yes
show more


MAC address auto-learning supported
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


Auto-negotiation
Yes
show more

Data transmission

Switching capacity
Switching capacity
1.6 Gbit/s
show more


Forwarding rate
1.3392 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black
show more


Housing material
Housing material
Metal
show more


LED indicators
Activity, Link, PoE, Power
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
DC/PoE
show more


Power supply included
Power supply included
No
show more


AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
53.5 V
show more


Input current
1.31 A
show more


Power consumption (max)
Power consumption (max)
77.08 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
65 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
262.84 BTU/h
show more

Weight & dimensions

Width
Width
171 mm
show more


Depth
Depth
98 mm
show more


Height
Height
27 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more


AC adapter included
Yes
show more


Package width
Package width
223 mm
show more


Package depth
Package depth
280 mm
show more


Package height
Package height
68 mm
show more


Package weight
Package weight
980 g
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
Federal Communications Commission (FCC), CE, RoHS
show more


Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
