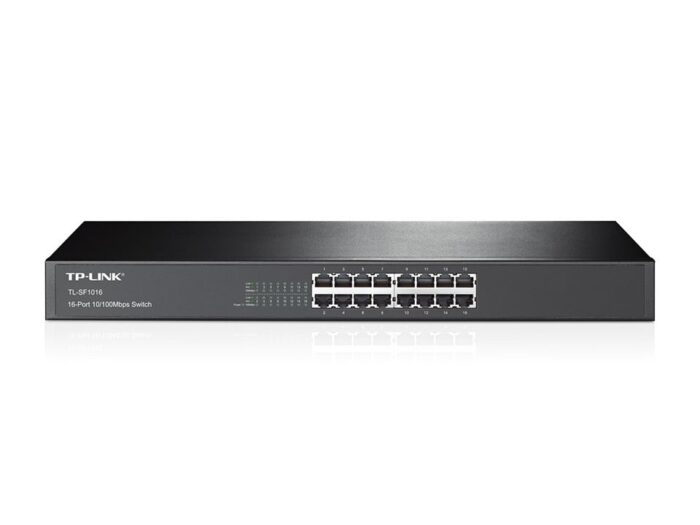

TP-Link TL-SF1016 16-Port 10/100 Mbps Switch

The TP-Link 16-Port 10/100Mbps Rackmount Network Switch is a solid choice to improve network connectivity in various settings. It features 16 RJ-45 Ethernet ports that support Fast Ethernet (10/100) speeds, making it versatile enough for different networking needs, particularly in offices and small businesses. As an unmanaged switch, it offers a simple plug-and-play setup, removing the need for complicated configurations and allowing for quick deployment.

This network switch includes a MAC address table capable of storing up to 8,000 entries and has a switching capacity of 3.2 Gbit/s, ensuring efficient data flow with minimal traffic issues. It complies with key networking standards like IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, which contribute to its reliable and efficient performance. These attributes make the TP-Link switch a dependable option for users looking for steady network functionality.

The switch is designed in a 1U form factor, making it ideal for installation in standard 19-inch racks, which supports a neat and organized arrangement. It receives power via a DC-in jack, ensuring consistent and reliable operation. The TP-Link brand is recognized for its dedication to quality and innovation, making this model a suitable solution for extending network capabilities in settings requiring multiple wired connections.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
3.2 Gbit/s
show more


MAC address table
MAC address table
8000 entries
show more


Packet buffer memory
2 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Form factor
Form factor
1U
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
2.23 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
440 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more

Logistics data

Harmonized System (HS) code
85176990
