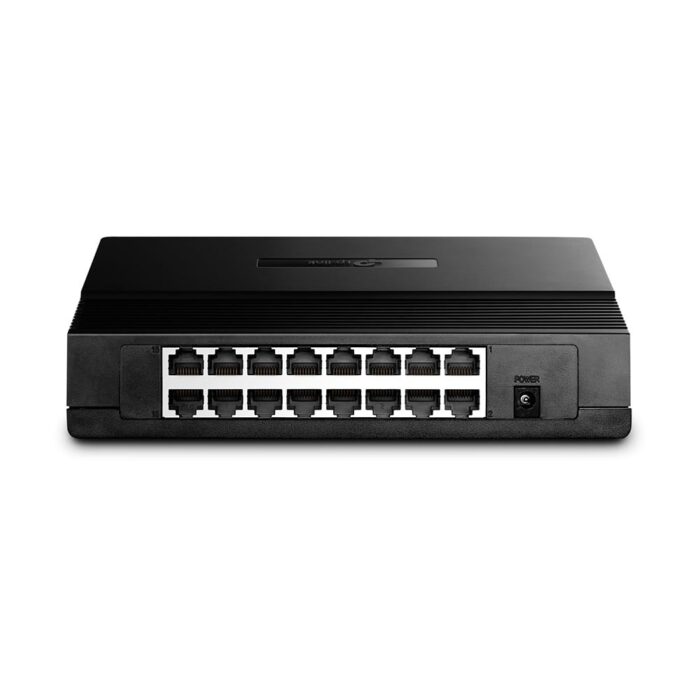

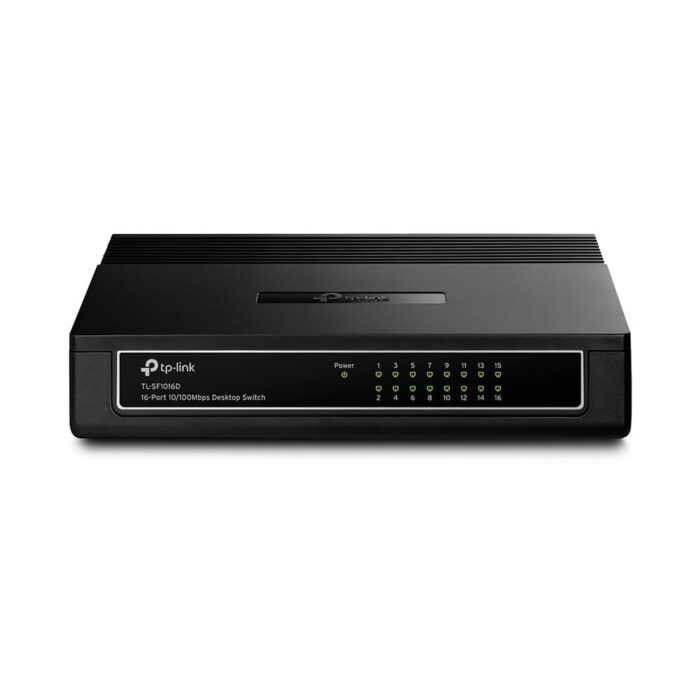

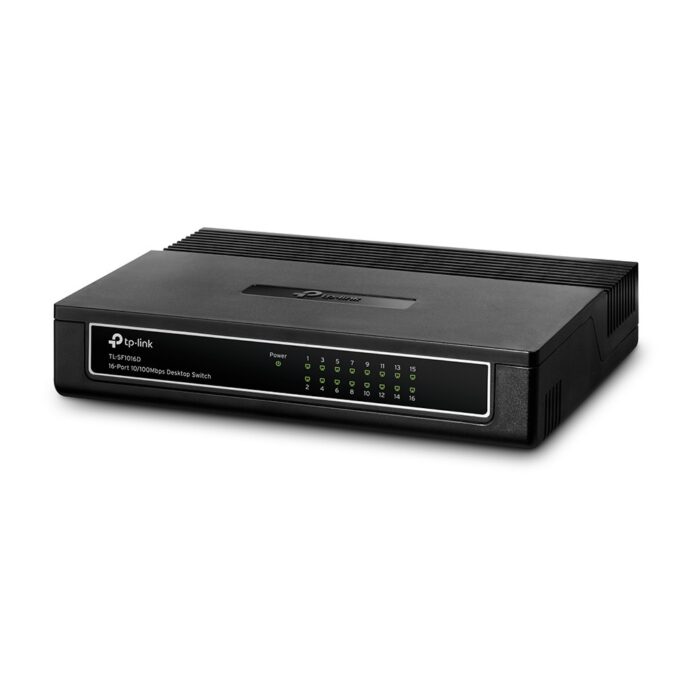

TP-Link TL-SF1016D 16-Port 10/100 Mbps Desktop Switch

The TP-LINK TL-SF1016D is a durable desktop switch designed for medium-sized offices, featuring 16 RJ-45 Ethernet ports that support Fast Ethernet speeds of 10/100 Mbps. This model boosts network performance by enabling rapid data transfer, ensuring a smooth and efficient networking environment. With a MAC address table capable of storing 8000 entries and a switching capacity of 3.2 Gbit/s, the TL-SF1016D effectively manages network traffic and connectivity, making it an ideal choice for businesses aiming to optimize their operations.

Compliant with networking standards such as IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, the TP-LINK TL-SF1016D guarantees compatibility and reliable performance across various network devices. Its design supports a significant number of simultaneous users and devices, allowing businesses to expand their network infrastructure without sacrificing performance. The device is powered through a DC-in jack and can be conveniently mounted in a rack, offering flexibility in installation and placement.

One standout feature of the TP-LINK TL-SF1016D is its ability to handle high volumes of network traffic, significantly enhancing communication and data transmission across the network. This switch is engineered to optimize efficiency, making it an excellent choice for businesses that require a reliable and high-performing network solution. With its focus on performance and scalability, the TL-SF1016D is an essential component for any growing office environment.

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
3.2 Gbit/s
show more


Throughput
2.38 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Packet buffer memory
2 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
2.23 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
