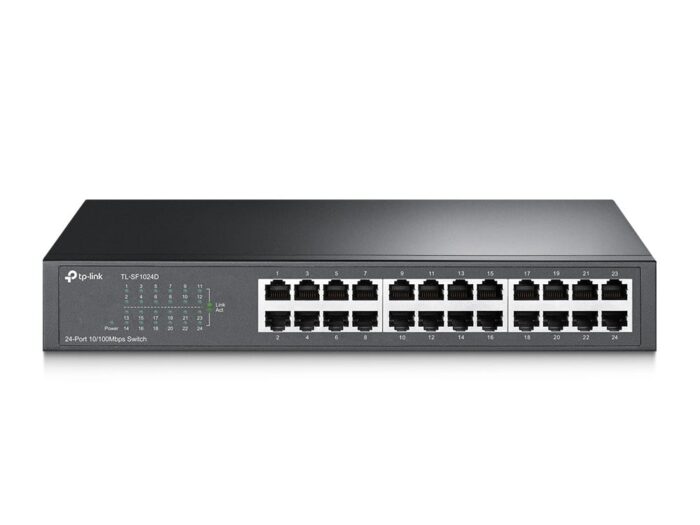

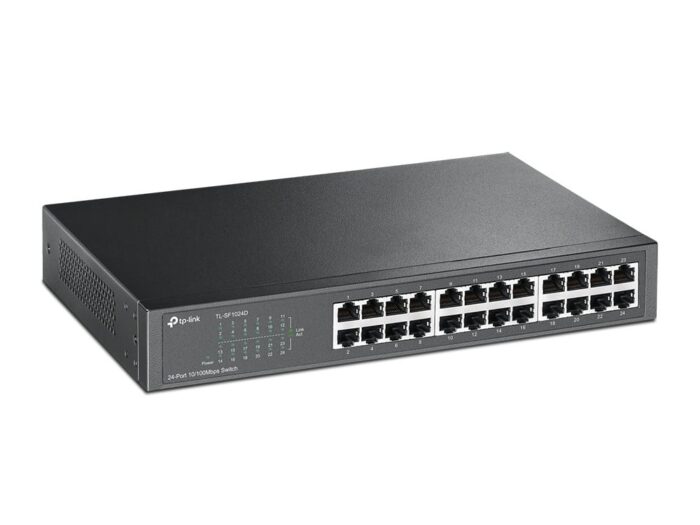

TP-Link TL-SF1024D 24-Port 10/100 Mbps Switch

The TP-Link TL-SF1024D is an advanced unmanaged switch designed to improve network connectivity with ease and efficiency. It features 24 RJ-45 Ethernet ports that support Fast Ethernet connections at speeds of 10/100 Mbps, making it ideal for a wide range of networking applications. With a robust MAC address table capable of storing up to 8000 entries, it ensures seamless transmission and effective management of network traffic, making it a reliable choice for both home and office environments.

Engineered for high performance, the TP-Link TL-SF1024D offers a remarkable switching capacity of 4.8 Gbps, allowing it to handle substantial data throughput effortlessly. This capability makes it an excellent option for expanding network capacity without compromising on speed or efficiency. The switch adheres to essential networking standards, including IEEE 802.3i, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility with a diverse range of network devices and enhancing its versatility in various setups.

For installation convenience, the TP-Link TL-SF1024D supports rack mounting, allowing for a neat and secure arrangement within standard rack frames. The power supply is managed via an AC-in jack, providing stable and continuous power delivery for uninterrupted operation. This switch is designed for straightforward network expansion and connectivity enhancement, providing a practical solution for effective network management without the need for complex configurations.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more


Fast Ethernet (copper) ports quantity
24
show more

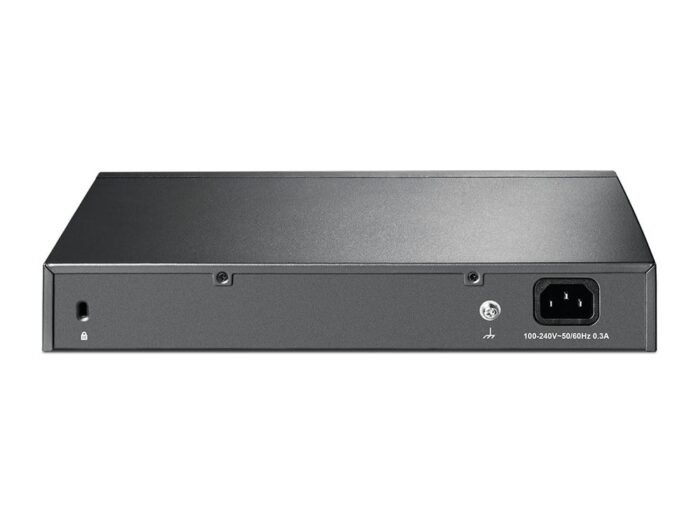

Power connector
AC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10GBASE-T, 100BASE-TX
show more


Cable types supported
Cat3, Cat5e, Cat4, Cat5
show more


Ethernet LAN data rates
Ethernet LAN data rates
10,100 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
4.8 Gbit/s
show more


Throughput
3.57 Mpps
show more


Forwarding rate
3.57 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Packet buffer memory
2 MB
show more

Protocols

Supported network protocols
Supported network protocols
CSMA/CD, TCP/IP
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Grey
show more


Housing material
Housing material
Metal
show more


LED indicators
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
AC
show more


Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50/60 Hz
show more


Power consumption (typical)
Power consumption (typical)
3.53 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
10.88 BTU/h
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more


Package width
Package width
250 mm
show more


Package depth
Package depth
400 mm
show more


Package height
Package height
80 mm
show more


Package weight
Package weight
2 kg
show more

Sustainability

Sustainability compliance
Yes
show more

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
