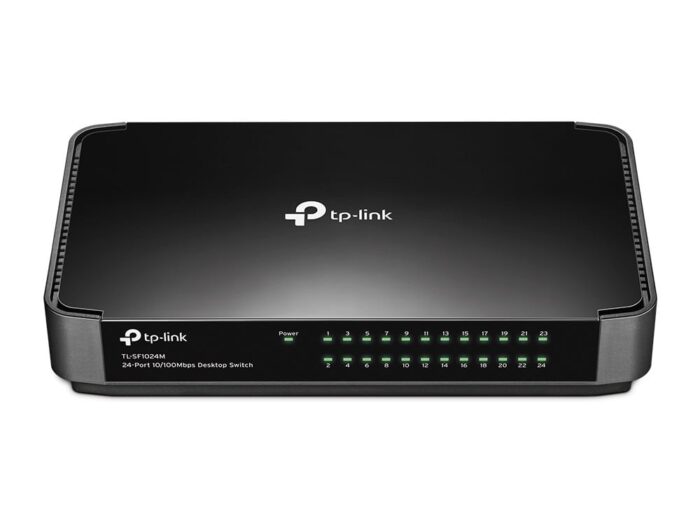

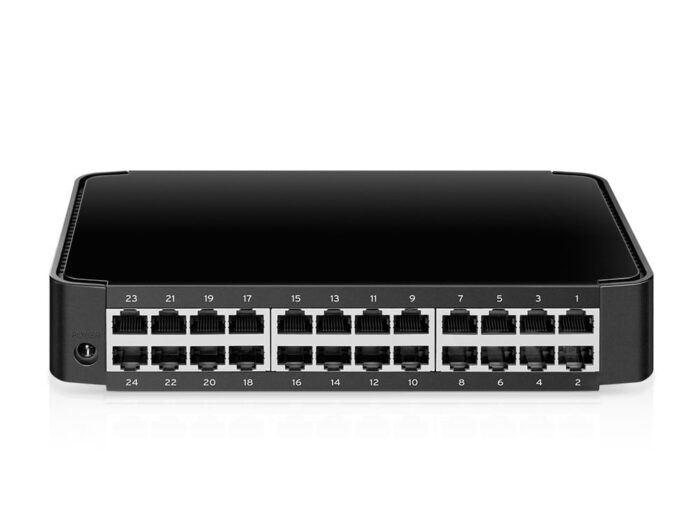

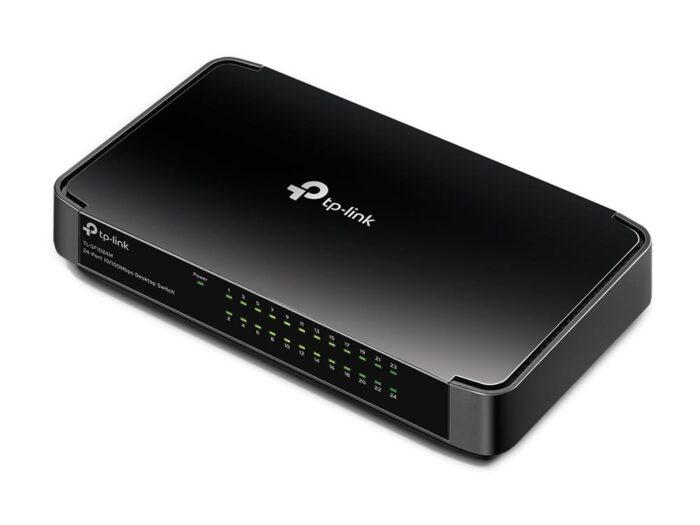

TP-Link TL-SF1024M 24-Port 10/100 Mbps Desktop Switch

The TP-Link TL-SF1024M is an advanced unmanaged switch crafted to improve your network's performance and capacity. Featuring 24 RJ-45 ports that support Fast Ethernet (10/100 Mbps), this switch is perfect for enhancing network capabilities in small to medium-sized business settings. Each port functions in full duplex mode, enabling simultaneous data transmission and reception, effectively doubling the communication capacity compared to half-duplex systems.

This switch comes with a robust MAC address table that can accommodate up to 8000 entries, optimizing network traffic flow and significantly reducing transmission delays to enhance overall efficiency. It supports essential networking standards, including IEEE 802.3, IEEE 802.3u, and IEEE 802.3x, ensuring compatibility with a wide range of network devices and protocols. The device operates on a DC input voltage of 9V, making it suitable for various settings without requiring extensive power resources.

The compact design of the TP-Link TL-SF1024M allows for easy placement on a desk or convenient mounting in a rack, providing setup and deployment flexibility. This switch is notable for its ability to increase network capacity and improve data transfer rates, making it an effective solution for businesses aiming to enhance their networking infrastructure. With TP-Link's reputation for reliability and performance, the TL-SF1024M is an excellent choice for those seeking to optimize their network operations.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
show more

Network

Networking standards
Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more

Protocols

Supported network protocols
Supported network protocols
CSMA/CD
show more

Design

Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

AC input voltage
AC input voltage
220 V
show more


AC input frequency
50 Hz
show more


DC input voltage
9 V
show more


Input current
0.6 A
show more


Power consumption (typical)
Power consumption (typical)
3.68 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
222 mm
show more


Depth
Depth
146 mm
show more


Height
Height
25 mm
show more

Packaging content

Quick start guide
Quick start guide
Yes
show more
