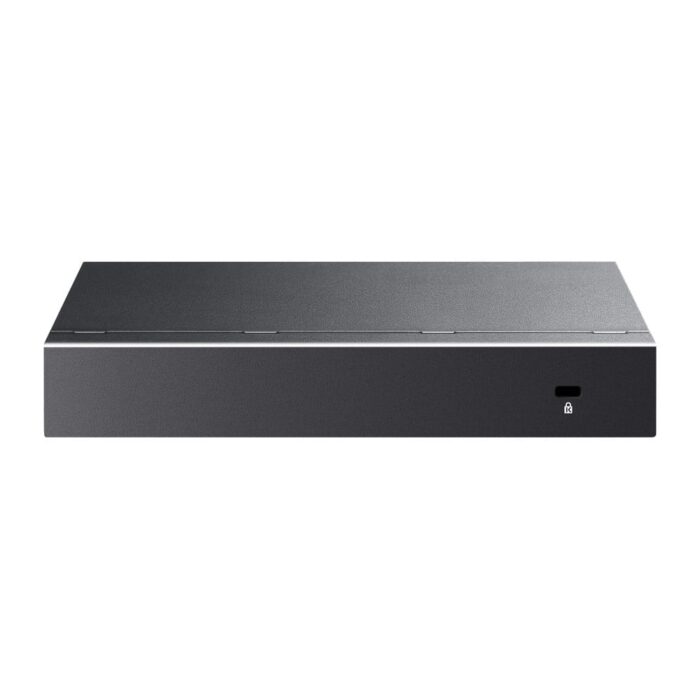

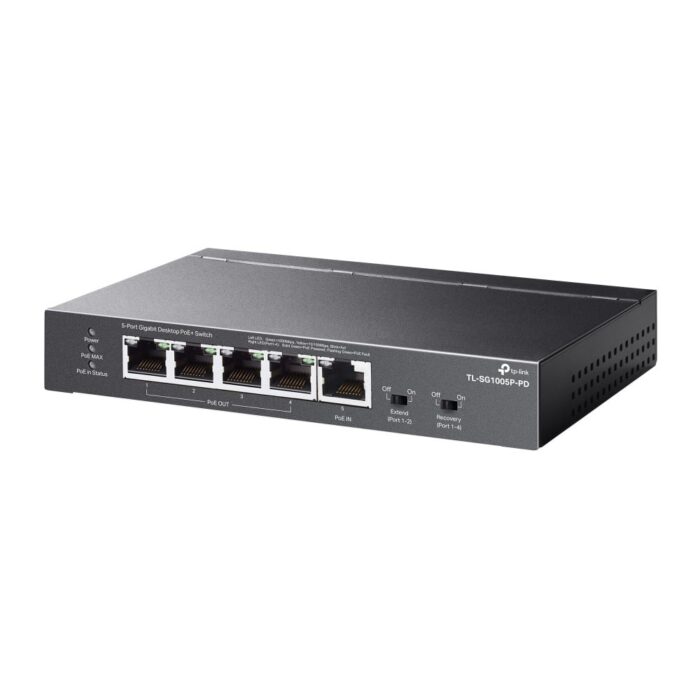

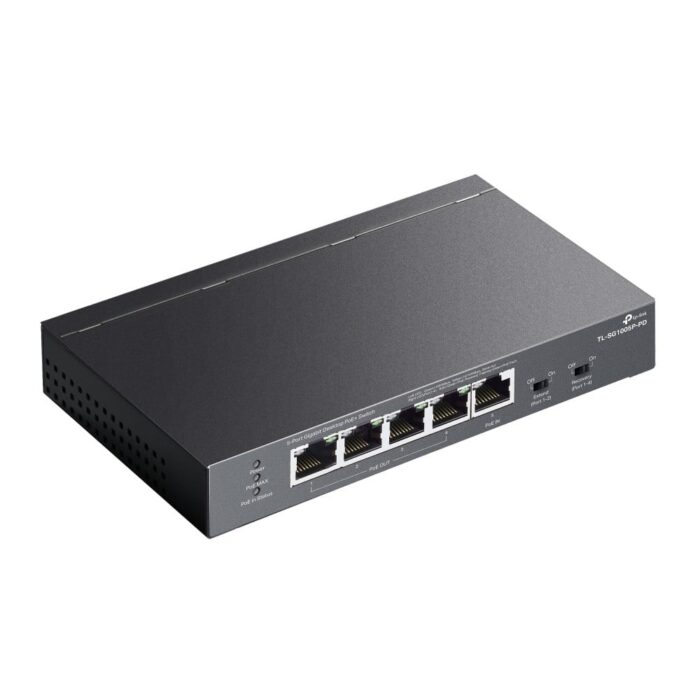

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop Switch with 1-Port PoE++ In and 4-Port PoE+ Out

The TP-LINK TL-SG1005P-PD is a high-performance 5-port Gigabit desktop switch designed to improve network connectivity in small offices or home settings. It features five Gigabit Ethernet ports, offering fast data transfer and increased network capacity. One of these ports supports PoE++ input, allowing the switch to receive both power and data through a single Ethernet cable, while the other four ports provide PoE+ output. This makes it perfect for powering PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points, eliminating the need for additional power supplies.

The TP-LINK TL-SG1005P-PD is designed for simplicity, featuring a plug-and-play setup that does not require configuration for installation. This greatly simplifies the deployment process, making it user-friendly for individuals with varying levels of technical expertise. Additionally, the switch includes energy-efficient technology that intelligently reduces power consumption based on cable length and connection status, helping to lower operational costs and promote a more sustainable network environment.

Its compact design allows the TP-LINK TL-SG1005P-PD to be easily placed on a desk or mounted on a wall, providing flexibility in various installation scenarios. This switch excels in its category by offering a robust solution for expanding network capabilities while efficiently powering multiple devices. The combination of high-speed performance, user-friendliness, and energy efficiency makes the TL-SG1005P-PD an excellent choice for those looking to enhance their network infrastructure.

Management features

Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
Yes
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more


MAC address auto-aging supported
Yes
show more


MAC address auto-learning supported
Yes
show more


Flow control support
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Auto-negotiation
Yes
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


Forwarding rate
7.44 Mpps
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more

Security

IGMP snooping
Yes
show more

Design

Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Number of fans
Number of fans
0 fan(s)
show more


Wall mountable
Wall mountable
Yes
show more

Performance

Fanless
Yes
show more

Power

Power source
Power source
PoE
show more


Power supply included
Power supply included
No
show more


Power consumption (max)
Power consumption (max)
68.59 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
5
show more


Total Power over Ethernet (PoE) budget
66 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
-30 – 70 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
233.206 BTU/h
show more

Weight & dimensions

Width
Width
158 mm
show more


Depth
Depth
101 mm
show more


Height
Height
25 mm
show more

Packaging content

User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
CE, FCC, RoHS
show more
