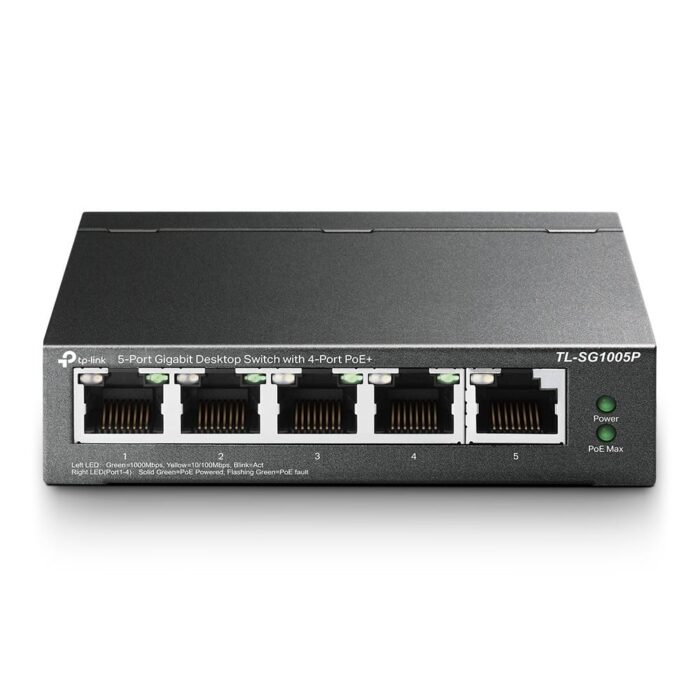

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+

The TP-Link TL-SG1005P is an advanced unmanaged switch designed to enhance your network's performance and efficiency. Featuring five RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000), this switch significantly boosts network capacity, making it an ideal choice for both home and small office environments. The TP-Link brand is renowned for its reliable networking solutions, and the TL-SG1005P exemplifies this commitment to quality and performance.

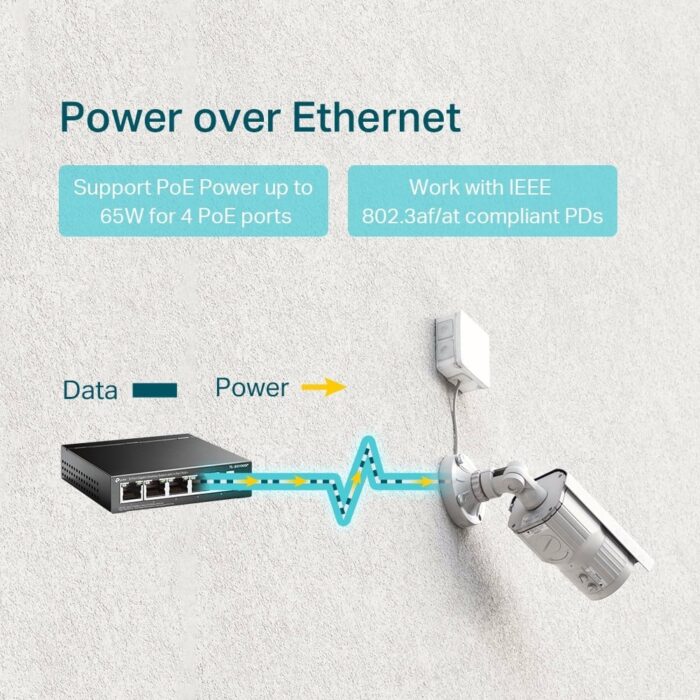

One of the standout features of the TP-Link TL-SG1005P is its Power over Ethernet (PoE) capability on four of its ports. This innovative technology allows the switch to deliver both electrical power and data through a single cable to PoE-enabled devices, such as IP cameras and VoIP phones, simplifying installation and reducing cable clutter. With a switching capacity of 10 Gbit/s and a MAC address table that can store up to 2000 entries, this switch ensures seamless data transmission even during peak usage times.

Compliant with several important networking standards, including IEEE 802.1p for Quality of Service (QoS), IEEE 802.3af for PoE, and IEEE 802.3x for flow control, the TP-Link TL-SG1005P enhances the overall reliability and efficiency of your network. Its plug-and-play design allows for easy setup without the need for management software, making it a practical solution for expanding your network capabilities. Trust in the TP-Link name for a robust and efficient networking experience.

Management features

Switch type
Switch type
Unmanaged
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
5
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.1p, IEEE 802.3af, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more


MAC address auto-aging supported
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more

Data transmission

Switching capacity
Switching capacity
10 Gbit/s
show more


MAC address table
MAC address table
2000 entries
show more


Store-and-forward
Yes
show more

Security

IGMP snooping
Yes
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 220 V
show more


AC input frequency
50 Hz
show more


Power consumption (max)
Power consumption (max)
63.31 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) ports quantity
4
show more


Total Power over Ethernet (PoE) budget
56 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
99.8 mm
show more


Depth
Depth
98 mm
show more


Height
Height
25 mm
show more

Packaging content

Cables included
AC
show more


Quick start guide
Quick start guide
Yes
show more


Manual
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
