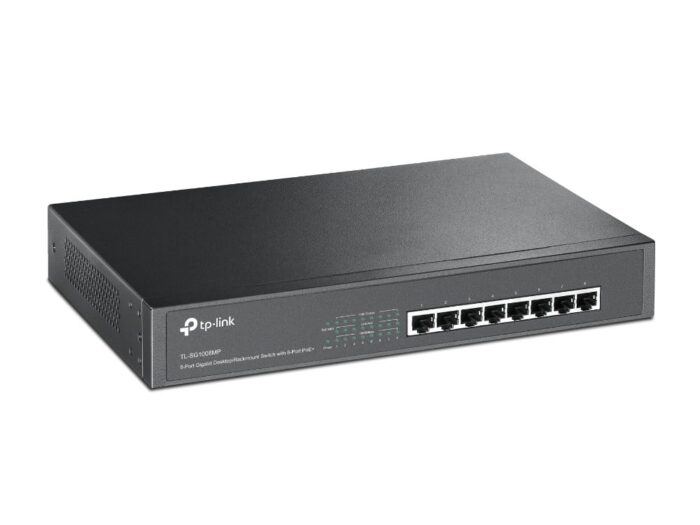

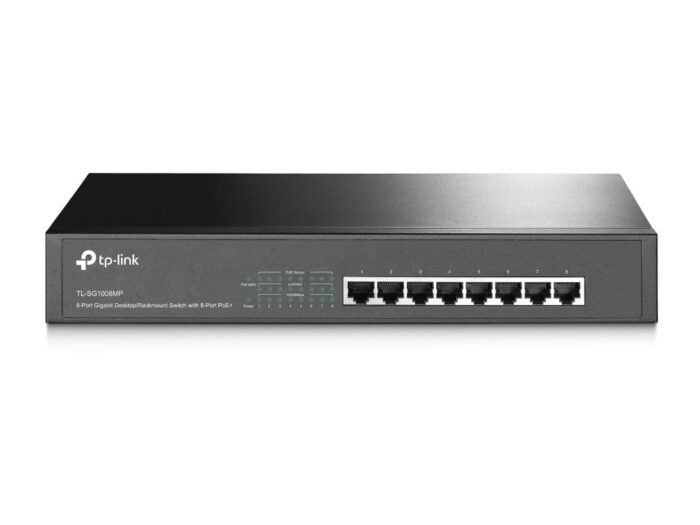

TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

The TP-Link TL-SG1008MP is an advanced unmanaged switch suitable for both desktop and rackmount applications, equipped with eight Gigabit Ethernet ports that support speeds of 10/100/1000 Mbps. Each port is capable of providing Power over Ethernet (PoE), complying with the IEEE 802.3af and IEEE 802.3at standards. This allows the switch to supply power and data through a single cable to PoE-enabled devices such as IP cameras, VoIP phones, and wireless access points, making it perfect for modern networking requirements.

The switch has a substantial MAC address table that can accommodate up to 4000 entries, ensuring efficient network management and connectivity. Its impressive switching capacity of 16 Gbps facilitates fast file transfers and smooth streaming of high-bandwidth data across the network, greatly enhancing productivity and user experience. Engineered to meet various networking standards, including IEEE 802.3x, it ensures reliable data transfer and performance.

The TP-Link TL-SG1008MP is a reliable solution for expanding network connections and deploying modern PoE devices in both business and home environments. Its rack-mounting capability provides flexibility in installation, making it suitable for various setups. This switch stands out in its category by combining high performance with ease of use, making it a preferred choice for users looking to enhance their network infrastructure.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
show more


10G support
10G support
No
show more


Auto-negotiation
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


MAC address table
MAC address table
4000 entries
show more


Store-and-forward
Yes
show more


Packet buffer memory
1.5 MB
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


Number of fans
Number of fans
1 fan(s)
show more

Performance

Mean time between failures (MTBF)
Mean time between failures (MTBF)
1 h
show more


MTBF (PoE)
1 h
show more


Commodity Classification Automated Tracking System (CCATS)
11
show more


Minimum system requirements
1
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
140.1 W
show more


Power consumption (max)
Power consumption (max)
144.4 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
492.6 BTU/h
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


User guide
Yes
show more

Technical details

Pallet height (air)
1 mm
show more


Pallet gross width
1 mm
show more


Pallet gross length
1 mm
show more


Pallet gross weight (sea)
1 g
show more


Master (outer) cases per pallet (sea)
1 pc(s)
show more


Shipping (inner) case gross weight
1 g
show more


Pallet height (sea)
1 mm
show more


Products per pallet (sea)
11 pc(s)
show more


Products per pallet (air)
1 pc(s)
show more


Master (outer) cases per pallet (air)
11 pc(s)
show more


Shipping (inner) case net weight
1 g
show more


Shipping (inner) case length
1 mm
show more


Shipping (inner) case width
1 mm
show more


Products per shipping (inner) case
1 pc(s)
show more


Master (outer) cases per pallet layer
1 pc(s)
show more


Pallet gross weight (air)
1 g
show more


Layers per pallet (sea)
1 pc(s)
show more


Layers per pallet (air)
1 pc(s)
show more


Shipping (inner) case height
1 mm
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
