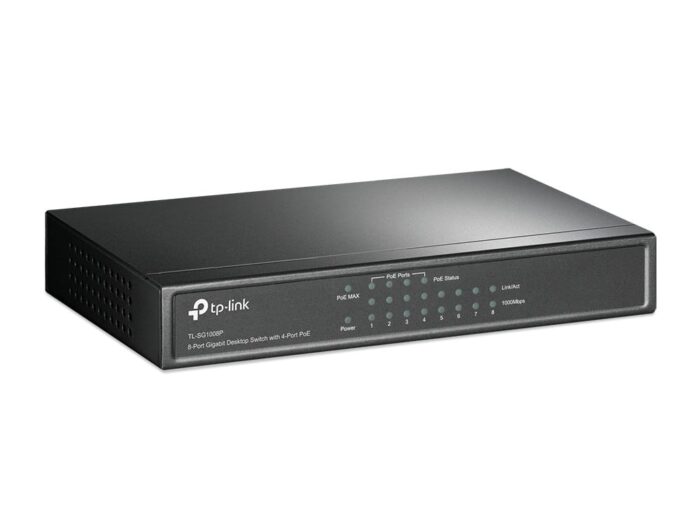

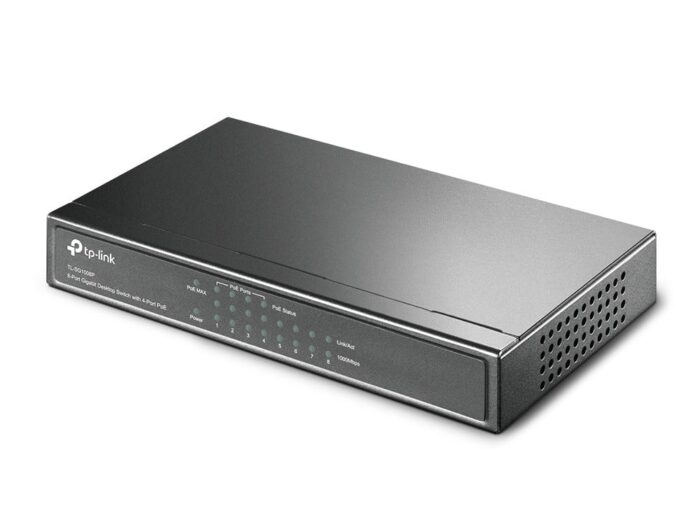

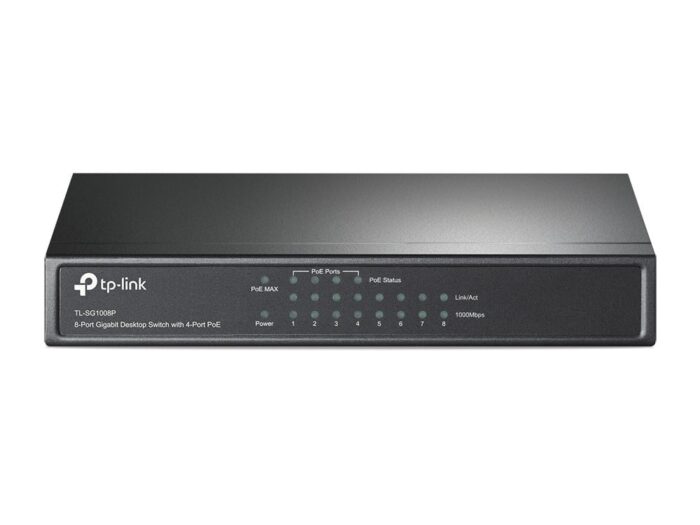

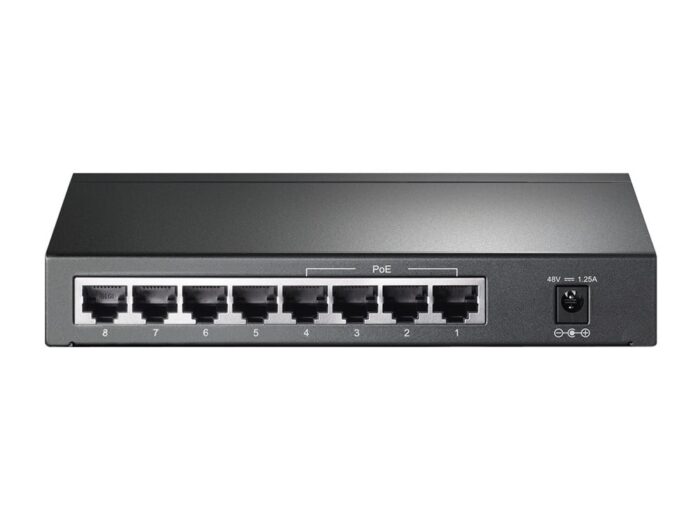

TP-Link TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE+

The TP-Link TL-SG1008P is a sophisticated unmanaged switch designed to enhance network connectivity in both home and small office settings. It features eight Gigabit Ethernet ports (10/100/1000), ensuring efficient management of large data transfers, making it ideal for users needing high-speed network connections. This model is engineered to provide a seamless experience, with a switching capacity of 16 Gbit/s and a MAC address table that can store up to 4800 entries, optimizing network performance.

A key feature of the TL-SG1008P is its Power over Ethernet (PoE) capability available on four of its ports. This technology allows network cables to deliver electrical power to devices like IP cameras and wireless access points, eliminating the need for additional power sources and simplifying installation. The switch adheres to the IEEE 802.3af/at PoE standard, ensuring compatibility with a wide array of PoE devices, making it a versatile solution for various networking needs.

Operating in full duplex mode, the TP-Link TL-SG1008P enables simultaneous data transmission and reception, effectively doubling the network's bandwidth. This feature, along with its reliable performance and durable design, makes it a superior choice among unmanaged switches. The unit requires a DC input voltage of 48 V and includes a DC-in jack for easy power connectivity, serving as an effective tool for expanding network capabilities without compromising on quality.

Management features

Switch type
Switch type
Unmanaged
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
8
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
8
show more


Fiber optic connector
Fiber optic connector
LuxCis
show more


Compatible memory cards
Compatible memory cards
MMC Mobile
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.11j
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
100BASE-T
show more


Cable types supported
Cat6a
show more


Full duplex
Full duplex
Yes
show more


Flow control support
Yes
show more


Ethernet LAN data rates
Ethernet LAN data rates
1000 Mbit/s
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Virtual LAN features
IP subnet–based VLAN
show more


VLAN mapping type
2:2 VLAN Mapping
show more

Optical fiber

Fiber ethernet cabling technology
40GBASE-LR4
show more

Data transmission

Switching capacity
Switching capacity
16 Gbit/s
show more


MAC address table
MAC address table
4800 entries
show more


Store-and-forward
Yes
show more

Security

DHCP features
DHCPv6 client
show more


MAC address entries
Blackhole MAC address entries
show more


Queue scheduling algorithms
SP
show more


Authentication
Auto VLAN
show more


Security algorithms
Security algorithms
HTTPS
show more


Authentication type
Authentication type
HWTACACS
show more

Protocols

Routing protocols
IP
show more


IPv4 & IPv6 features
IPv6 Telnet
show more

Design

Rack mounting
Rack mounting
No
show more


Product colour
Product colour
Hazelnut
show more


Housing material
Housing material
Polymer
show more


LED indicators
Error
show more


Airflow direction
Back-to-front airflow
show more

Power

Power supply included
Power supply included
Yes
show more


Number of power supply units
1
show more


DC input voltage
48 V
show more


Input current
1.25 A
show more


Power consumption (typical)
Power consumption (typical)
53 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet (PoE) type supported
Active PoE
show more


Power over Ethernet (PoE) ports quantity
4
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
171 mm
show more


Depth
Depth
98 mm
show more


Height
Height
27 mm
show more

Packaging content

Cables included
AC
show more


User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Sustainability

Sustainability certificates
ENERGY STAR
show more

Certificates

Certification
CE, FCC, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
