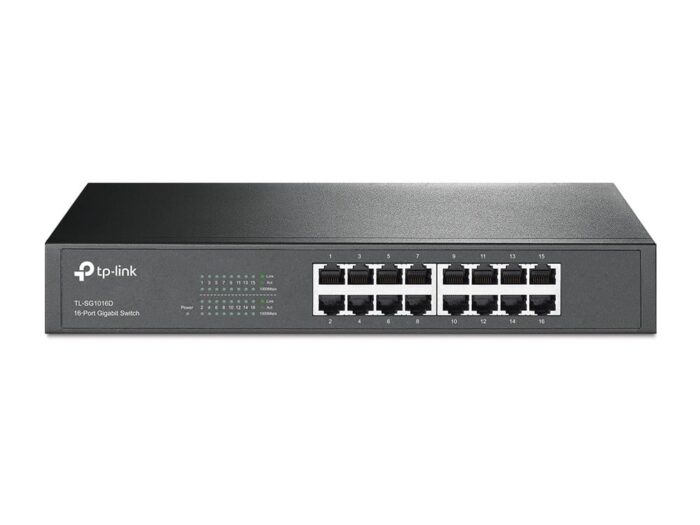

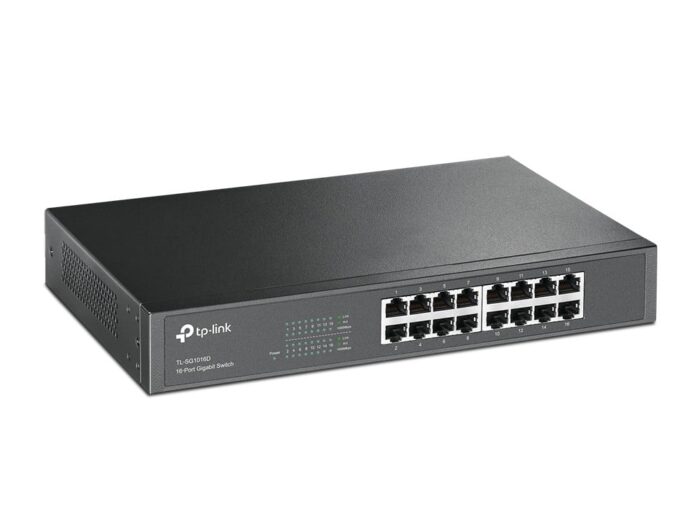

TP-Link TL-SG1016D 16-Port Gigabit Switch

The TP-Link TL-SG1016D is an advanced unmanaged switch crafted for Layer 2 switching, offering a powerful solution for high-speed networking requirements. Equipped with 16 RJ-45 Ethernet ports that support Gigabit Ethernet (10/100/1000), this switch is perfect for settings that require fast data transfer and dependable connectivity. Each port functions in full duplex mode, enabling simultaneous data transmission and reception, which greatly boosts overall network performance.

This switch features a robust MAC address table with 8000 entries and a significant switching capacity of 32 Gbit/s, ensuring efficient traffic management and enhanced data throughput. The TP-Link TL-SG1016D complies with essential networking standards such as IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, and IEEE 802.3x, offering broad compatibility with existing network infrastructures and making it a versatile option for diverse applications.

Designed for straightforward installation, the TP-Link TL-SG1016D supports rack mounting, which helps maintain an organized setup in data centers or server rooms, optimizing space and simplifying cable management. This switch is particularly well-suited for expanding network capacity in both professional and academic settings, making it a reliable choice for users seeking to enhance their network infrastructure with a high-performance solution.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Power connector
DC-in jack
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Rate limiting
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Link aggregation
Yes
show more


Broadcast storm control
Yes
show more


Flow control support
Yes
show more


VLAN support
VLAN support
Yes
show more


Number of VLANs
32
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Throughput
23.08 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
9000
show more


Packet buffer memory
0.5 MB
show more

Security

IGMP snooping
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
11.73 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
No
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


User guide
Yes
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
