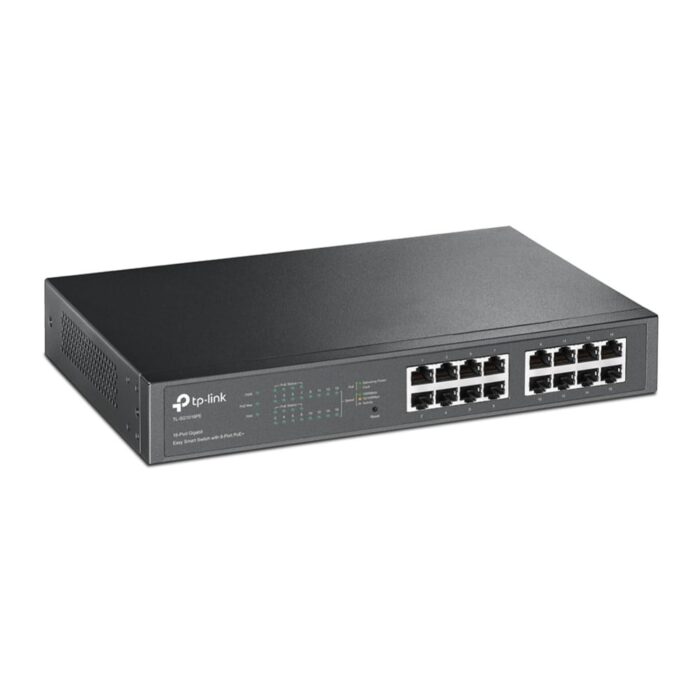

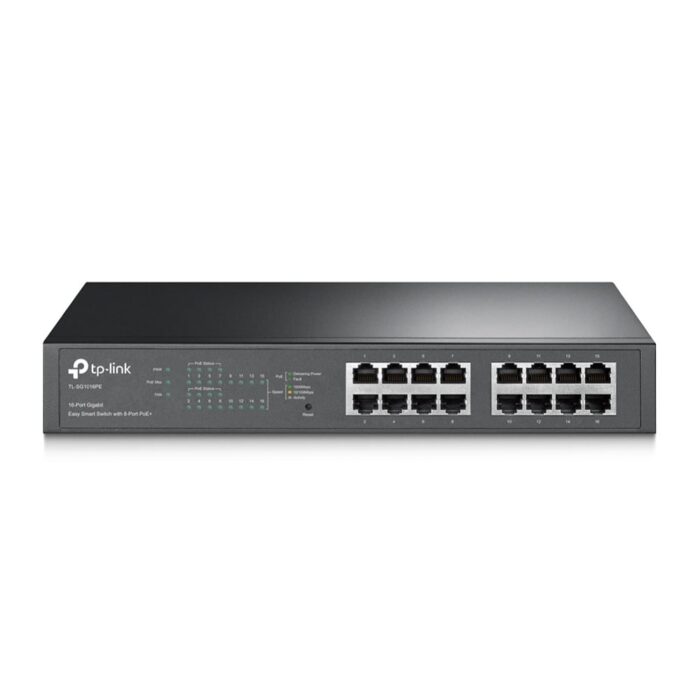

TP-Link TL-SG1016PE 16-Port Gigabit Easy Smart Switch with 8-Port PoE+

The TP-Link TL-SG1016PE is a managed switch designed for efficient Layer 2 network management. It features 16 RJ-45 Ethernet ports that support Gigabit Ethernet speeds (10/100/1000), significantly enhancing network capacity and efficiency. Eight of these ports include Power over Ethernet (PoE+) functionality, which enables the simultaneous transmission of power and data over a single cable, simplifying wiring and reducing installation costs.

The switch supports full duplex mode, allowing data to be transmitted and received simultaneously, effectively doubling your network's bandwidth. It has a robust MAC address table with a capacity for up to 8000 entries and a switching capacity of 32 Gbit/s, ensuring smooth data traffic without bottlenecks. Compliance with various networking standards such as IEEE 802.1Q, IEEE 802.1p, and multiple IEEE 802.3 standards ensures broad compatibility with existing networking equipment and protocols.

Designed for versatility, the TP-Link TL-SG1016PE can be rack-mounted, offering a tidy and secure installation option for server rooms and data centers. Its robust performance combined with PoE capability makes it an excellent choice for expanding network infrastructure. The ability to deliver both power and data through a single cable is a significant advantage, making it an ideal solution for modern networking needs.

Management features

Switch type
Switch type
Managed
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more


Web-based management
Web-based management
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
16
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more


Gigabit Ethernet (copper) ports quantity
16
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Cable types supported
Cat3, Cat4, Cat5, Cat5e, Cat6
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Auto-negotiation
Yes
show more


Rate limiting
Yes
show more


Link aggregation
Yes
show more


Flow control support
Yes
show more


Broadcast storm control
Yes
show more


VLAN support
VLAN support
Yes
show more


Virtual LAN features
Port-based VLAN, Tagged VLAN
show more


Number of VLANs
4000
show more

Data transmission

Switching capacity
Switching capacity
32 Gbit/s
show more


Throughput
23.8 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more

Security

IGMP snooping
Yes
show more


Loop protection
Yes
show more


Static port security
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Stackable
Stackable
No
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more


Number of fans
Number of fans
1 fan(s)
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (max)
Power consumption (max)
124.4 W
show more

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Power over Ethernet (PoE)
Yes
show more


Power over Ethernet plus (PoE+) ports quantity
8
show more


Power over Ethernet (PoE) power per port
30 W
show more


Total Power over Ethernet (PoE) budget
110 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
show more
