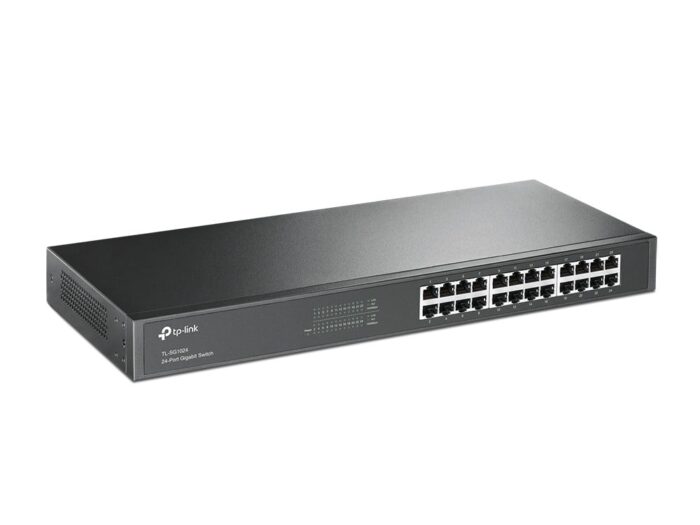

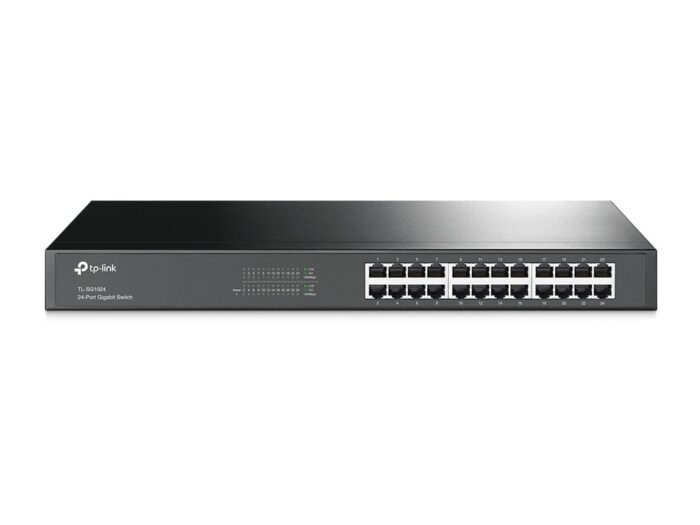

TP-Link TL-SG1024 24-Port Gigabit Switch

The TP-Link TL-SG1024 is an advanced unmanaged switch designed for Layer 2 switching, featuring 24 RJ-45 Ethernet ports that support Gigabit Ethernet speeds of 10/100/1000 Mbps. This device is engineered to facilitate full duplex communication, enabling simultaneous data transmission and reception, which significantly enhances overall network efficiency. With a robust MAC address table capable of storing up to 8000 entries and a substantial switching capacity of 48 Gbit/s, the TL-SG1024 ensures smooth and uninterrupted data flow across your network.

Complying with multiple networking standards, including IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, and IEEE 802.3u, this switch is versatile and suitable for a variety of networking environments. Its rack-mounting design allows for seamless integration into standard server racks, making it an ideal choice for both small and large-scale operations. The TL-SG1024 is particularly advantageous for businesses that require a reliable and efficient networking solution without the complexities of management features.

Manufactured by TP-Link, a leader in networking technology, the TL-SG1024 is built to handle high volumes of data traffic, making it a perfect fit for demanding business environments. Its ability to support a wide range of network protocols ensures compatibility with various systems, providing a flexible and future-proof networking solution. The combination of high performance and ease of use positions the TP-Link TL-SG1024 as a superior choice for organizations looking to optimize their network infrastructure.

Management features

Switch type
Switch type
Unmanaged
show more


Switch layer
Switch layer
L2
show more


Quality of Service (QoS) support
Yes
show more

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
Basic switching RJ-45 Ethernet ports quantity
24
show more


Basic switching RJ-45 Ethernet ports type
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
show more

Network

Networking standards
Networking standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
show more


10G support
10G support
No
show more


Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
show more


Port mirroring
Yes
show more


Full duplex
Full duplex
Yes
show more


Auto MDI/MDI-X
Auto MDI/MDI-X
Yes
show more


Rate limiting
Yes
show more


Flow control support
Yes
show more


Broadcast storm control
Yes
show more


Link aggregation
Yes
show more


Number of VLANs
32
show more

Data transmission

Switching capacity
Switching capacity
48 Gbit/s
show more


Throughput
35.7 Mpps
show more


MAC address table
MAC address table
8000 entries
show more


Store-and-forward
Yes
show more


Number of queues
4
show more


Jumbo frames support
Yes
show more


Jumbo frames
10000
show more


Packet buffer memory
4.1 MB
show more

Security

IGMP snooping
Yes
show more

Design

Rack mounting
Rack mounting
Yes
show more


Product colour
Product colour
Black
show more


LED indicators
Yes
show more

Power

Power supply included
Power supply included
Yes
show more


AC input voltage
AC input voltage
100 – 240 V
show more


AC input frequency
50 – 60 Hz
show more


Power consumption (typical)
Power consumption (typical)
14.19 W
show more

Operational conditions

Operating temperature (T-T)
Operating temperature (T-T)
0 – 40 °C
show more


Storage temperature (T-T)
Storage temperature (T-T)
-40 – 70 °C
show more


Operating relative humidity (H-H)
10 – 90%
show more


Storage relative humidity (H-H)
5 – 90%
show more


Heat dissipation
Heat dissipation
48.39 BTU/h
show more

Weight & dimensions

Width
Width
294 mm
show more


Depth
Depth
180 mm
show more


Height
Height
44 mm
show more

Packaging content

Cables included
AC
show more


Rack mount kit
Yes
show more


User guide
Yes
show more

Packaging data

Package type
Package type
Box
show more

Certificates

Certification
FCC, CE, RoHS
show more

Logistics data

Harmonized System (HS) code
85176990
